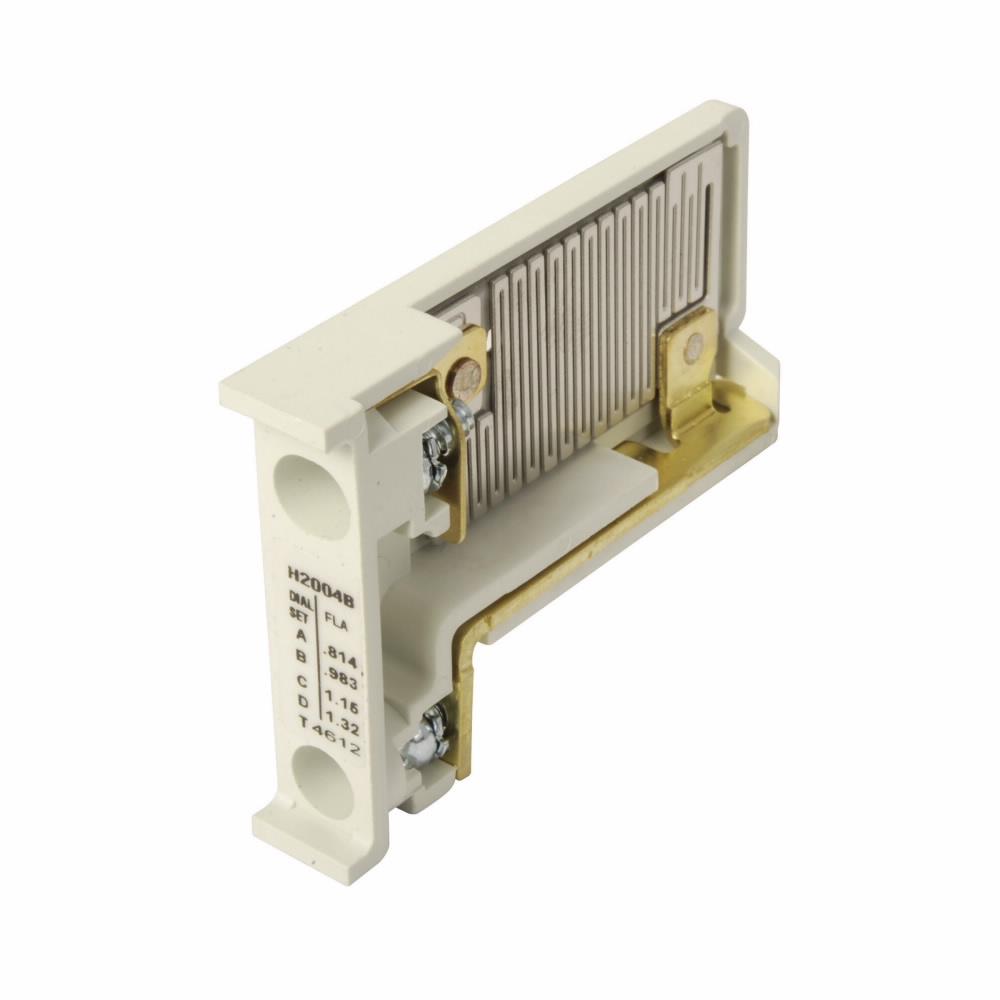

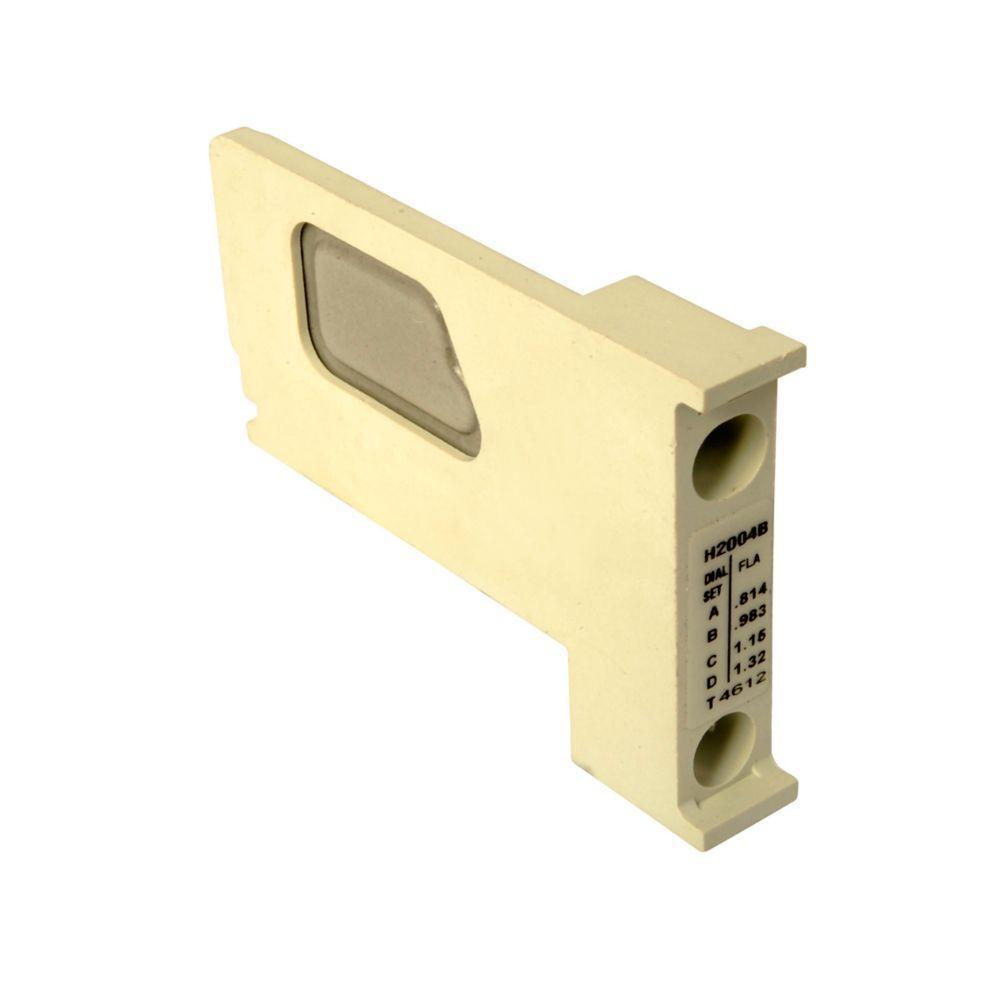

EATON H2010B-3 Freedom Definite Purpose Heater Coil Pack, 32/75 A, 3 Poles
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
-
BrandEATON
-
UPC782113967561
-
Manufacturer Part NumberH2010B-3
-
CountryUSA
-
Full Load Current6.75/8.17/9.58/11 A
-
Trip TypeClass 20/Standard
-
TypeDefinite Purpose
-
Amperage Rating32/75 A
-
SeriesFreedom
-
Number of Poles3
-
Enclosure TypeNEMA 00/0/1/2
- Manual or automatic reset
- NEMA/IEC design
- Dial positions A, B, C, D respectively
-
Alternative Part Number7374366
-
UNSPSC39122330
-
IDEA Index ID7374366
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed
-
Warranty1 year
-
Catalog
-
Specification Sheet
Recently Viewed
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
EATON BRAFGF120 Type BR AFCI/GFCI Advanced Combination Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole
EATON BR (1 in) and QB (bolt-on) dual purpose AF/GF circuit interrupters are available in 15 and 20 A ratings with a short body configuration for easier installation. A diagnostic LED trip code indicator is also included, which displays 6 different codes to assist in troubleshooting.
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.

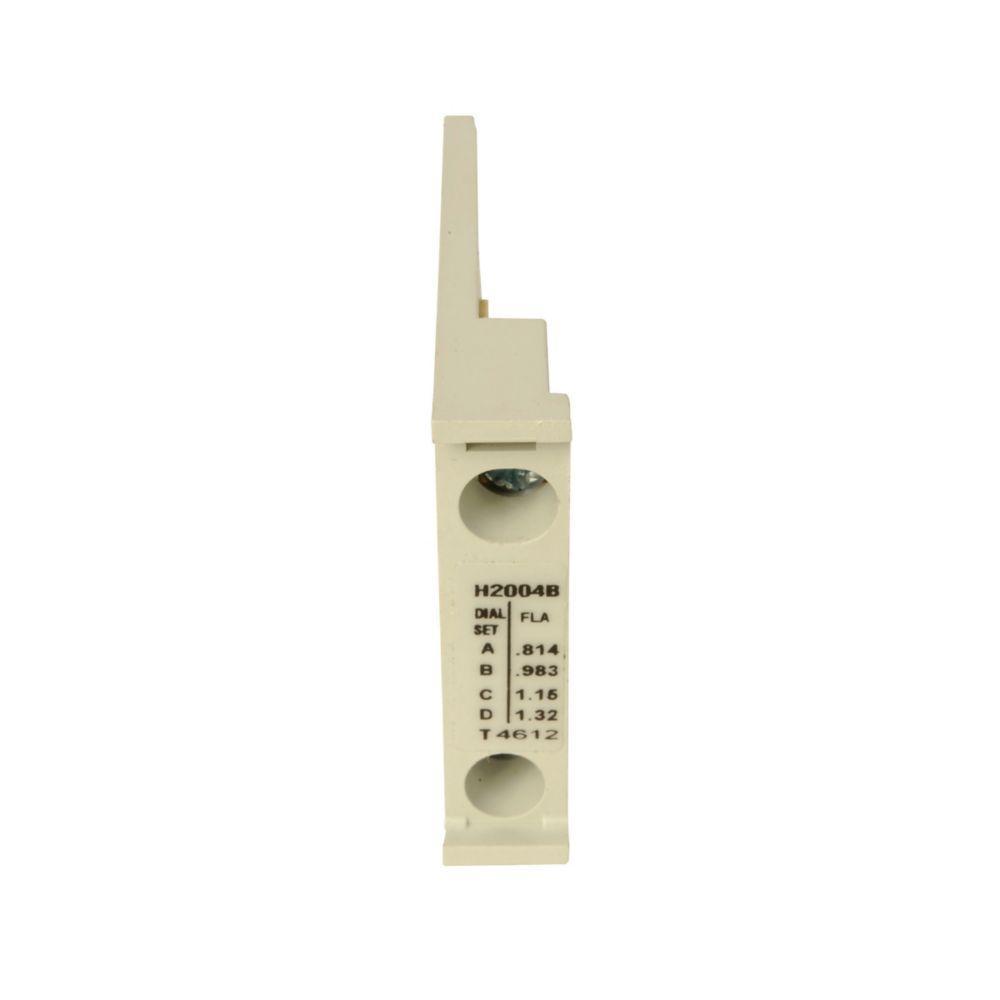

Each heater is identified by a catalog number stamped on one terminal. The heater application table indicates the range of full load motor current to which a given heater may be applied. Heaters should be selected on the basis of the actual full load current and service factor as shown on the motor nameplate or in the manufacturer's published literature. When motor and overload relay are in the same ambient and the service factor of the motor is 1.15 to 1.25, select heaters from the heater application table. If the service factor of the motor is 1 or there is no service factor shown or a maximum of 115% protection is desired, select one size smaller heater than indicated.
