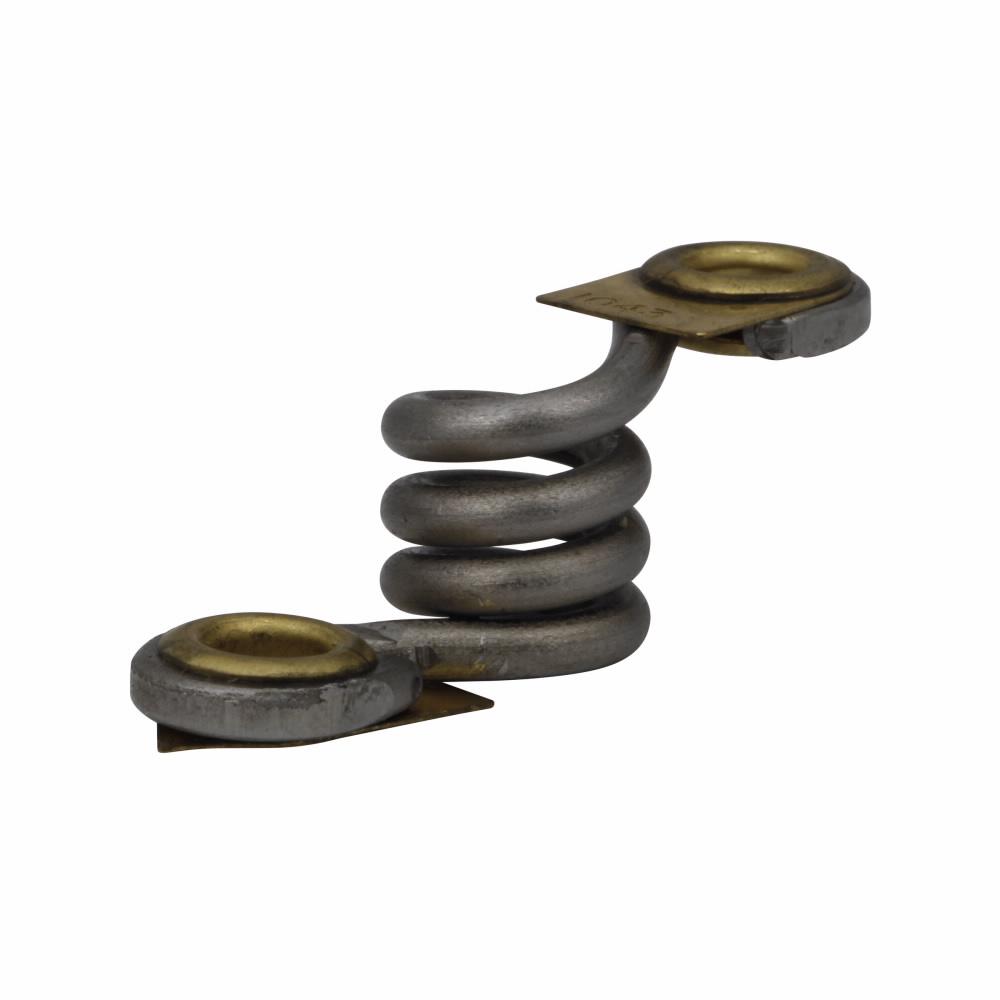

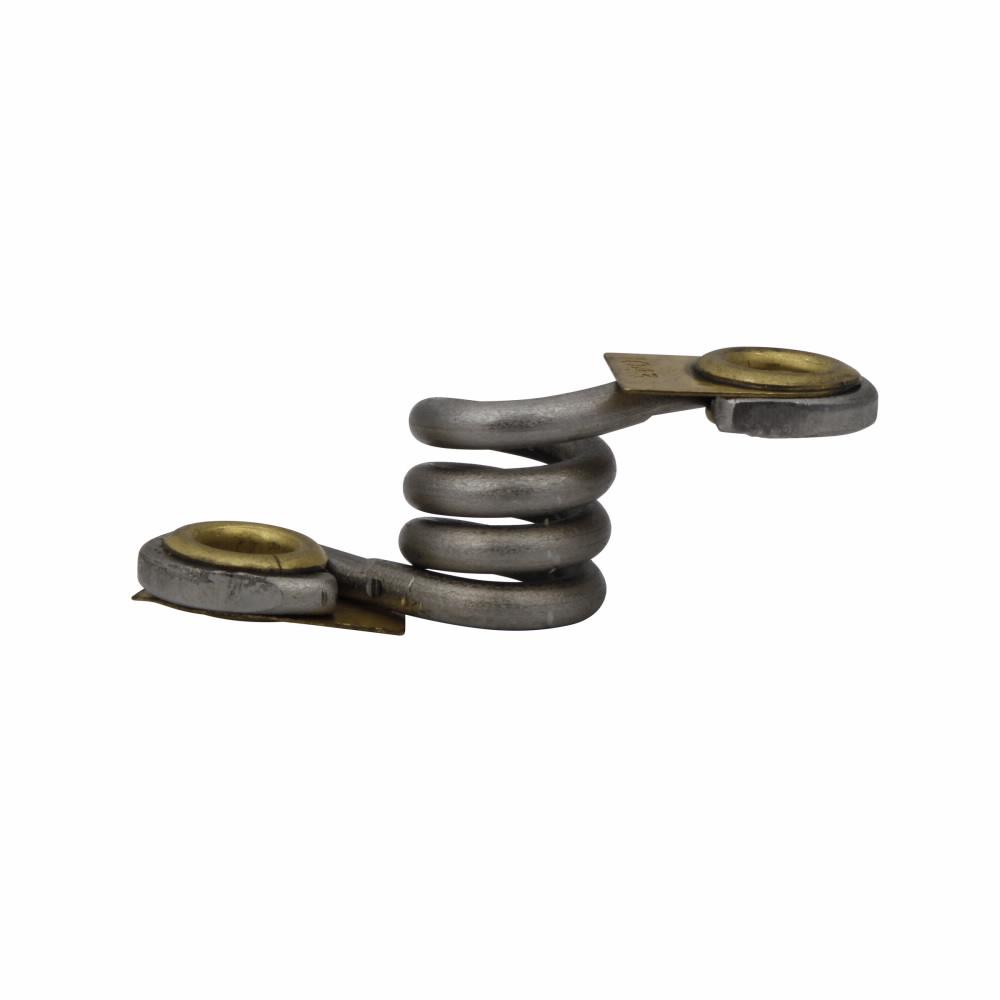

EATON H1043 Heater Coil
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
-
BrandEATON
-
UPC782113212784
-
Manufacturer Part NumberH1043
-
CountryUSA
-
Full Load Current19 to 27 A
-
Trip TypeStandard
-
Enclosure TypeNEMA 00/0/1/1.5/2/3/4
-
Alternative Part Number7345746
-
UNSPSC39122330
-
IDEA Index ID7345746
-
Includes5/16 in Hardware
-
Package DescriptionEACH
-
Standards/ApprovalsContact Manufacturer,Not Applicable
-
Specification Sheet
Recently Viewed
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
Each heater is identified by a catalog number stamped on one terminal. The heater application table indicates the range of full load motor current to which a given heater may be applied. Heaters should be selected on the basis of the actual full load current and service factor as shown on the motor nameplate or in the manufacturer's published literature. When motor and overload relay are in the same ambient and the service factor of the motor is 1.15 to 1.25, select heaters from the heater application table. If the service factor of the motor is 1 or there is no service factor shown or a maximum of 115% protection is desired, select one size smaller heater than indicated.
