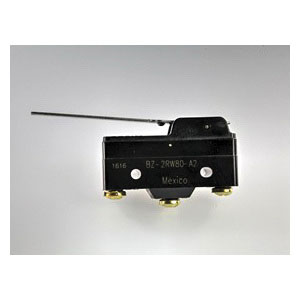

Honeywell MICRO SWITCH™ BZ-2RW80-A2-BG BZ Series Premium Standard Basic Switch, 250 VAC, 15 A, Lever Actuator, 1CO SPDT Contact, 1 Poles
MICRO SWITCH™ BZ/BA/BM/BE Series premium, large snap-action switches offer precision operation and sensitive differential travel. These Series meet various international agency requirements, and are often used for precision on/off applications, as well as end of limit, presence/absence, and manual operator interface functions. Configured options with BZ, BA, BM, and BE switches provide a wide variety of operating and interface characteristics. BZ/WZ/YZ switches are 15 A; BA/WA/YA switches are 20 A; BM/WM/YM switches are 22 A; and BE/WE/YE switches are 25 A.
-
BrandHoneywell
-
UPC661191711801
-
Manufacturer Part NumberBZ-2RW80-A2-BG
-
CountryUSA
-
Power Rating1/8 to 1/4 hp
-
Closed Contact Resistance100000 mOhm
-
Frequency Rating50/60 Hz
-
TypePremium Standard
-
Connection TypeThread
-
Contact Configuration1CO SPDT
-
Contact Rating15 A at 250 VAC
-
ActionMaintained/Momentary
-
ActuatorLever
-
Voltage Rating250 V AC
-
Amperage Rating15 A
-
SeriesBZ Series
-
Number of Poles1
-
Size0.69 in H x 1.94 in W
-
Operating Temperature-55 to 85 deg C
- 0.7 N operating force
- 0.14 N minimum release force
- 5.56 mm minimum over travel
- 0.18 mm maximum differential travel
- 19.1 mm operating position
- 63.5 mm actuator length
-
UNSPSC39122213
-
Standards/ApprovalsCE Marked|CSA Certified|RoHS Compliant|UL Listed
-
