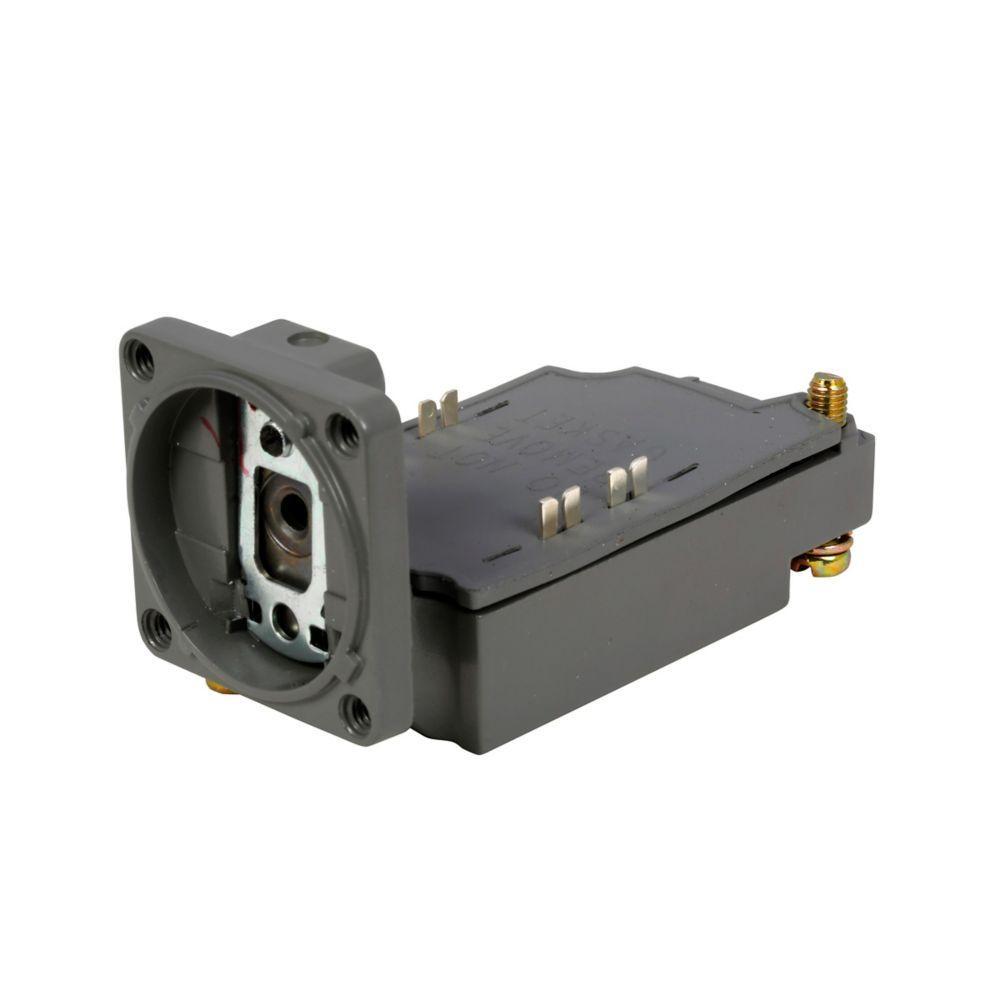

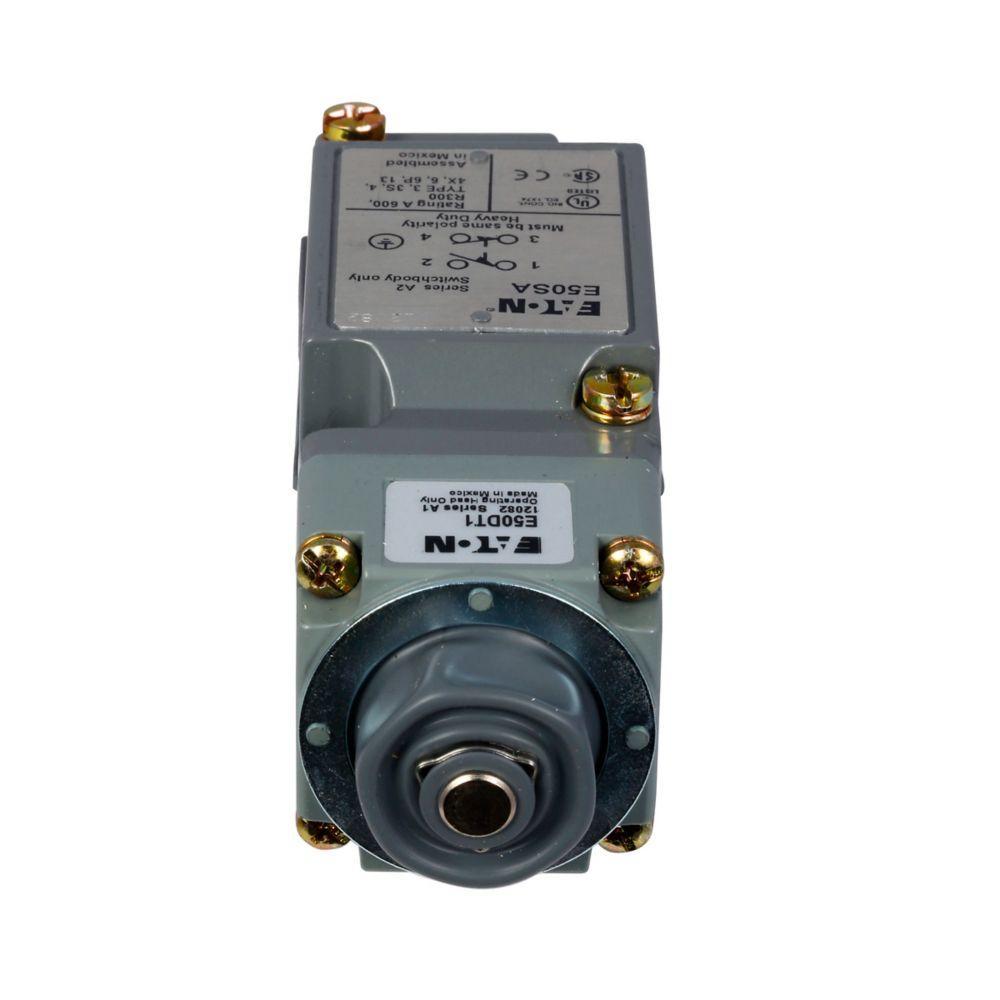

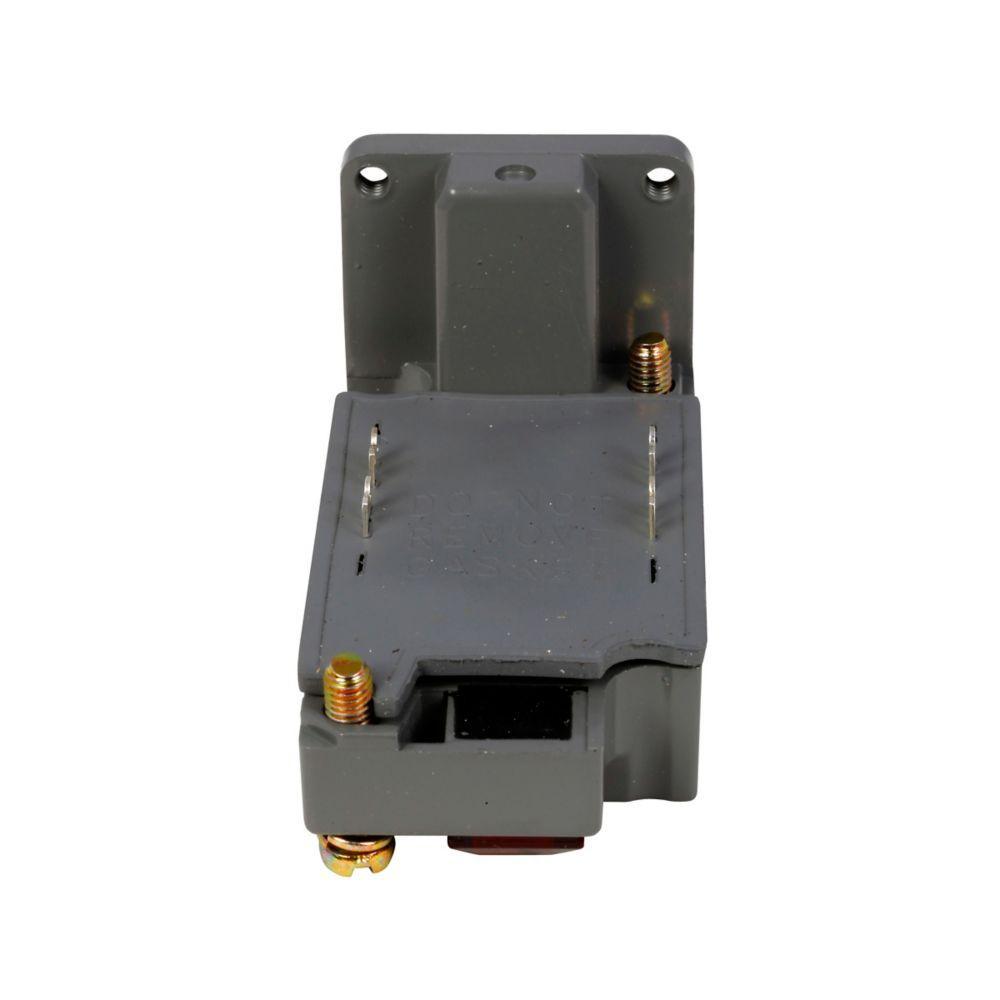

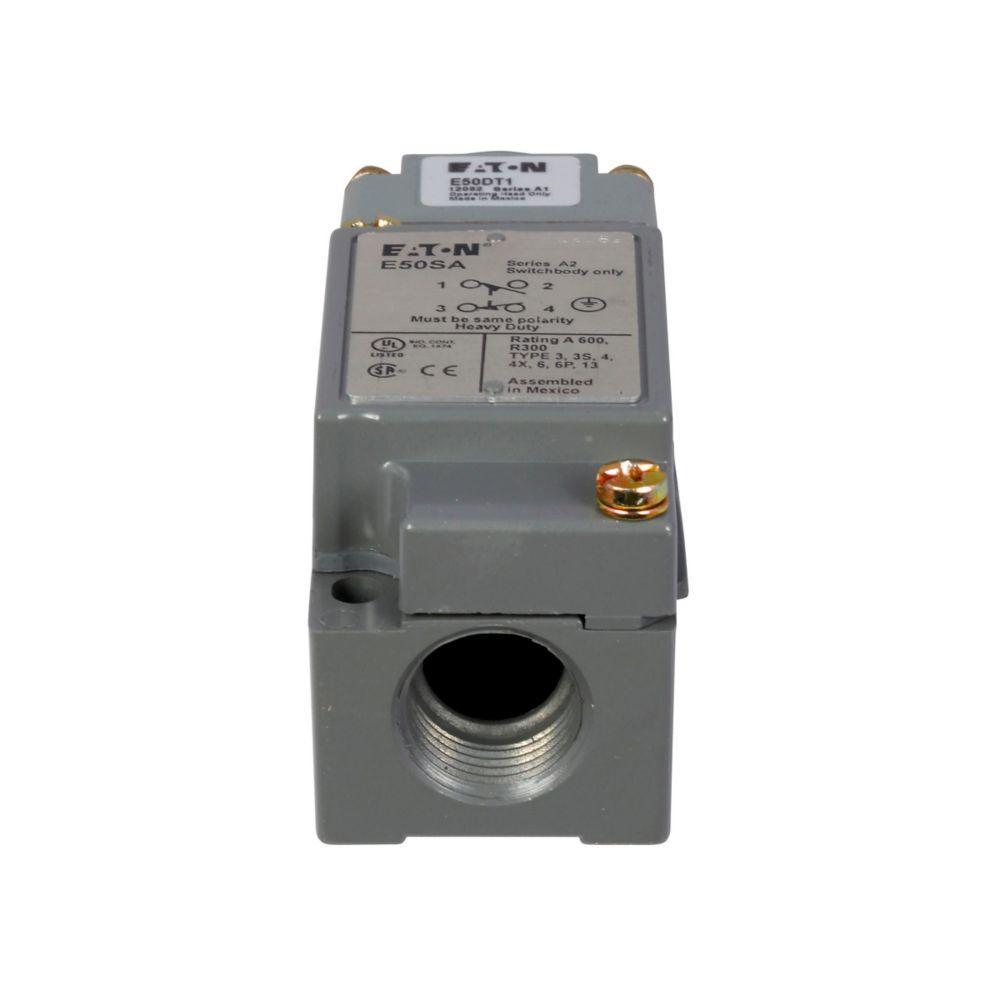

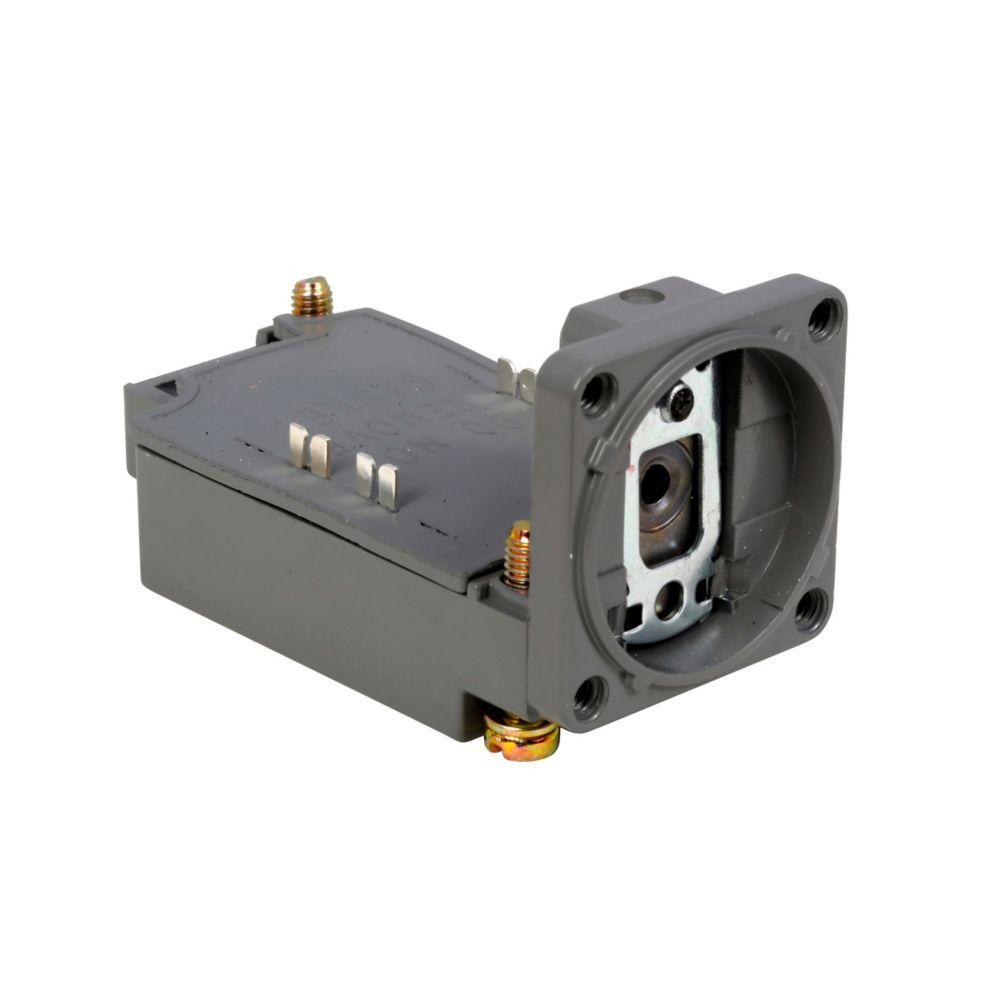

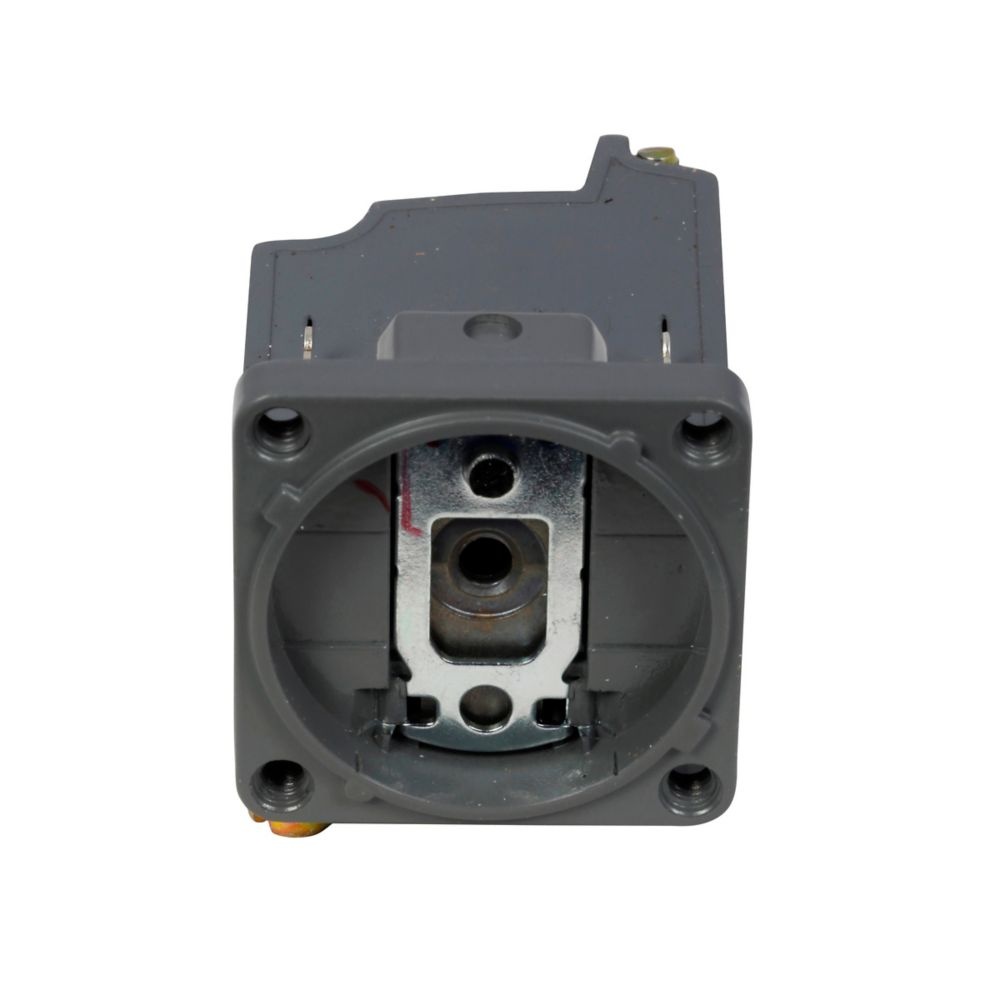

EATON E50SA 1-Pole Heavy Duty Plug-In Limit Switch Body, 1NO-1NC Contact, For Use With E50 Series Heavy Duty Plug-In Limit Switch, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure
Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
-
BrandEATON
-
UPC782113290676
-
Manufacturer Part NumberE50SA
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
MaterialDie Cast Zinc
-
Type1-Pole Heavy Duty Plug-In
-
Contact Configuration1NO-1NC
-
Contact Rating10 A at 12 V AC, 1 A at 125 V DC
-
SeriesE50
-
Dimensions4-1/2 in L x 3-1/4 in W x 1-3/4 in H
-
Enclosure TypeNEMA 1/3/3S/4/4X/6/6P/13/IP67
-
Suitable For Use WithE50 Series Heavy Duty Plug-In Limit Switch
- Without indicating light
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 49A973 |
-
Alternative Part Number7356016
-
UNSPSC39122213
-
IDEA Index ID7356016
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked
-
Warranty1 year
-
Specification Sheet
