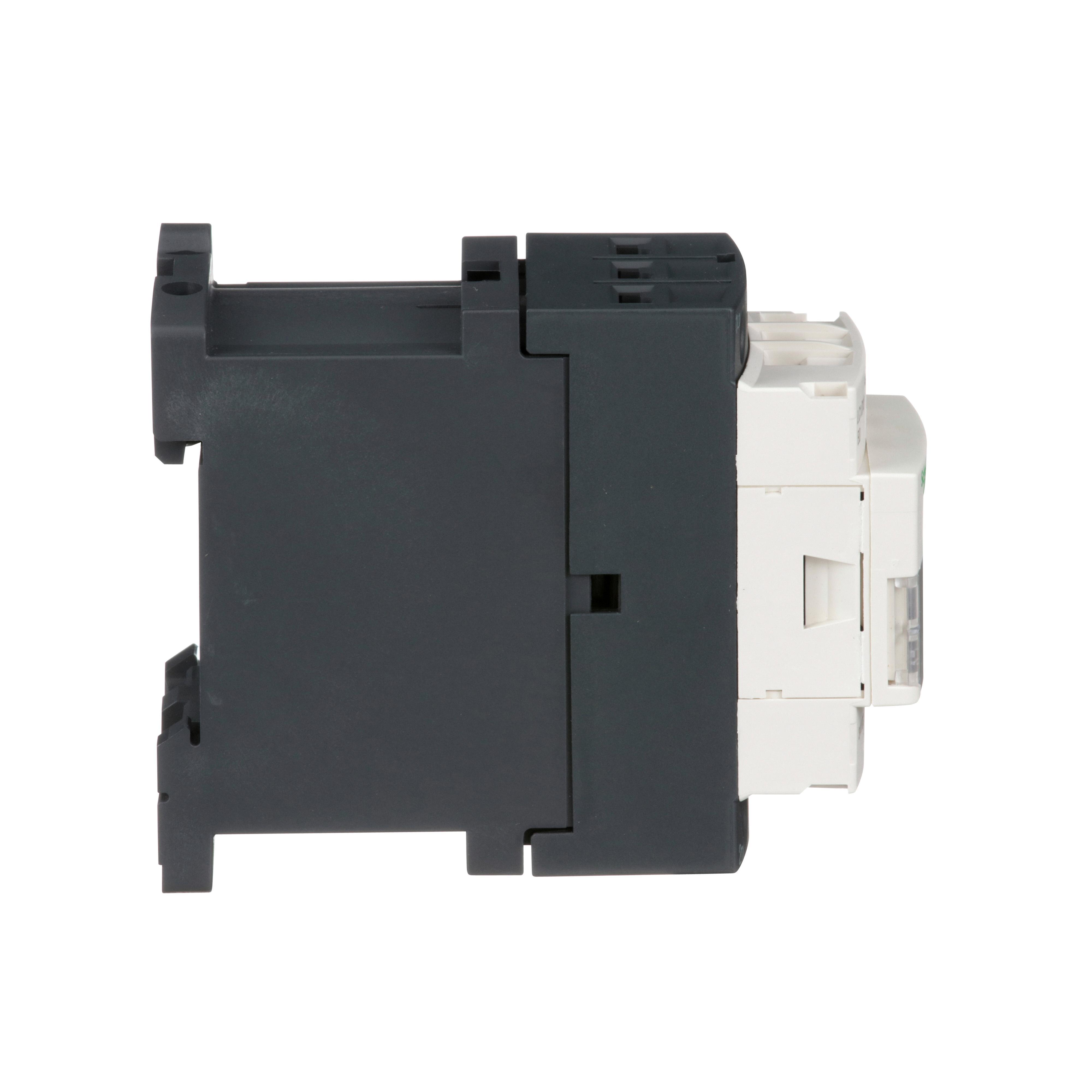

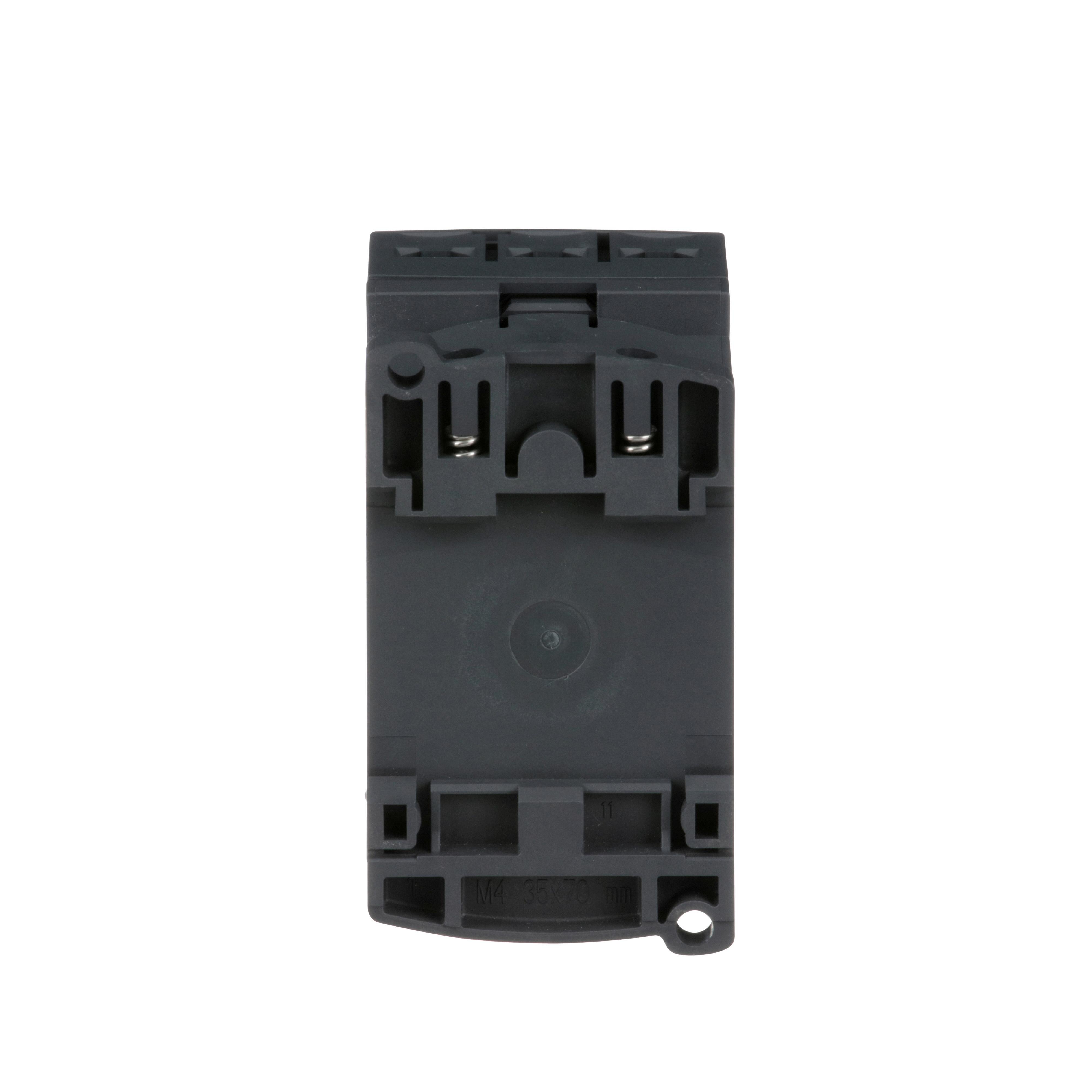

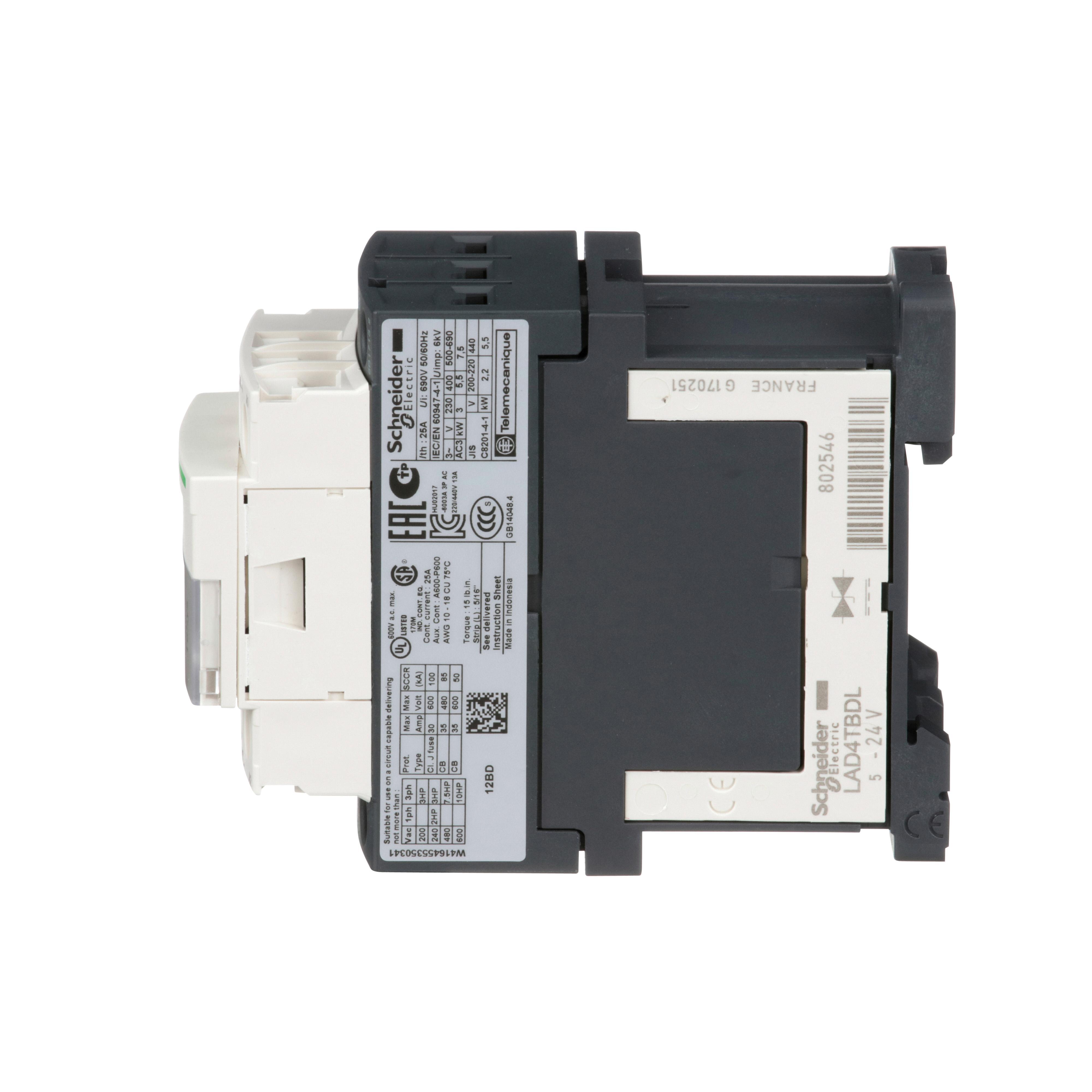

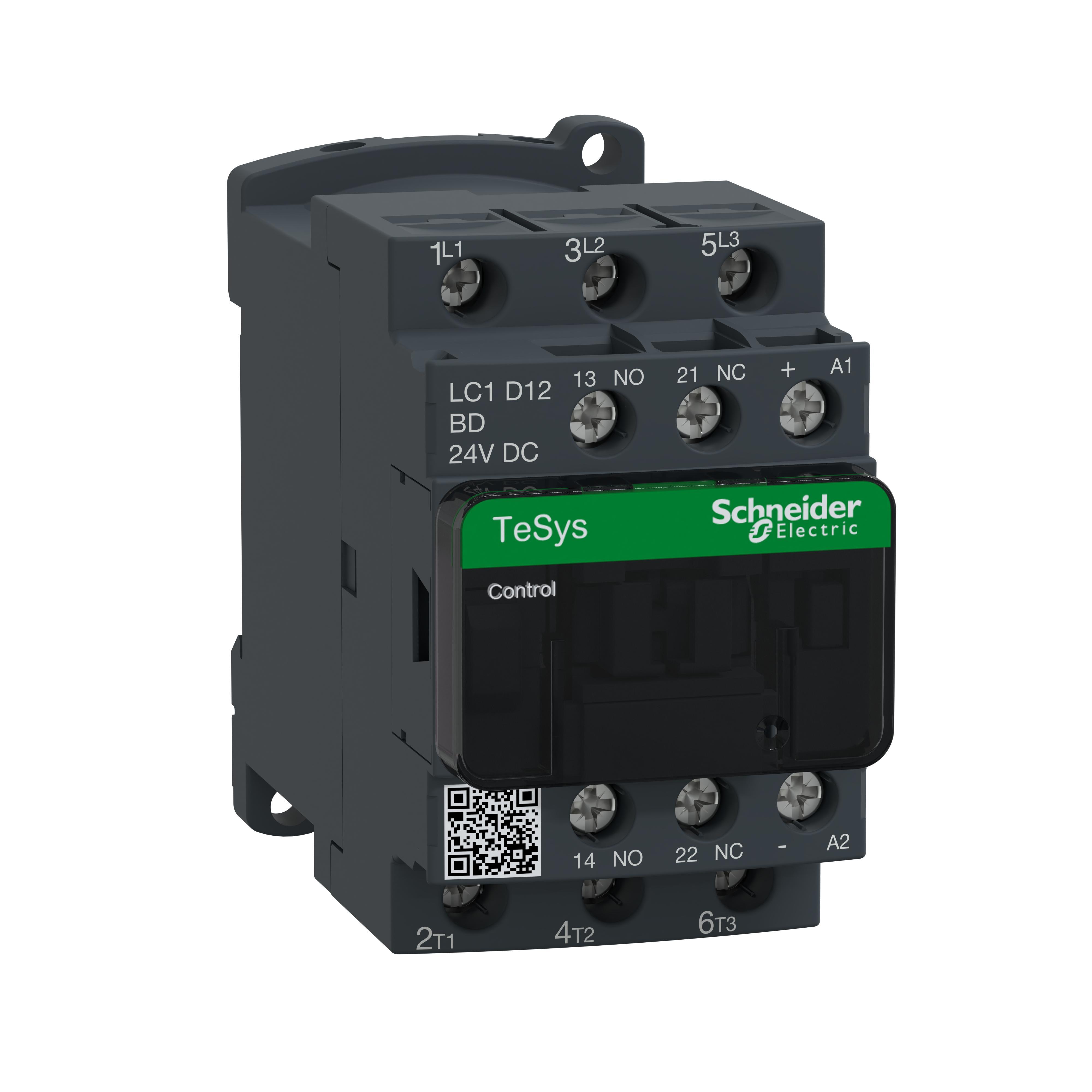

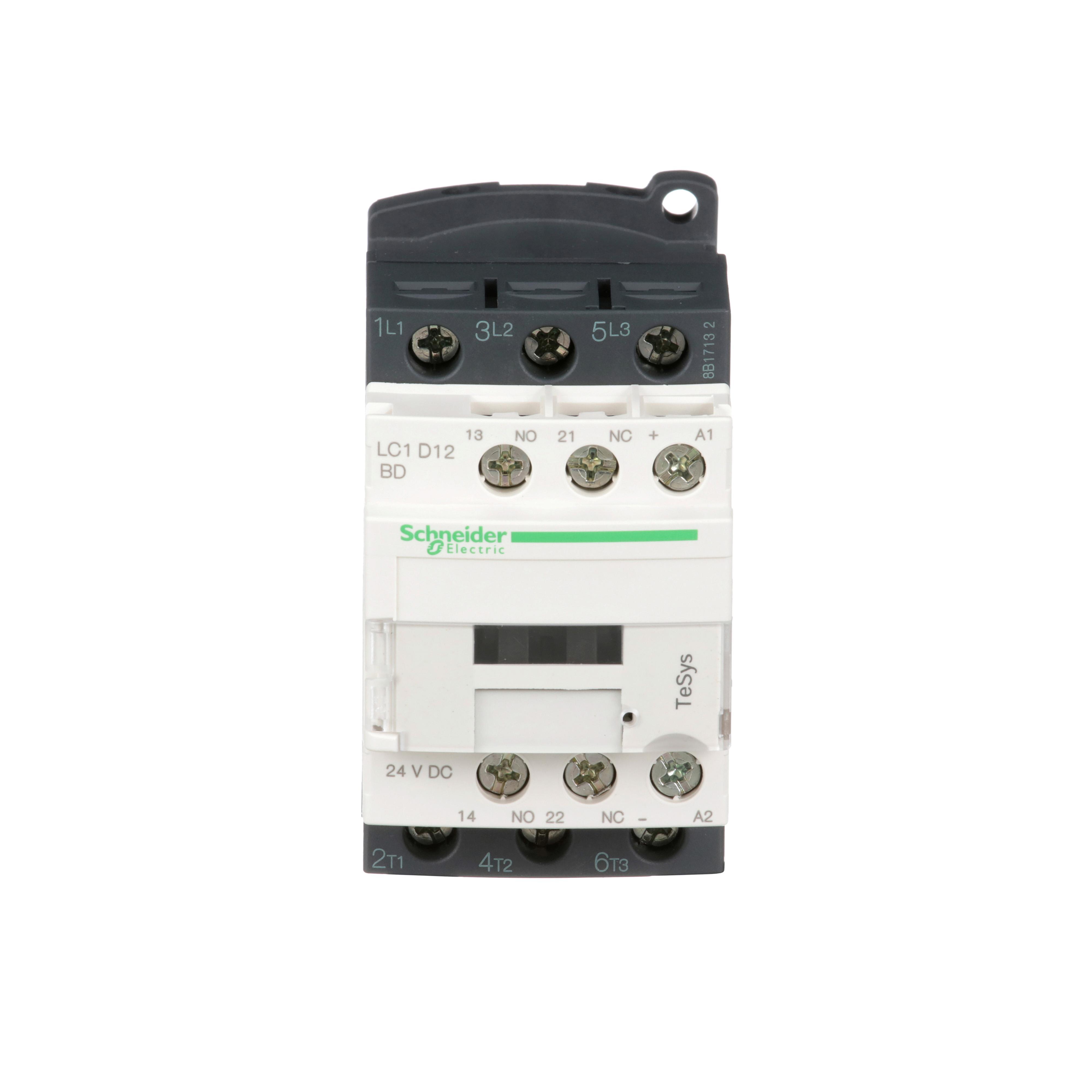

Schneider Electric Square D™ TeSys™ D LC1D12BD Direct On-Line Standard IEC Contactor, 690 V AC, 24/300 V DC V Coil, 12/25 A, 3NO Contact, 3 Poles
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 3HP at 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC and 10HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 30A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.07 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
-
BrandSchneider Electric
-
UPC785901207245
-
Manufacturer Part NumberLC1D12BD
-
CountryUSA
-
Terminal TypeScrew Clamp
-
Maximum Load Current12/25 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating5.4 W
-
Coil Voltage690 V AC, 24/300 V DC
-
TypeDirect On-Line Standard
-
Connection TypeScrew Clamp
-
Contact Configuration3NO
-
Mounting TypeRail/Surface
-
Contact Rating25/60 A at 600 V AC, 10/60 A at 600 V AC
-
Contact TypeNon-Reversing
-
Wattage0.36/1.56 W
-
SeriesLC1D
-
Number of Poles3
-
Dimensions45 mm W x 95 mm D x 77 mm H
-
Size45/77/95 mm
-
Operating Cycles3600 cycles/hr
-
Operating Temperature-5 to 60/-40 to 70 deg C
-
Enclosure TypeIP2X
- New modern look and feel of all machines
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
-
Alternative Part Number8084576
-
UNSPSC39121529
-
IDEA Index ID8084576
-
IncludesProtective Cover
-
Package DescriptionEACH
-
Standards/ApprovalsBV/CCC/DNV (Det Norske Veritas)/GL/GOST/LROS/RINA Certifications|CE Certified|CSA 3211 04|CSA C22.2 No.LR43364|EN 60947-4-1/EN 60947-5-1|File No. E164862 NLDX|IEC 60529/VDE 0106|IEC 60647-4|IEC 60947-4-1/60947-5-1|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 508
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
