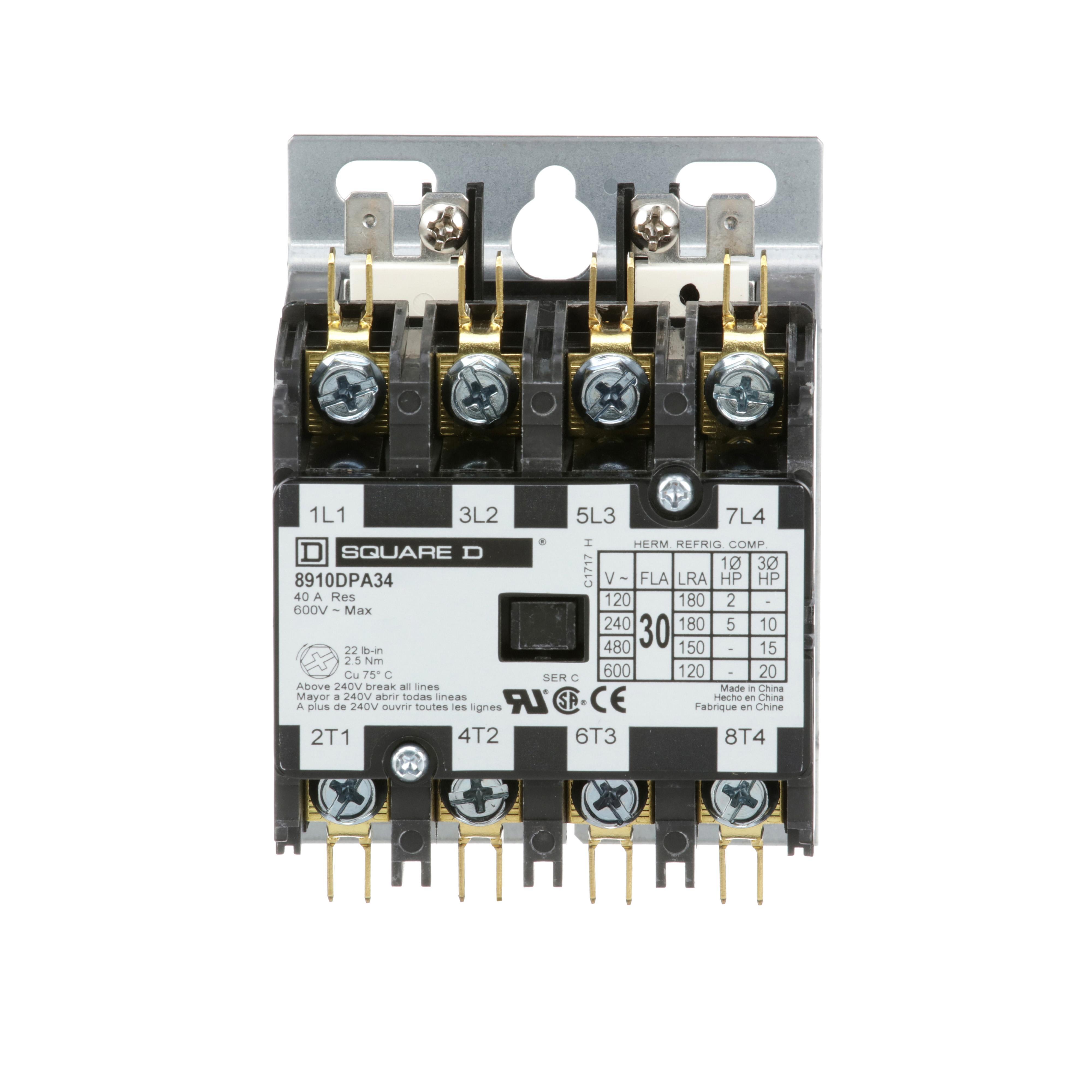

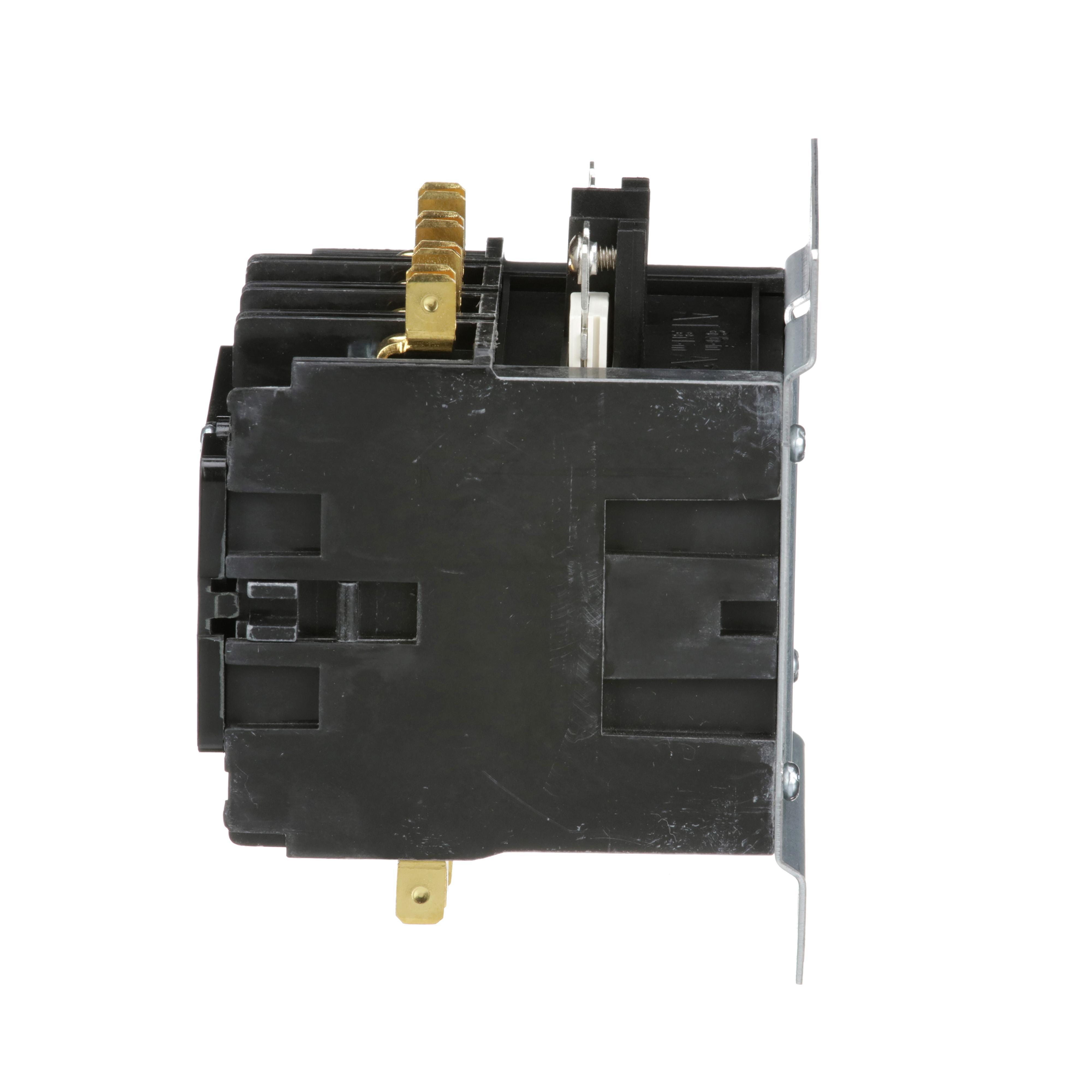

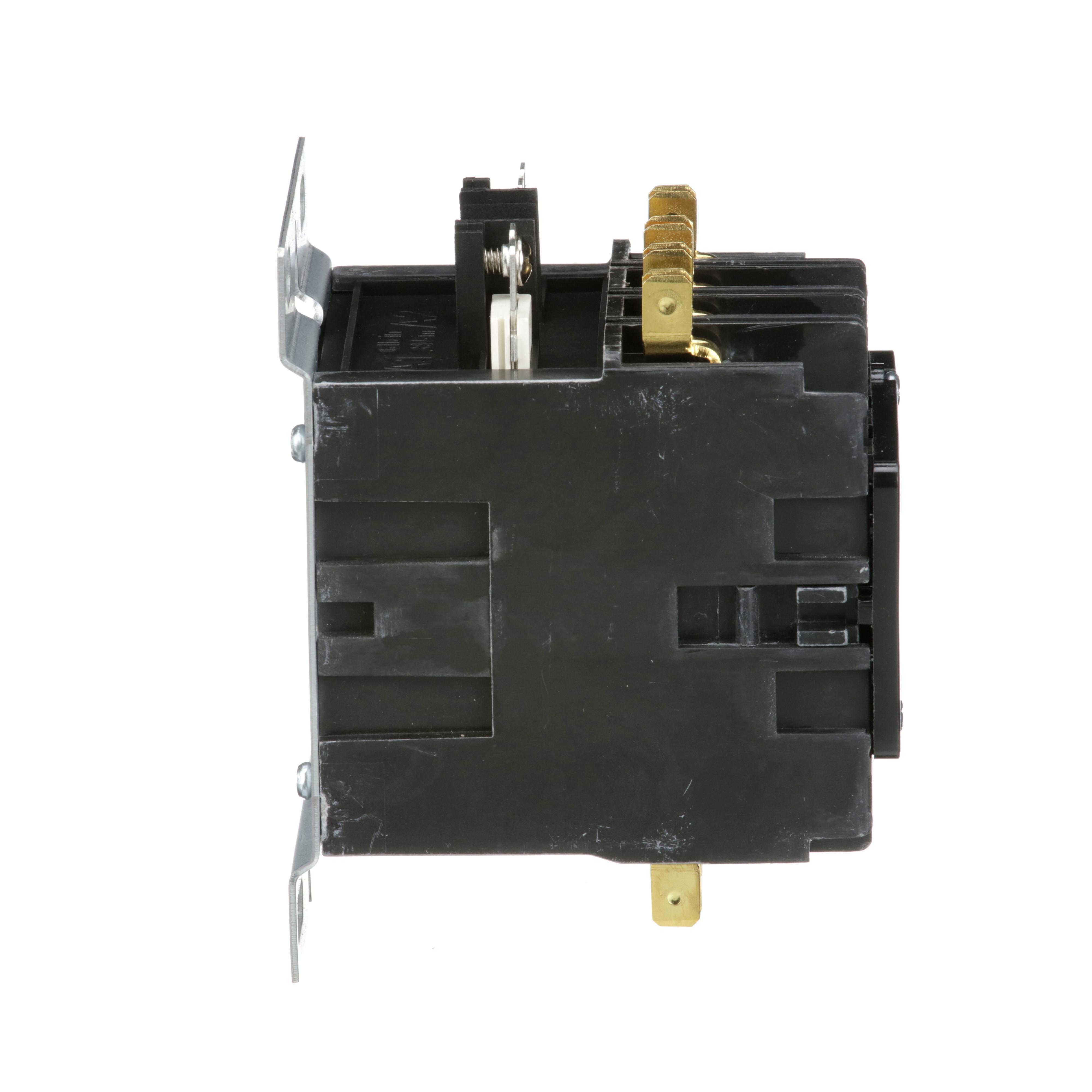

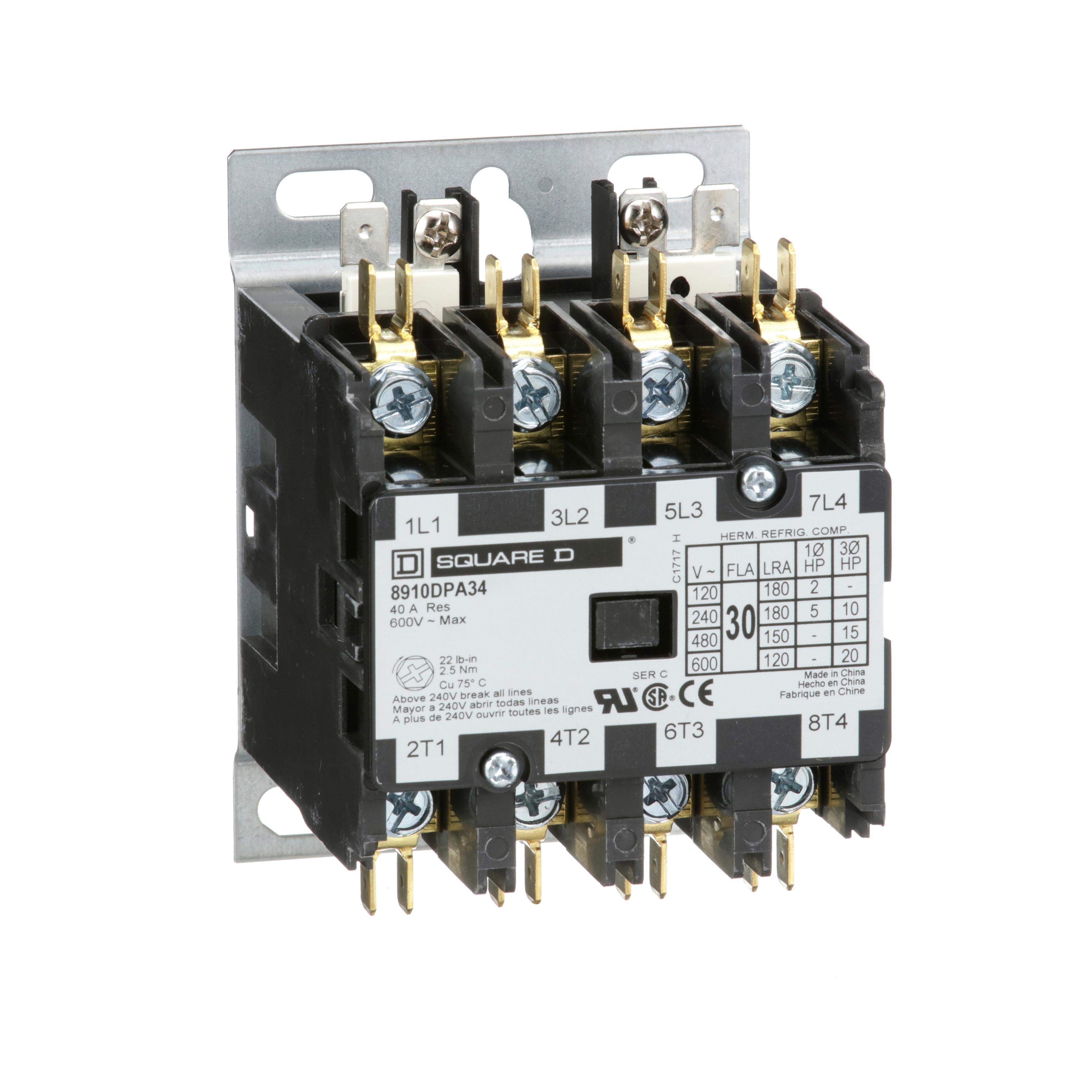

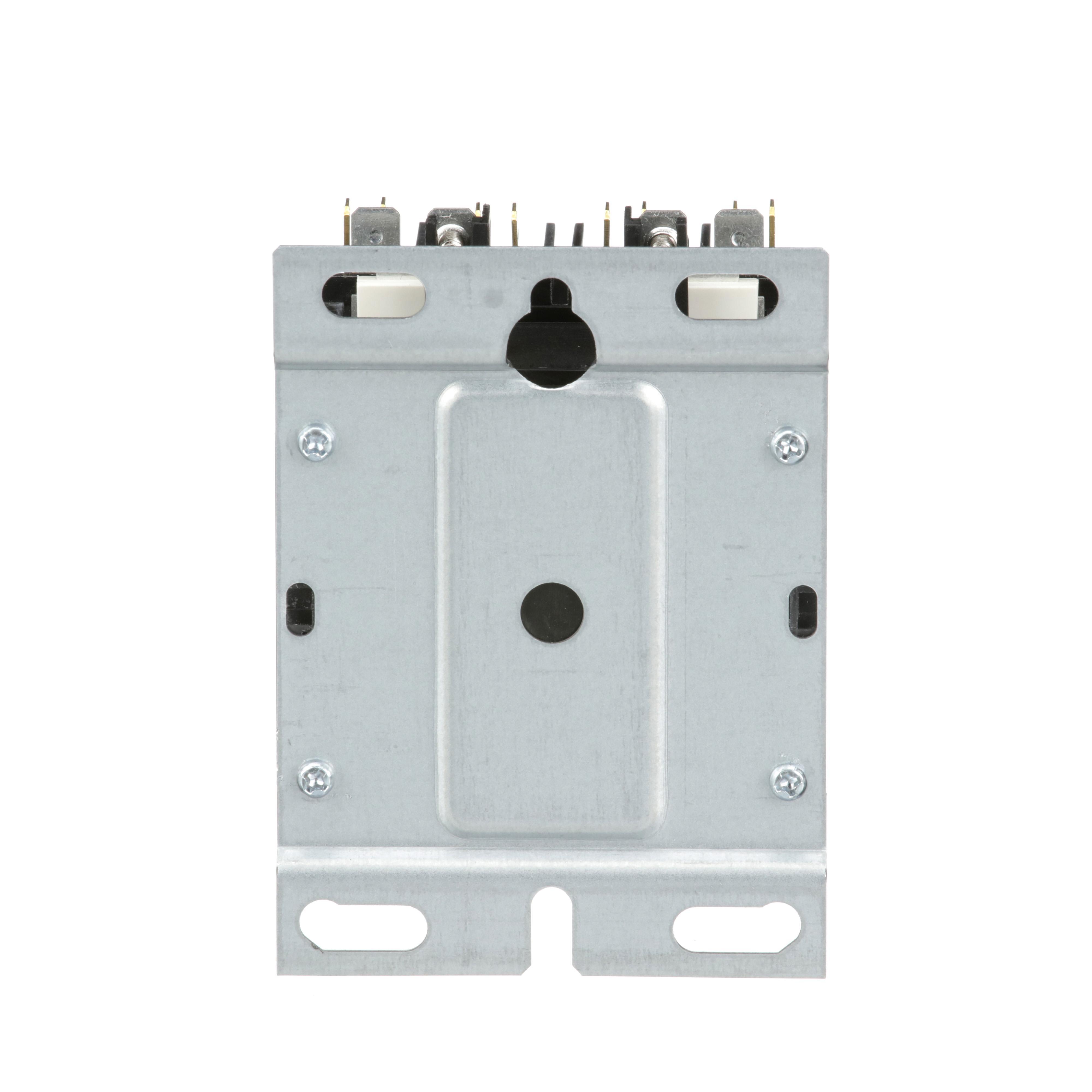

Square-D 30-AMP 4-POLE 208/240V CONTACTORS SQU 8910-DPA-34-V-09
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.
-
BrandSquare D™
-
UPC785901073499
-
Manufacturer Part Number8910DPA34V09
-
CountryUSA|Canada
-
Terminal TypeQuick-Connect
-
Maximum Load Current30 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating2 hp at 115 VAC/5/10 hp at 230 VAC/15 hp at 460 VAC/20 hp at 575 VAC
-
Coil Voltage208/220/240 V AC
-
Type3-Phase Electromechanical Type DPA
-
Connection TypeBinding Head Screw
-
Contact Configuration4NO
-
Mounting TypePanel
-
Contact Rating600 V AC
-
Contact TypeNon-Reversing
-
Series8910
-
Number of Poles4
-
Dimensions3.17 in W x 3.11 in D x 4 in H
-
Operating Cycles500000 cycles
-
Operating Temperature0 to 65 deg C
-
Enclosure TypeOpen
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
- Low Coil VA
- Straight-Through Wiring
- Continuous Duty Cycle
-
Alternative Part Number8006723
-
UNSPSC39121529
-
IDEA Index ID8006723
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|CCN NLDX2|CE Certified|CSA File No. LR25490/Class 3211 04|UL File No. E3190|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Technical Bulletin
