GLASFLOW TA-24-24-1, 16" X 25" X 1" AIR FILTERS

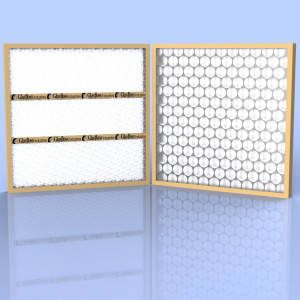

Disposable filters are designed for protection of furnace and central air units in residential and light commercial applications. Construction of both models is identical except for the media retainer. The EZ Flow® features a metal media retainer on the downstream side while the EZ Flow® II has no media retainer. Instead, the media itself is adhered directly to the frame for non-metallic applications.
-
BrandFlanders®
-
UPC031949324247
-
Manufacturer Part Number10155.012424
-
CountryUSA
-
Filter Rating3 to 10 micron
-
Temperature Rating180 deg F
-
Final Resistance1/2 in WG
-
MERV4
-
Flow Rate1200 cfm
-
Frame MaterialKraft Board
-
Media MaterialSpun Glass
-
Height24 in
-
Width24 in
-
Series10155
-
Depth1 in
-
Initial Resistance0.07 in WG
-
Domestic/ImportDomestic
-
Efficiency<20%
-
Overall Dimensions23-7/8 in H x 23-7/8 in W x 3/4 in D
- Economically and environmentally friendly frame has a one piece design
- One-metal retainer on downstream side
- Sealant hot-melt adhesive running full perimeter of the frame upstream and downstream
- Maximum air flow
- Alleviates strain on equipment
- Continuous filament spun glass filtering media
- Effective protection against dust or lint
- 1200 cfm at 300 fpm
-
UNSPSC40161505
-
Standards/ApprovalsUL Class 900|UPC Certified
-
Alternative Part NumberAF2424H
-
Package Description12/CTN
-
Catalog
-
Specification Sheet
