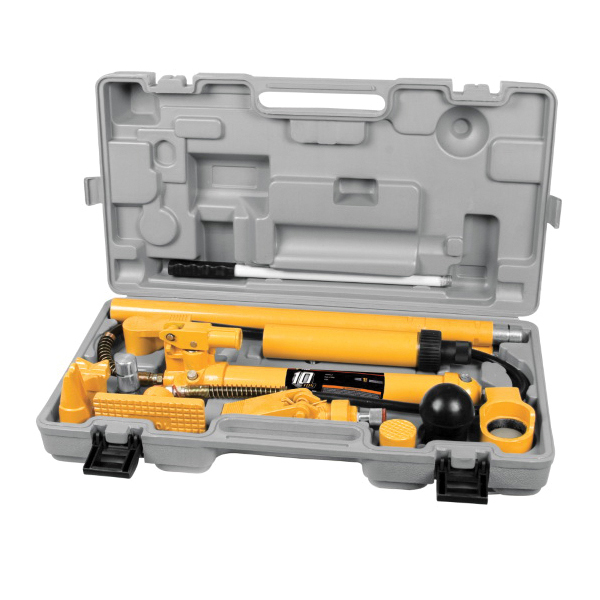

Performance Tool™ W1651 Hydraulic Multi-Power Set, 20000 lb Load Capacity
Performance Tool™ W1651 Hydraulic Multi-Power Set, 20000 lb Load Capacity
-
BrandPerformance Tool™
-
UPC039564125164
-
Manufacturer Part NumberW1651
-
CountryUSA
-
Specifications20000 lb Load Capacity
-
UNSPSC27121602
-

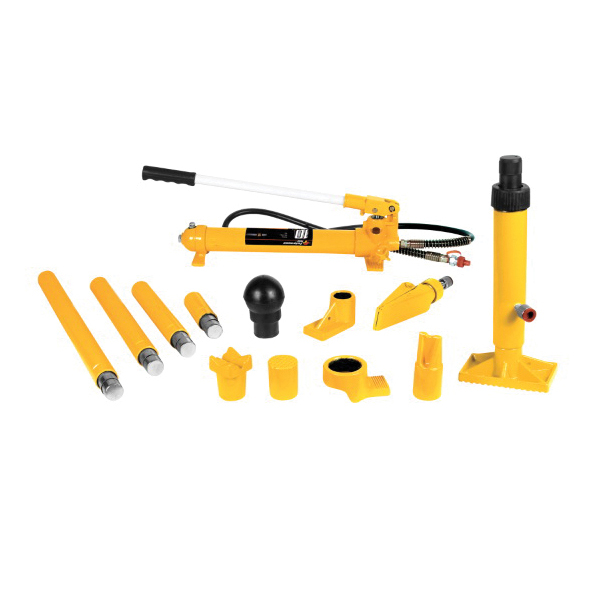

IncludesHydraulic Hand Pump, Jack Hose, 10 ton Ram, Spreader Ram, Extension Tubes, Male Connector, Flat Base, 90 deg V Base, Wedge Head, Spreader Plunger Toe, Spreader Ram Toe, Flex Head, Serrated Saddle and Heavy Duty Storage Case
-
Package Description1/PK
-
Owners/User Manual
