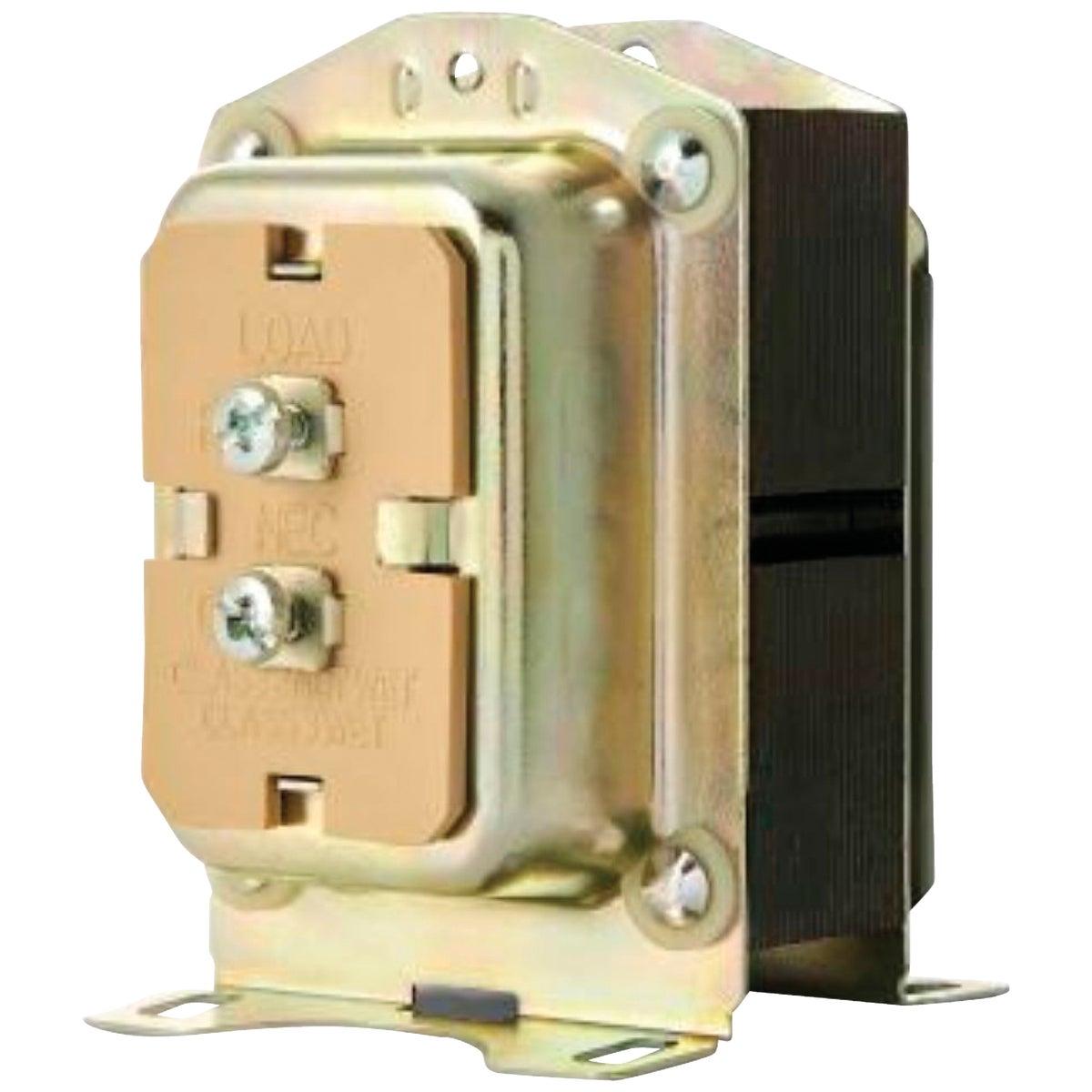

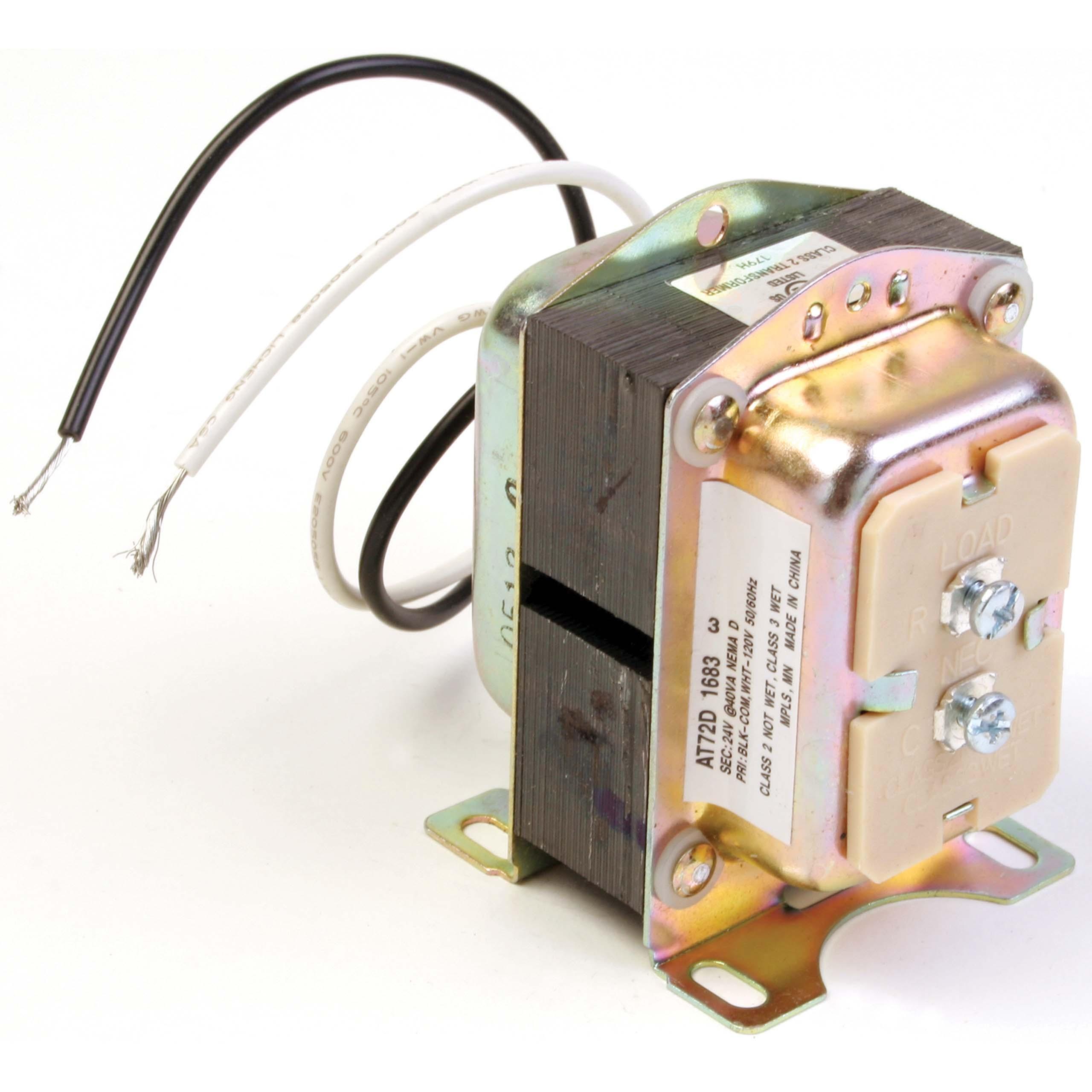

Resideo AT72D1683/U Transformer With 9 in Lead Wires, 120 V AC Primary, 26.5 VAC Secondary, 40 VA Power Rating
Honeywell 40 VA transformers power 24 V systems including thermostats, gas valves and relays.
-
BrandResideo
-
UPC085267990103
-
Manufacturer Part NumberAT72D1683/U
-
CountryUSA
-
Power Rating40 VA
-
Frequency Rating50/60 Hz
-
Mounting TypeUniversal
-
Dimensions2-7/32 in W x 3-1/16 in D x 3-7/32 in H
-
Domestic/ImportImport
-
SpecificationsNEMA D, -20 to 105 deg F
- Override protection
- Color-coded lead wires for primary connections
- Transformers are marked NEMA Type D enclosure
- Transformers are marked NEMA Type D enclosure
- Provides a sense of security and greater comfort while generating repeat business
- All Prestige® IAQ 2.0 systems come standard with a return and discharge air temperature sensor to measure Delta® T
- Alerts and user interactions log - Keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error, saves time in troubleshooting and points the technician in the right direction, the alerts and user interaction Logs are viewable on a computer after you download them from the thermostat to a MicroSD card
- Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts
- USB port for transferring installer set up customizable reminders, custom events and holidays to multiple thermostats
- USB port for adding the dealer's full color business logo on the screen
- 2 assignable inputs can be used with wired sensors, remote setback or dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
- Precise temperature control (+/-1 deg F) for reliable and consistent temperature
- Multiple staging options to provide comfort or energy savings
- Adaptive Intelligent Recovery Over time, the Prestige thermostat learns how long it takes to reach the desired temperature and activates the system earlier
- Keypad lockout to prevent unauthorized changes
- Displays on/off status of all equipment controlled by the thermostat
- English, French or Spanish display options
- Performance logs maintain heating and cooling history
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | HAT72D1683 |
| 405191 |
-
UNSPSC39121002
-
Package Description20/PK
-
Standards/ApprovalsUL Component Recognized|CSA Certified|NEC Class 2
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
