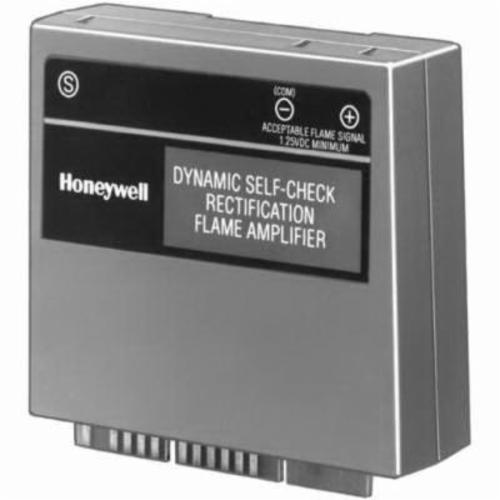

Honeywell R7849A1023/U Solid State Plug-In Flame Amplifier
Solid state plug-in amplifiers that respond to flame detector inputs to indicate the presence of flame when used with 7800 series relay modules.
-
BrandHoneywell
-
UPC085267078184
-
Manufacturer Part NumberR7849A1023/U
-
CountryUSA
-
TypeSolid State Plug-In
-
Dimensions3-9/16 in L x 7/8 in W x 3 in H
- Flame failures response time of 0.8 or 3 sec
- Flame signal strength ranges from 0 to 5 VDC
- Plug into 7800 relay module through printed circuit board edge connector keyed for proper orientation
- Flame signal test jacks to measure amplifiers flame signal voltage
- Dynamic self check amplifiers test the detectors and all electronic components in the flame detection system 7800 series relay module locks out on safety shutdown with flame detection system failures
- Compatible with existing Honeywell® flame detectors
- For use with minipeeper C7027A, C7035A, C7044 gas, oil flame sensor
- For 7800 series and R7140 relay module
-
UNSPSC40101800
-
Package Description28/PK
-
Standards/ApprovalsCSA File No LR95329-3|Guide No MCCZ|UL File No MP268
-
WarrantyLimited
-
Specification Sheet
