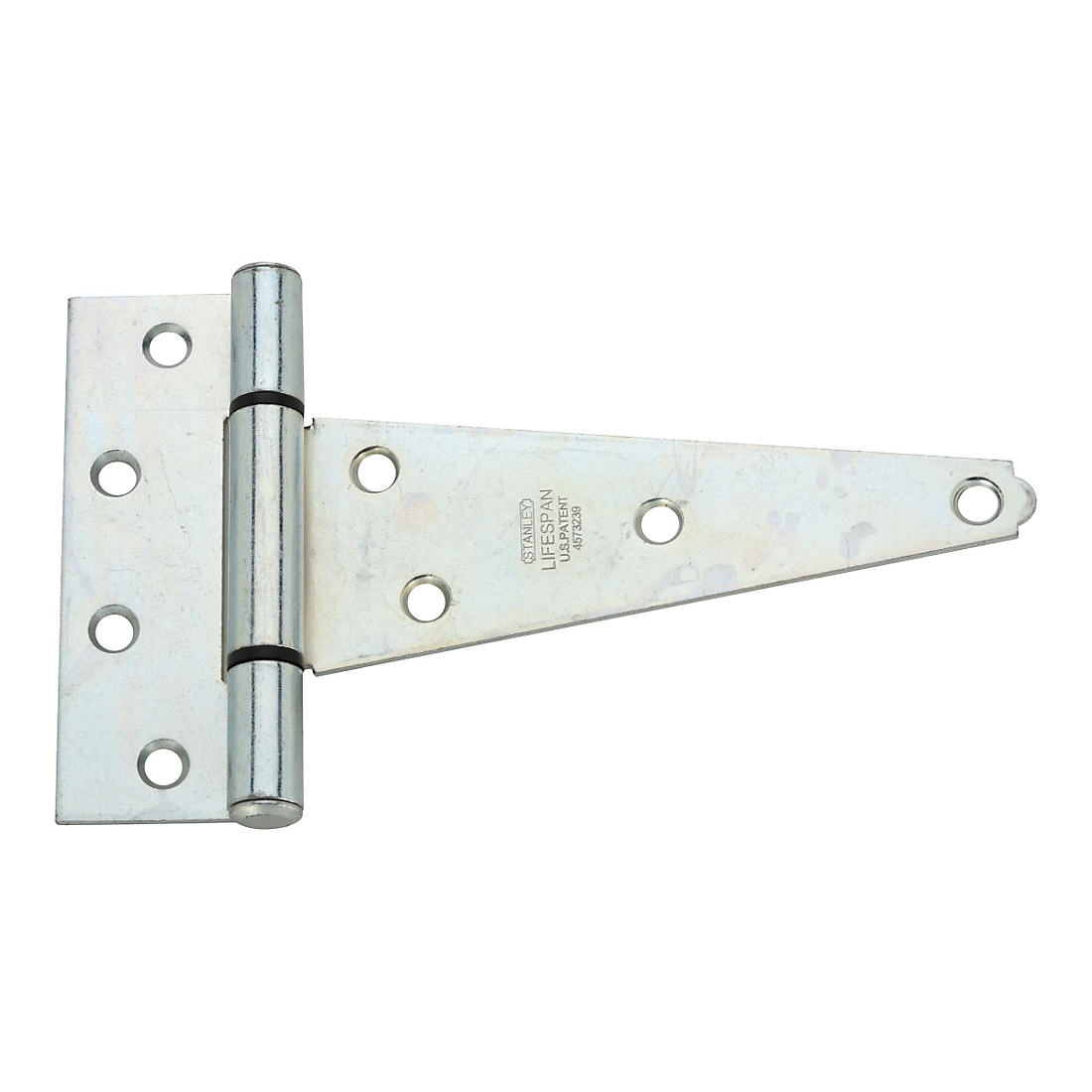

National Hardware 6" XTRA-HEAVY ZINC-PLATED T-HINGES NTL 129-171
National Hardware® N129-171 Extra Heavy Duty T-Hinge, 23 lb Capacity, Hot Rolled Steel, Zinc Plated
-
BrandNational Hardware®
-
UPC038613205260
-
Manufacturer Part NumberN129-171
-
CountryUSA
-
Capacity23 lb
-
FinishZinc Plated
-
MaterialHot Rolled Steel
-
Frame Leaf Length1.83 in
-
Frame Leaf Width4-1/4 in
-
TypeExtra Heavy Duty
-
Door Leaf Length6 in
-
Door Leaf Width2.15 in
-
Overall Width6 in
-
Pin Diameter0.326 in
- Offset screw holes for extra strength and to prevent wood from splitting
- Tight pin for left or right hand applications
- Manufactured with hot rolled steel
-
Alternative Part NumberS145-020, S145-020700
-
UNSPSC31160000
-
Package Description1/PK
-
Standards/ApprovalsBHMA A138.18
-
Full Engineering Drawing
