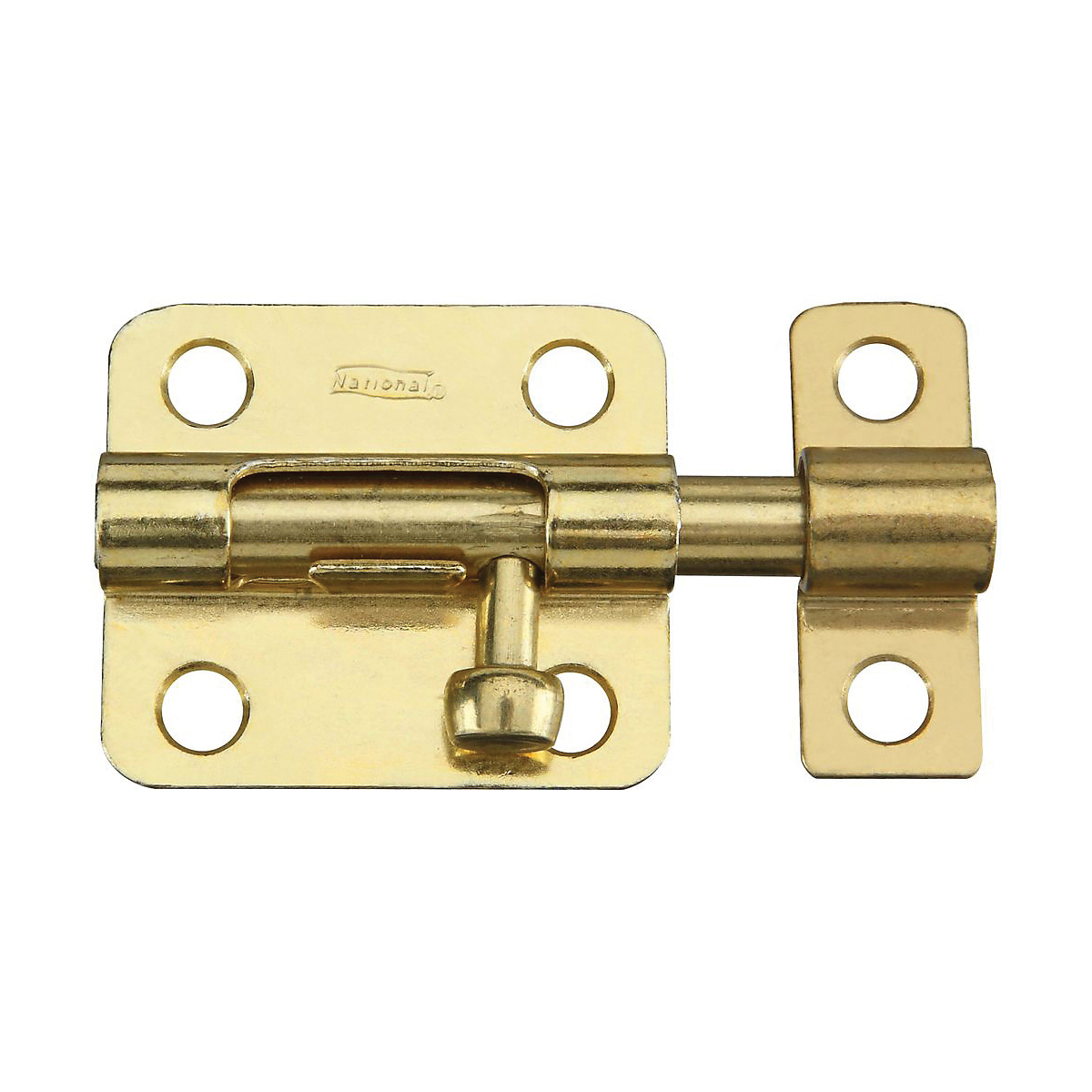

National Hardware® N151-480 V834 Standard Barrel Bolt, 2-1/2 in L x 1-1/2 in W, 0.32 in, Steel
National Hardware® N151-480 V834 Standard Barrel Bolt, 2-1/2 in L x 1-1/2 in W, 0.32 in, Steel
-
BrandNational Hardware®
-
UPC038613151482
-
Manufacturer Part NumberN151-480
-
CountryUSA
-
FinishBrass
-
MaterialSteel
-
TypeStandard
-
Height1/2 in
-
SeriesV834
-
Bolt Head Diameter0.32 in
-
Bolt Length2-1/2 in
-
Overall Length2-1/2 in
-
Overall Width1-1/2 in
- Use on vertical, horizontal, left or right hand applications
- In vertical use, the notch-in case holds the bolt in a locked position
- Durable steel case, strike and bolt
-
UNSPSC31161606
-
Package Description1/PK
-
Full Engineering Drawing
