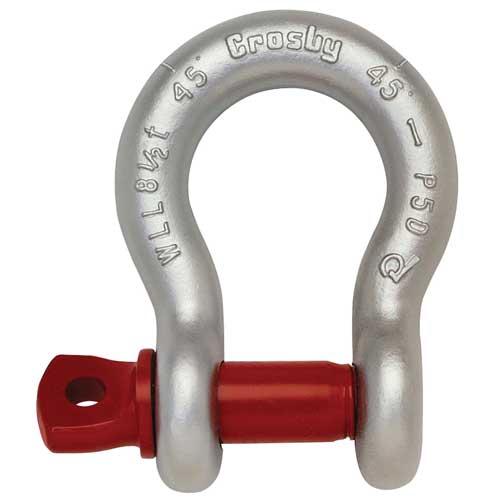

G-209-1-1/4 CROSBY 1-1/4" 12-TON SHACKLES
Working Load Limit: 12 tons
Safety Factor: 6:1
Inside Width: 3.26"
Inside Height: 4.69"
Mouth Width: 2.03"
Shackle Size: 1-1/4"
Pin Size: 1-3/8"
Material: Carbon Steel Shackle
Alloy Pin
Finish: Galvanized
Type: Screw Pin Anchor
Product Weight: 9.5 lbs.
Standards: Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
