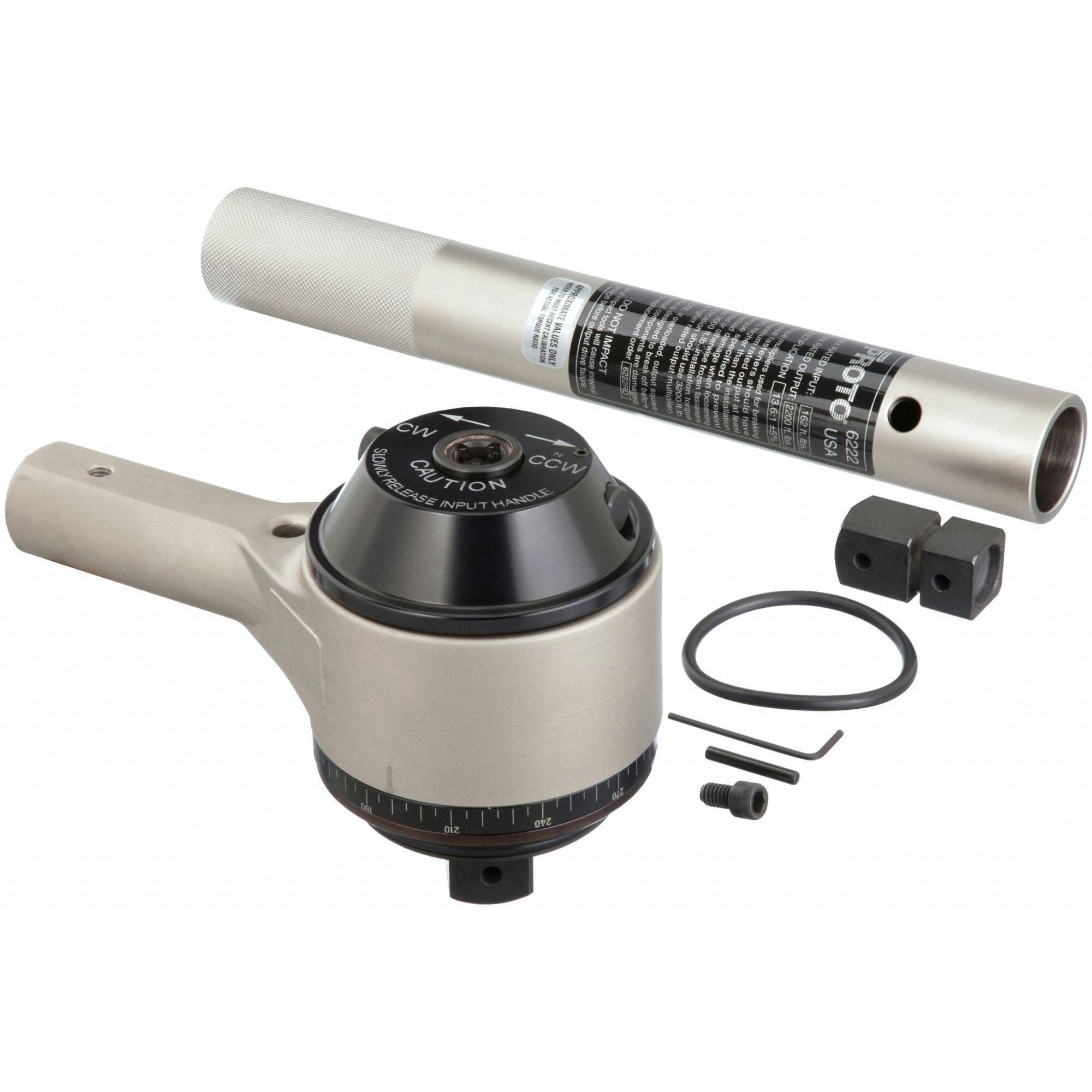

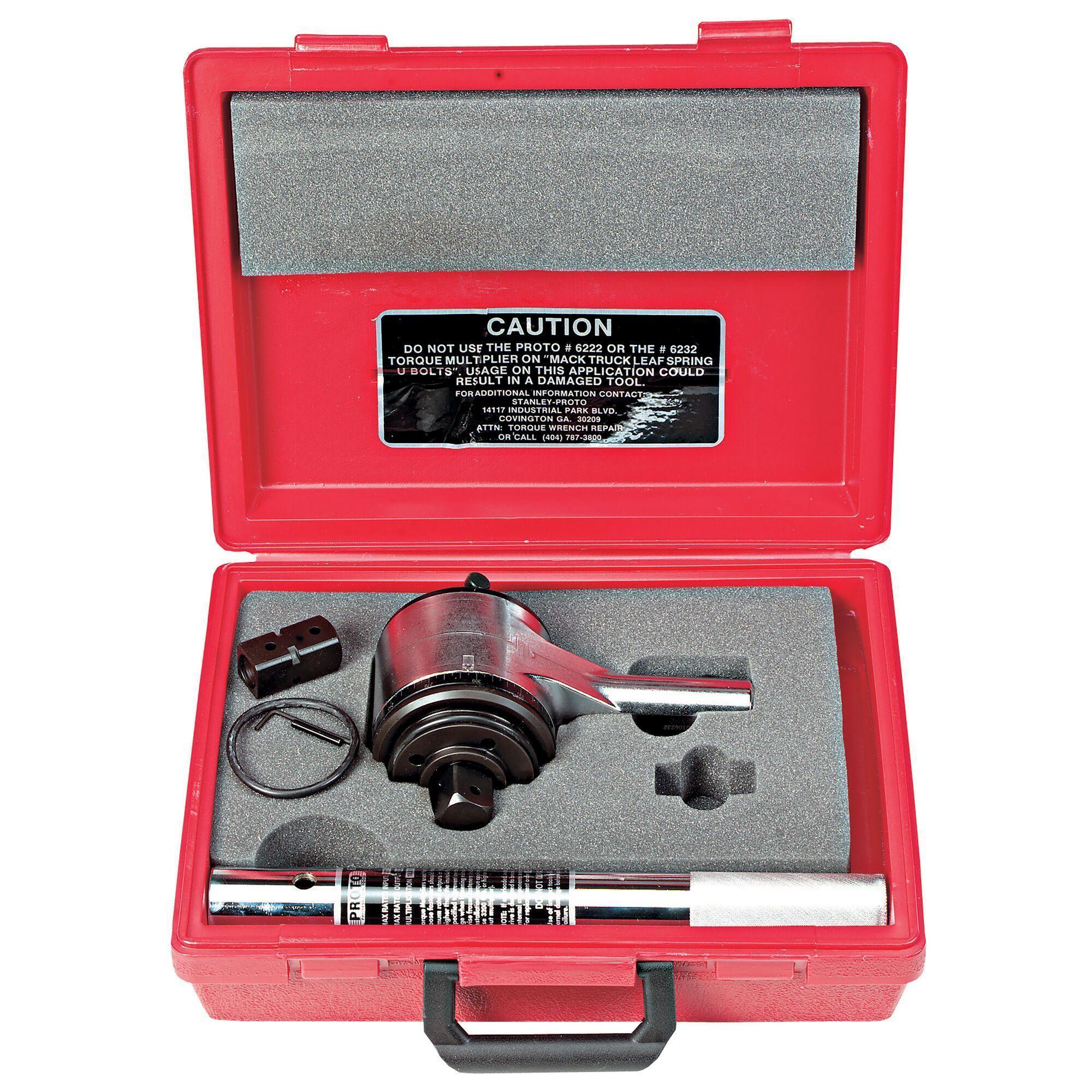

Proto® J6232 Torque Multiplier, 20.2 Gear Ratio, 18.5:1 Torque Ratio, 1/2 in Square Female x 1 in Square Male Drive, 20 in OAL, 173 ft-lb Max, 3200 ft-lb Max, Tubular Bar
Proto® J6232 Torque Multiplier, 20.2 Gear Ratio, 18.5:1 Torque Ratio, 1/2 in Square Female x 1 in Square Male Drive, 20 in OAL, 173 ft-lb Max, 3200 ft-lb Max, Tubular Bar
-
BrandProto®
-
UPC662679130411
-
Manufacturer Part NumberJ6232
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialBi-Metal
-
Gear Ratio20.2
-
Head Size4-1/32 in L x 6-3/8 in D
-
Drive Size1/2 in Square Female x 1 in Square Male
-
Overall Length20 in
- Standard torque accuracy is +/- 5% of reading
- Reaction system tubular reaction bar
- Single stage planetary gear system
- Self-contained, 3-position anti-backlash device
- 5 deg increments angle of turn protractor
- 14-1/8 in L handle
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4221060 |
| Berkshire eSupply | KP4221060 |
| Berkshire eSupply | KP4221060 |
| Berkshire eSupply | KP4221060 |
-
Alternative Part Number14762957
-
UNSPSC27111715
-
IDEA Index ID14762957
-
Package Description1/BX
-
Standards/ApprovalsNIST Certified
-
WarrantyLifetime
