Proto Tools 1/4"-DR 10-50-IN/LB TORQUE WRENCH PRO J-6060-A

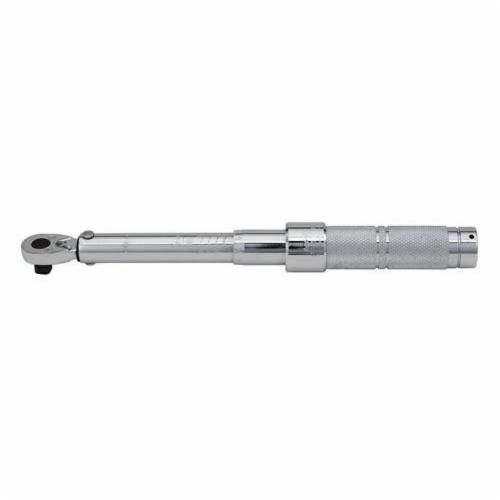

Proto® J6060A Adjustable Micrometer Torque Wrench, 1/4 in Drive, 10 to 50 in-lb, Ratcheting Head, 1 in-lb Graduation, 9-1/2 in OAL, ASME B107.14M
-
BrandProto®
-
UPC662679131715
-
Manufacturer Part NumberJ6060A
-
CountryUSA
-
FinishFull Polished
-
MaterialSteel
-
Torque Range10 to 50 in-lb
-
TypeAdjustable
-
Graduations1 in-lb
-
Accuracy+/-4% CW, +/-6% CCW
-
Rotation TypeCW/CCW
-
Handle TypeKnurled Grip
-
Head TypeRatcheting
-
Indicator TypeAudible Click
-
Specifications MetASME B107.14M
-
Drive Size1/4 in
-
Overall Length9-1/2 in
- Desired torque value is pre-selected by use of a micrometer type scale
- When exact torque level is reached, wrench releases with an audible
- Wrench resets automatically to same torque setting
- Ball bearing mounted release mechanism eliminates accuracy variations between slow and fast loading
- Color coded English and metric markings
- Positive locking mechanism helps prevent accidental changes in torque values
- Comfortable, secure ergonomically designed grip
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto® torque wrench is made from high grade steel for strength and durability
- Positive locking mechanism to dial and lock in desired torque
- Thin head design to allow access in tight areas
- Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4220820 |
-
UNSPSC27111715
-
Standards/ApprovalsASME B107.14M
