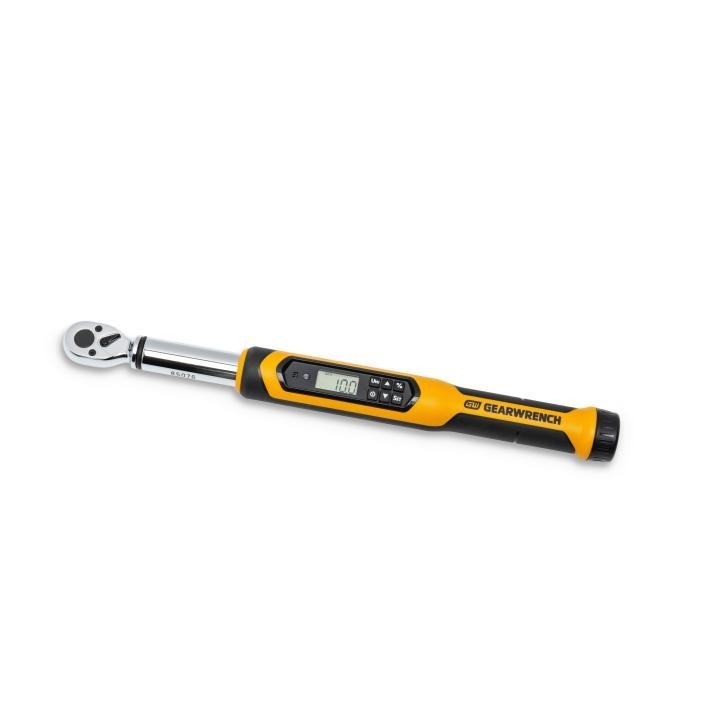

GEARWRENCH® 85076 Electronic Torque Wrench, 3/8 in Drive, 7.1 to 99.6 ft-lb, 0.1 ft-lb/0.1 N-m Graduation, 15-3/4 in OAL, ASME B107.28M
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
-
BrandGEARWRENCH®
-
UPC099575850769
-
Manufacturer Part Number85076
-
CountryUSA|Canada
-
Power Source(2) AA Alkaline Batteries
-
Torque Range7.1 to 99.6 ft-lb
-
Graduations0.1 ft-lb/0.1 N-m
-
Accuracy+/-2% CW, +/-3% CCW
-
Rotation TypeCW/CCW
-
Indicator TypeBuzzer with LED Light
-
Display TypeLED
-
Specifications MetASME B107.28M
-
Drive Size3/8 in
-
Overall Length15-3/4 in
- 72-tooth ratchet provides 5 swing arc allows you to turn fasteners in tight spaces

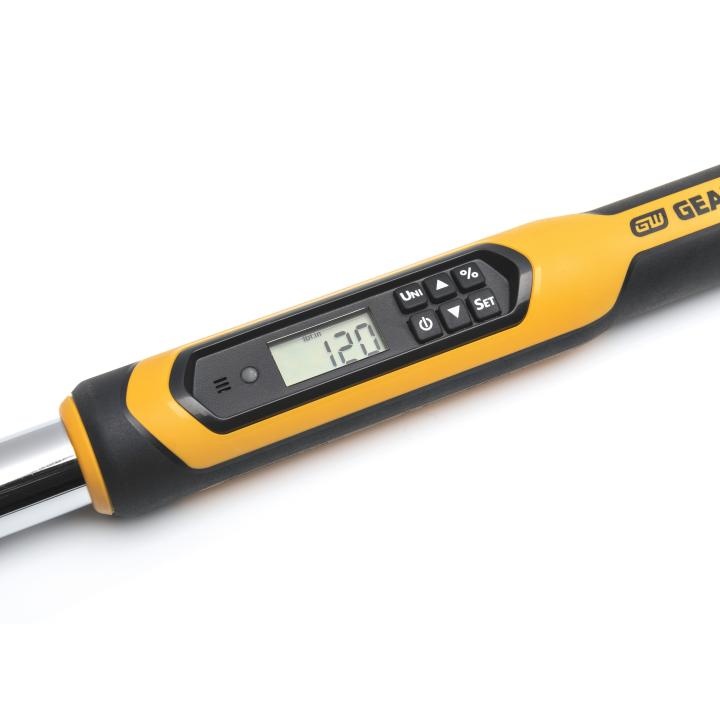

- Target Torque Alert gives a warning as you approach the target torque, vibrating handle, buzzer, and solid LED light indicate when target is reached
- 5 torque measurement units ft-lbs, in-lbs, Nm, kg-m, kg-cm
- Handle and housing are oil and solvent resistant, protecting the tool from harmful agents and keeping your hands in place
- Requires (2) AA batteries (not included)
- Requires (2) AA batteries (not included)
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 44301646 |
| Grainger | 58LD79 |
-
UNSPSC27111715
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.28M
-
Warranty1 year Limited, 90 days calibration accuracy
-
