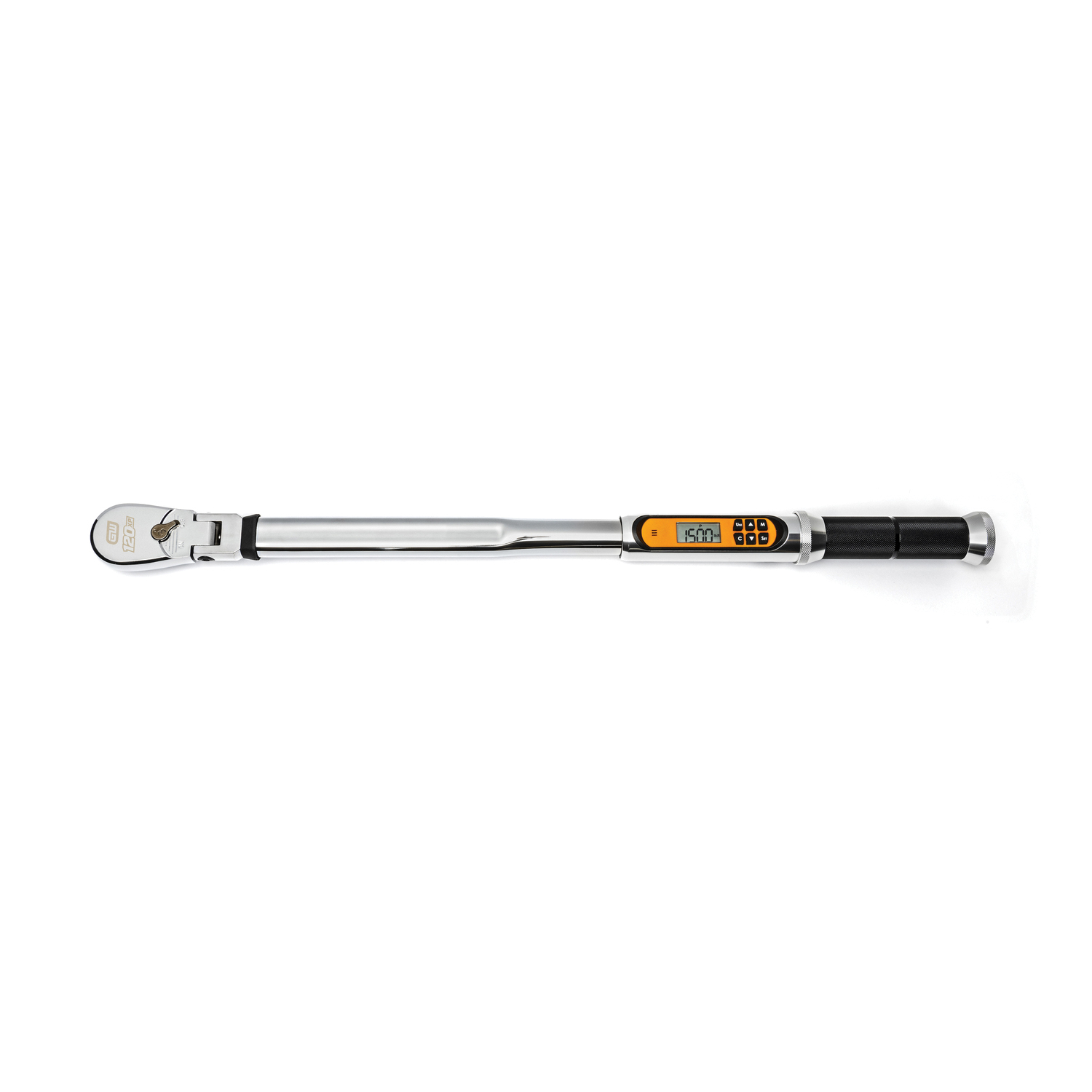

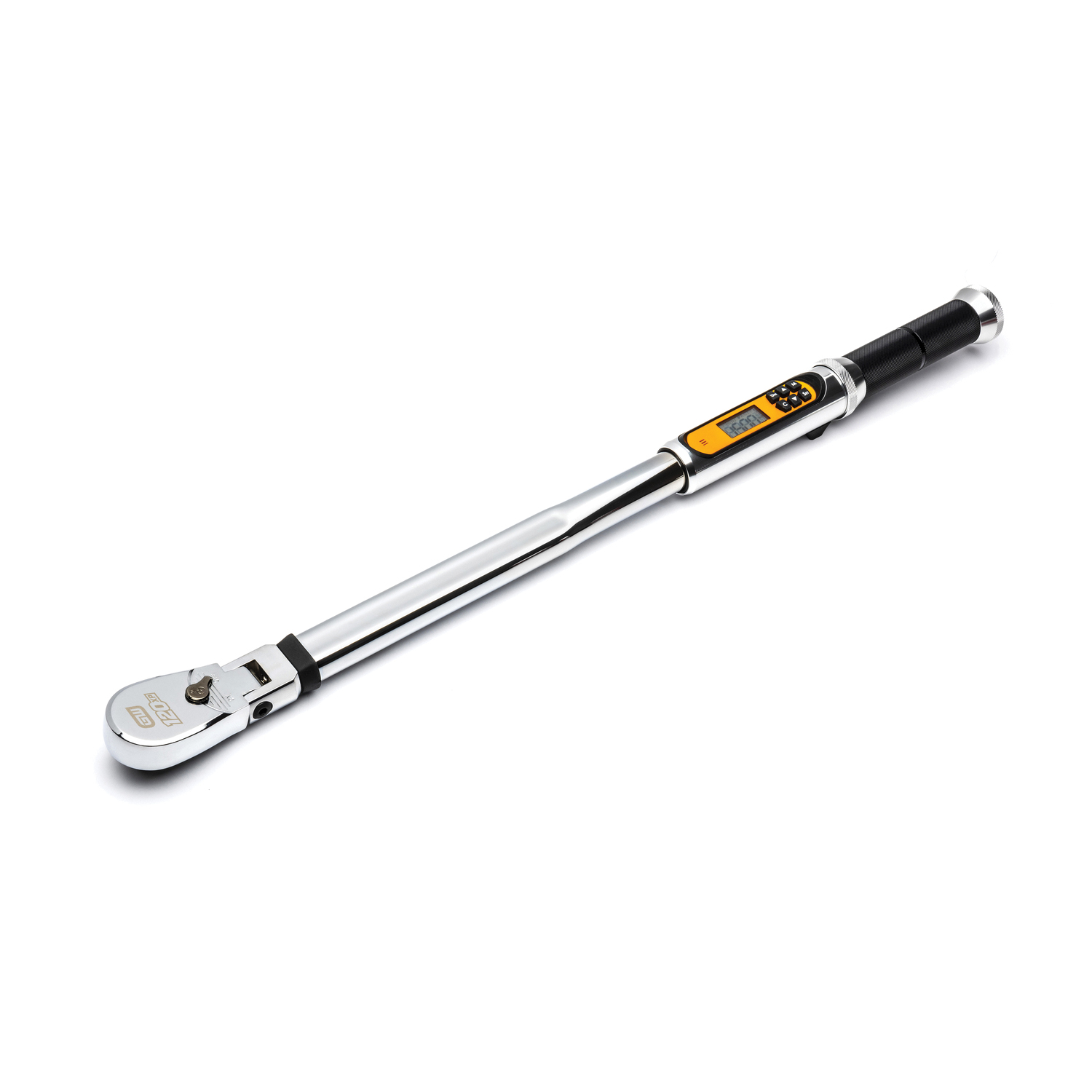

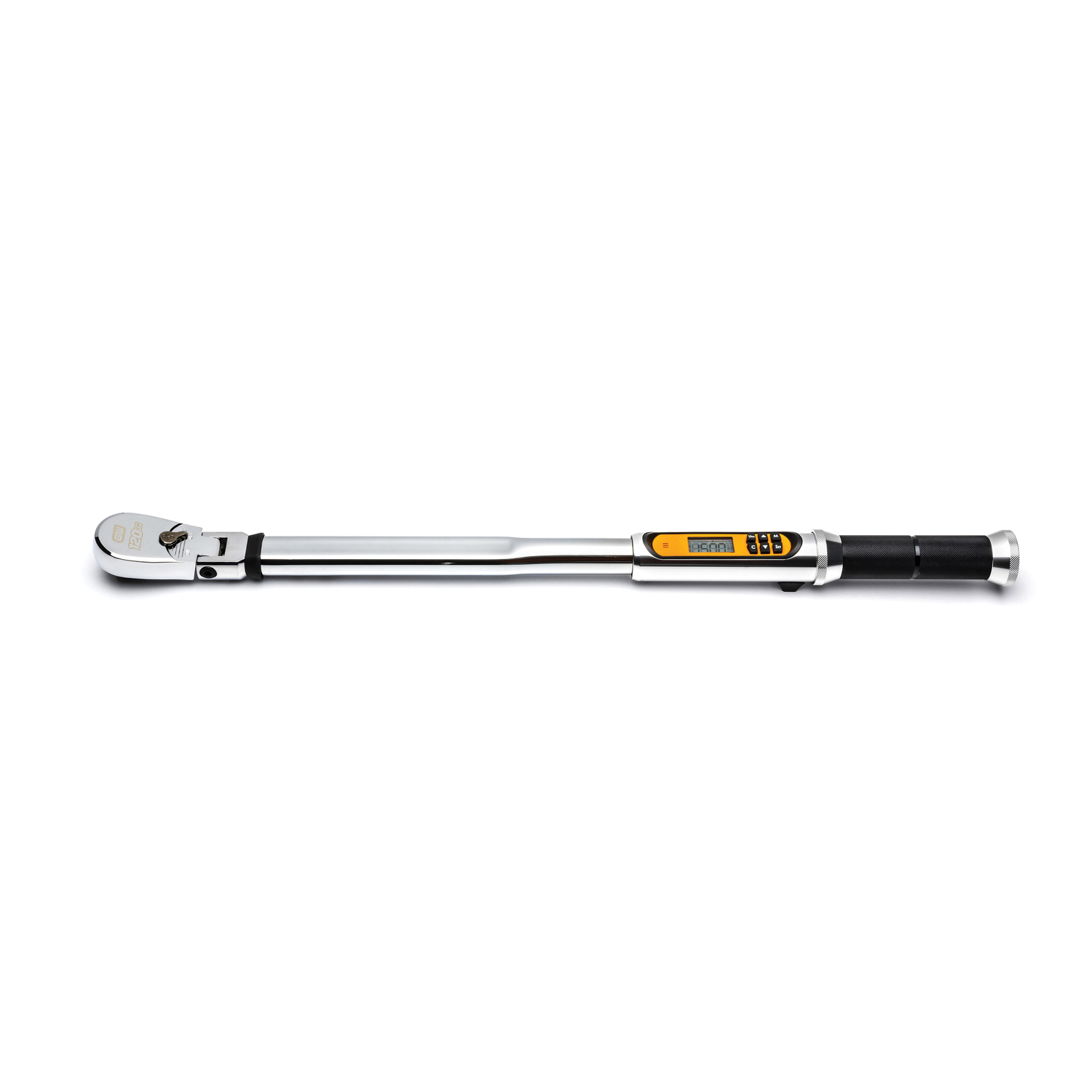

GEARWRENCH® 120XP™ 85196 Flex Head Electronic Torque Wrench With Angle, 1/2 in Drive, 25 to 250 ft-lb, Ratcheting Head, 0.1 ft-lb/0.1 N-m Graduation, 23.7 in OAL, ASME B107.10/B107.12/B107.28/B107.300
The GEARWRENCH family of torque wrenches & torque products offer the latest innovations in torque measurement. Included in the line are micrometer, tire shop, beam and electronic torque wrenches, as well as, torque multipliers. The micrometer wrenches are available in fixed head and flex head. The fixed head line offers wrenches in 1/4" to 3/4" drives. The flex head wrenches are available in 3/8" and 1/2" drives. The tire shop wrenches feature a rugged tire tread rubber cover on the head intended to specifically be used for checking wheel lug nuts and are available in 3/8" and 1/2" drives. The electronic torque wrenches ensure a more precise fastener torque level and are available in a 3/8" and 1/2" drives. The GEARWRENCH line of torque products allow the user to complete any job where accurate torque is required.
-
BrandGEARWRENCH®
-
UPC099575851964
-
Manufacturer Part Number85196
-
CountryUSA|Canada
-
FinishPolished Chrome
-
MaterialAlloy Steel
-
Graduations0.1 ft-lb/0.1 N-m
-
Accuracy+/-2% CW, +/-3% CCW
-
Handle TypeKnurled Grip
-
Head TypeRatcheting
-
Indicator TypeBuzzer with LED Light
-
Display TypeLED
-
Drive Size1/2 in
-
Power Source(2) AA Alkaline Batteries
-
Torque Range25 to 250 ft-lb
-
TypeFlex Head Electronic
-
Rotation TypeCW/CCW
-
Specifications MetASME B107.10/B107.12/B107.28/B107.300
-
Overall Length23.7 in
- 120XP head provides a 3 ratcheting arc to turn fasteners in narrow spaces
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
- Low profile tube, 15 flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
- Digitally tracks torque and angle measurements

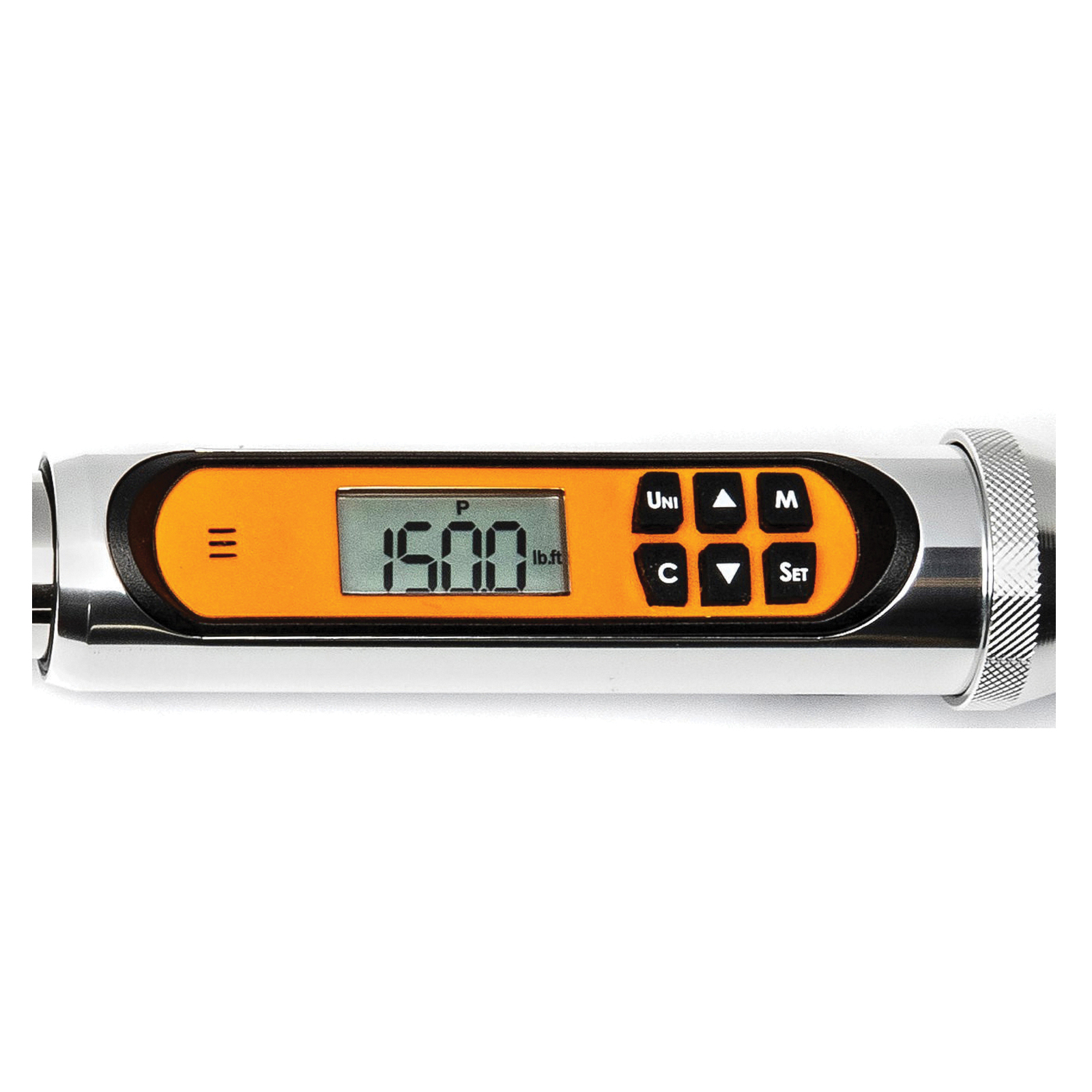

- Vibrating handle, buzzer, and LCD screen alert when target torque is reached
- 3 function modes feature peak torque, angle, and peak angle for additional versatility
- 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Torque accuracy of (+/-)2 Percent CW and (+/-)3 Percent CCW between 20 Percent and 100 Percent of wrench capability Angle settings offer (+/-)1 Percent of reading of angle accuracy
-
UNSPSC27111715
-
Package DescriptionEACH
-
Standards/ApprovalsASME Specified
-
Warranty1 year Limited
