Proto® J6133F Dual Scale Dial Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Fixed/Ratcheting Head, 46-1/2 in OAL, ASME B107.14M, ISO 6789, 10 ft-lb Graduation
Proto® J6133F Dual Scale Dial Torque Wrench, 3/4 in Drive, 120 to 600 ft-lb, Fixed/Ratcheting Head, 46-1/2 in OAL, ASME B107.14M, ISO 6789, 10 ft-lb Graduation
-
BrandProto®
-
UPC662679135409
-
Manufacturer Part NumberJ6133F
-
CountryUSA|Canada
-
FinishFull Polished
-
MaterialAluminum/Steel
-
Torque Range120 to 600 ft-lb
-
Minimum Number of Cycles5000
-
TypeDual Scale
-
Graduations10 ft-lb
-
Accuracy+/-3 %
-
Rotation TypeCW/CCW
-
Handle TypePlain Grip
-
Head TypeFixed/Ratcheting
-
Specifications MetASME B107.14M, ISO 6789
-
Drive Size3/4 in
-
Overall Length46-1/2 in
- Accurate to +/-4% of torque reading in both directions at 20 to 100% of full scale
- Industrial all steel or aluminum torque transfer components
- High alloy torsion drive design
- Dual scale (english/metric) with clockwise and counterclockwise operation - fewer wrenches need to complete job
- Memory needles are standard on all wrenches except electric light models

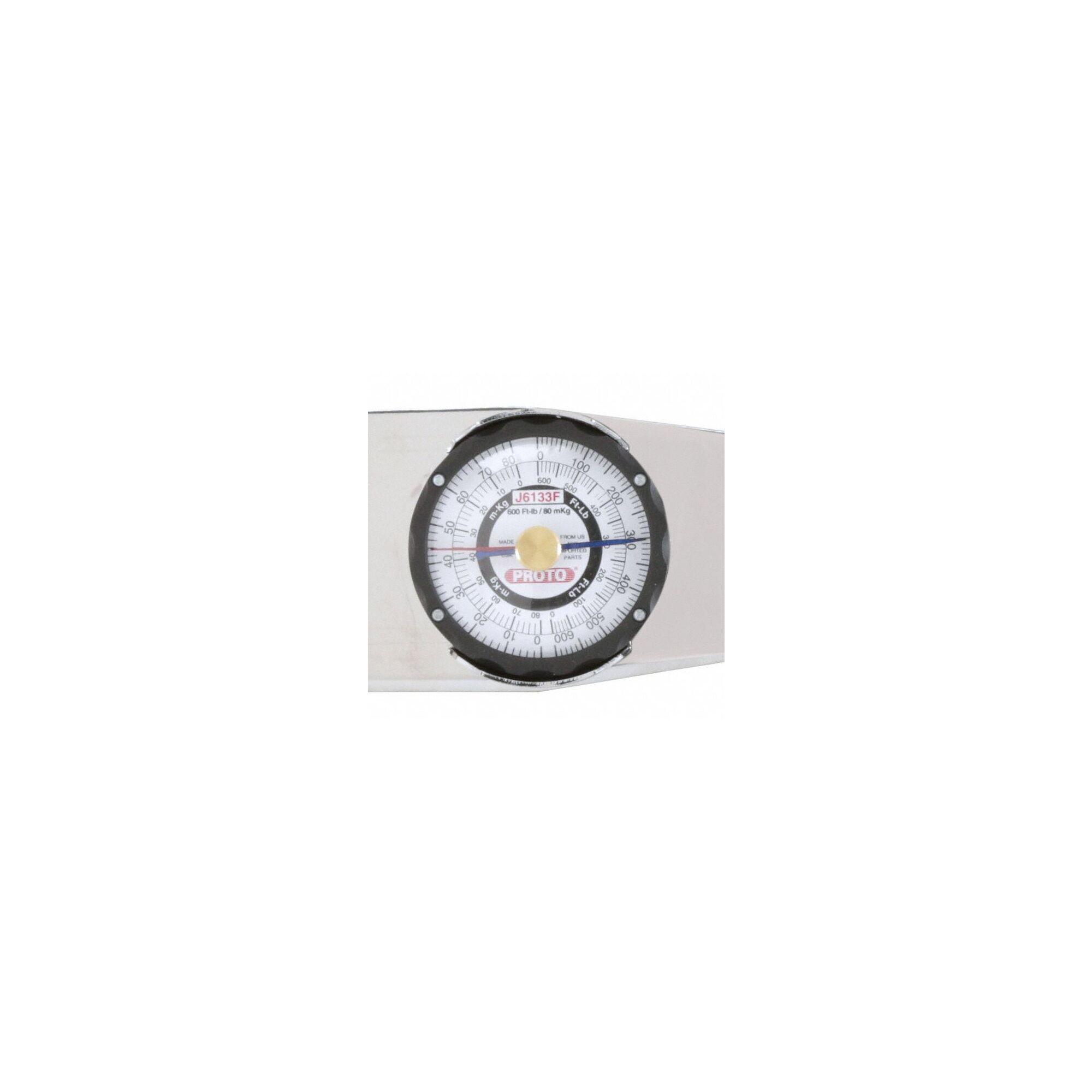

- Easy-to-read, high contrast scale
- Laser marked serial number for traceability
- Torsion drive design - accuracy not effected by hand position
- Electric light and buzzer on 1000 ft-lb and 2000 ft-lb models

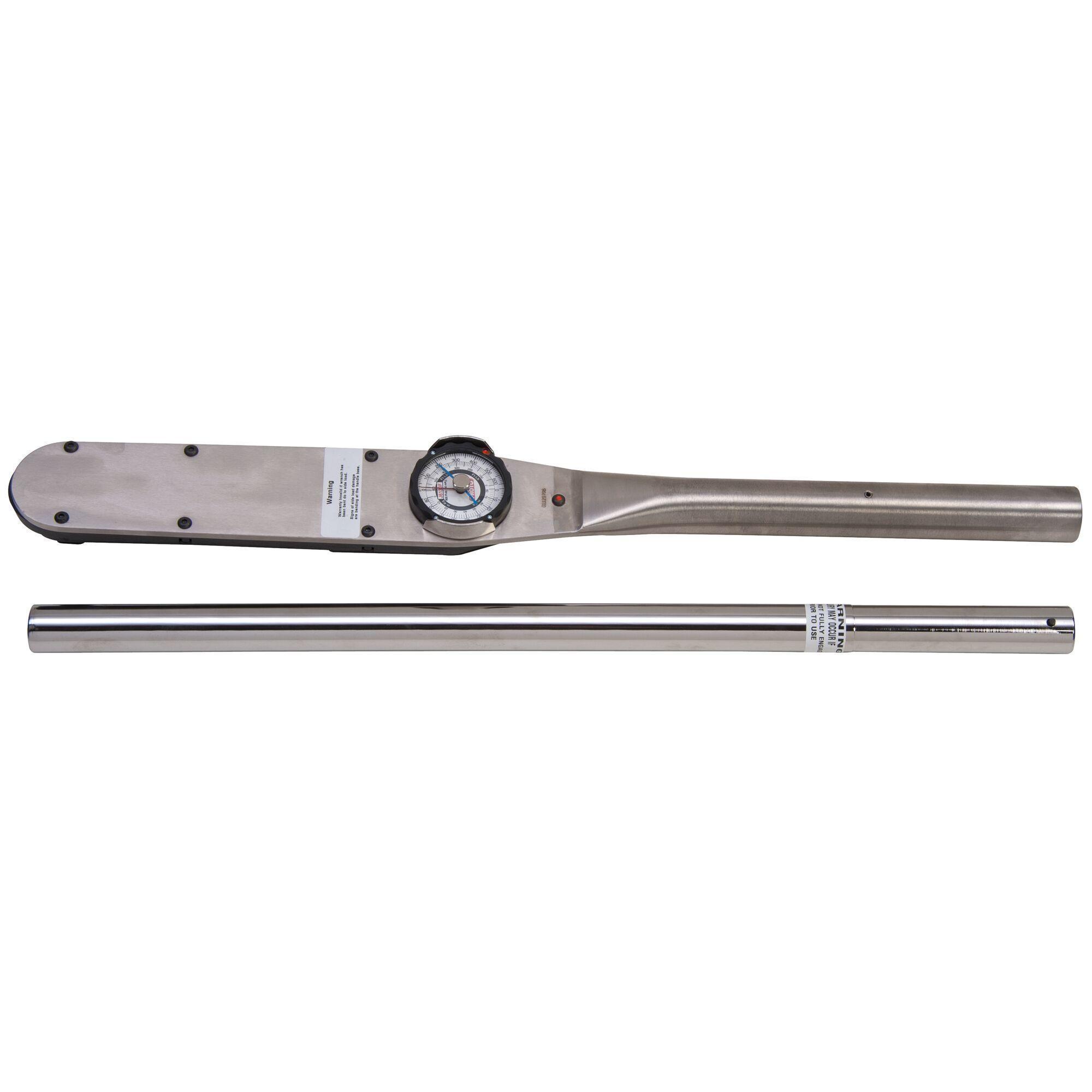

- Extension handle for easy force application
- 0 to 50 through 0 to 1000 ft-lb dual reading
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4220970 |
| Berkshire eSupply | KP4220970 |
| Berkshire eSupply | KP4220970 |
| Berkshire eSupply | KP4220970 |
-
UNSPSC27111715
-

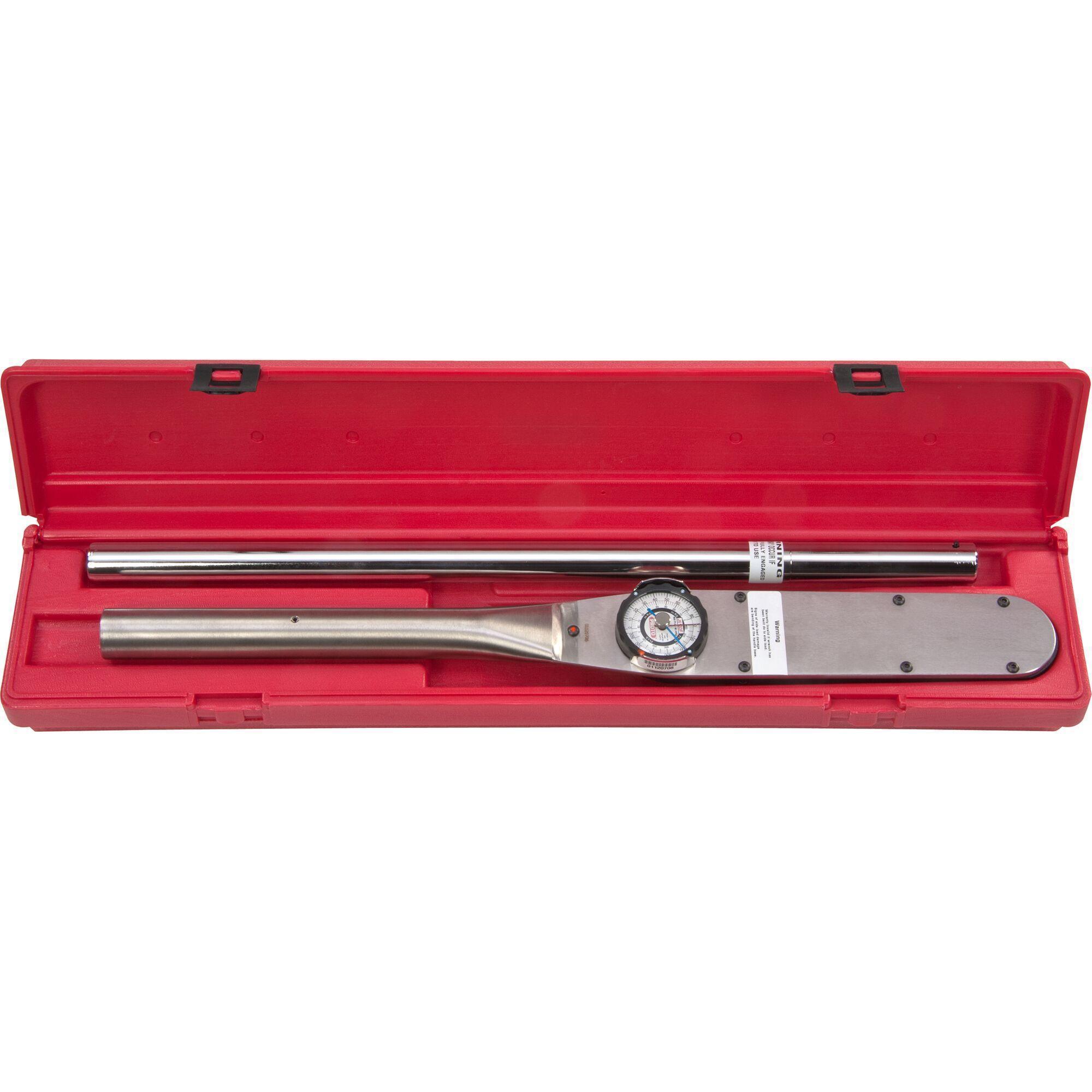

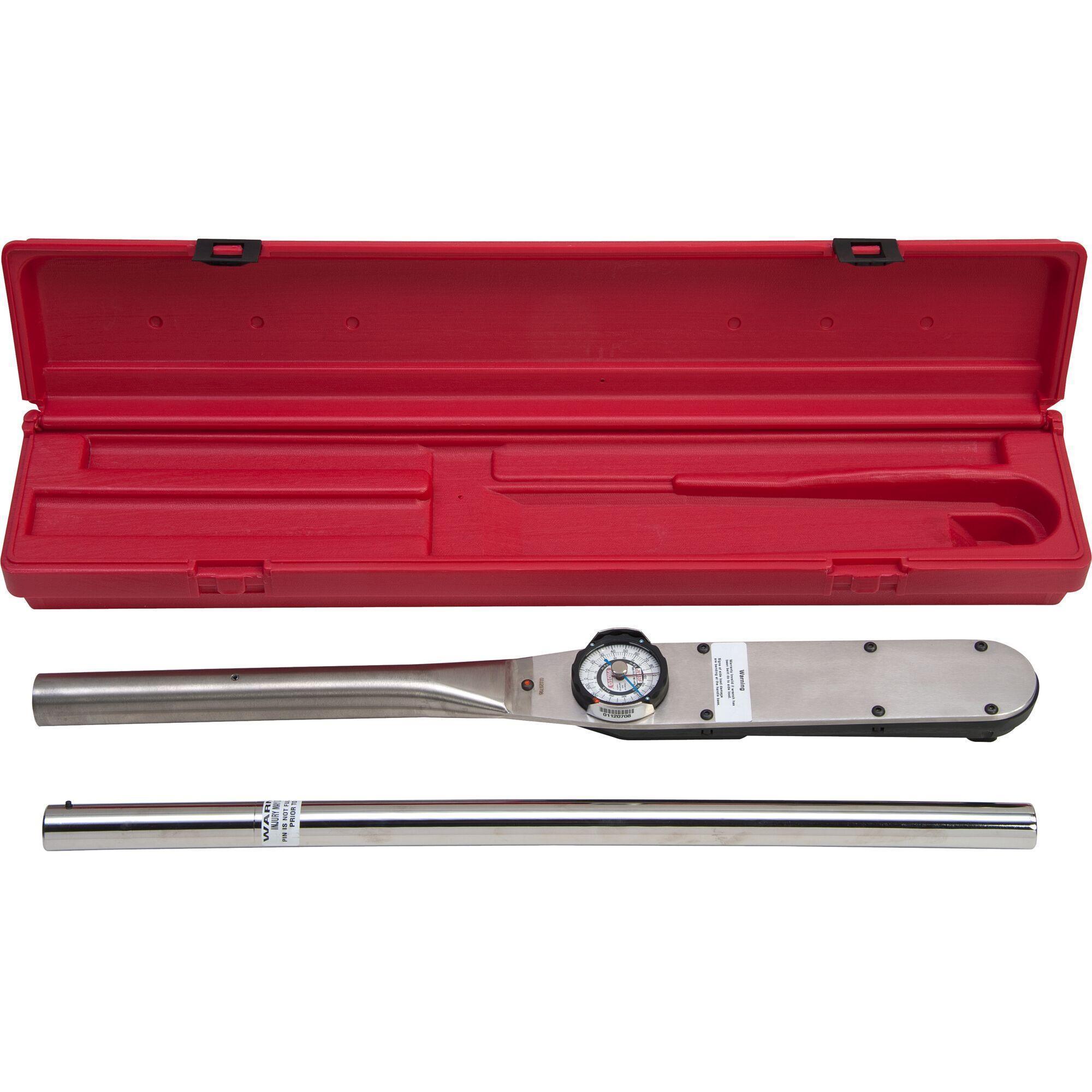

IncludesBlow Molded Box and Removable Extension Handle
-
Package Description1/BX
-
Standards/ApprovalsJIS B4650|NIST Certified|CW Certified
