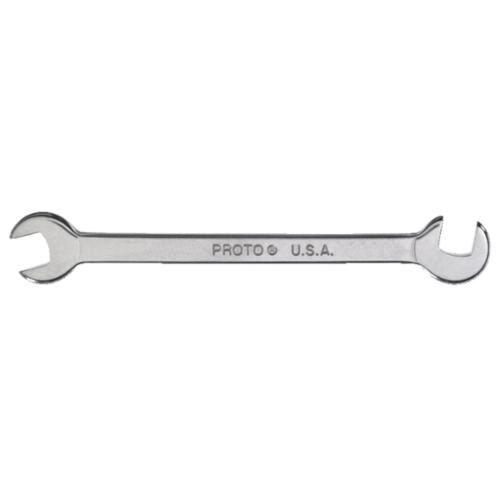

Proto Tools 15/64" SHORT ANGLE OPEN END WRENCH PRO J-3315
Proto® J3315 Short Open End Wrench, 15/64 in Wrench, Angled/Double Head, 3 in L, Alloy Steel, Satin, ASME B107.100
-
BrandProto®
-
UPC662679050443
-
Manufacturer Part NumberJ3315
-
CountryUSA|Canada
-
Finish/CoatingSatin
-
MaterialAlloy Steel
-
Throat Depth11/64 in
-
Measurement SystemImperial
-
TypeShort
-
Handle TypeFlat
-
Head Angle15/75 deg
-
Head TypeAngled/Double
-
Wrench Opening15/64 in
-
Specifications MetASME B107.100
-
Open End Thickness7/64 in
-
Open End Width1/2 in
-
Overall Length3 in
- Satin finish provides corrosion resistance and a slip-resistant grip
- 15 deg and 75 deg angle heads allow wrench to be used in four different turning angles for greater access in tight work spaces
- Compact shank design and short length for access in confined spaces
- Standard open end configuration
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1ANN4 |
| Grainger | 1ANN4 |
-
UNSPSC27111706
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.100
-
