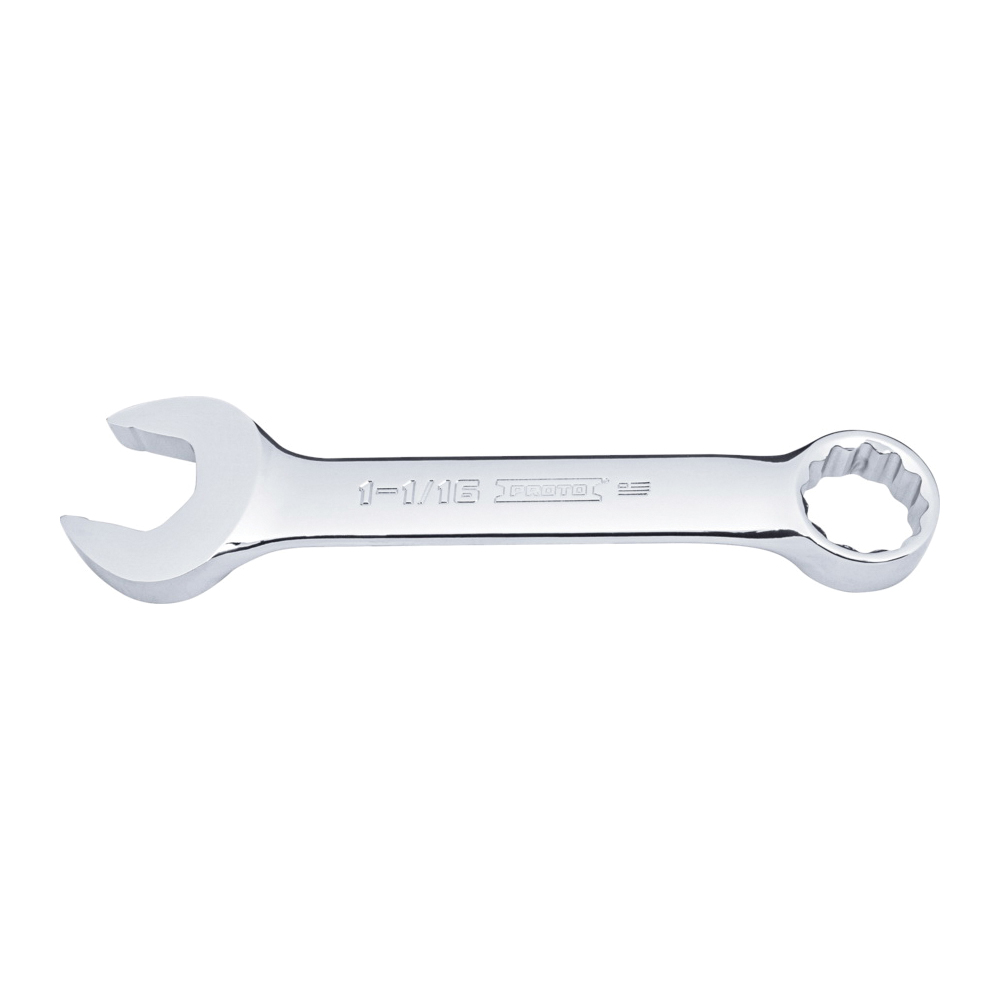

Proto Tools 1-1/16" SHORT COMBINATION WRENCH PRO J-1234-S
Proto® TorquePlus™ J1234S 1-Piece Short Straight Wrench, 1-1/16 in Wrench, 12 Points, 15 deg Offset, 6-19/32 in OAL, Alloy Steel, Polished Chrome, ASME B107.100-2010/AS4984A/AS954G
-
BrandProto®
-
UPC662679174989
-
Manufacturer Part NumberJ1234S
-
CountryUSA
-
Finish/CoatingPolished Chrome
-
Tether ReadyYes
-
MaterialAlloy Steel
-
Throat Depth1-17/64 in
-
Measurement SystemImperial
-
Type1-Piece Short Straight
-
Head Angle15 deg
-
Wrench Opening1-1/16 in
-
Wrench TypeOffset
-
Number of Points12
-
Specifications MetASME B107.100-2010/AS4984A/AS954G
-
Offset Angle15 deg
-
Open End Thickness15/32 in
-
Open End Width2-13/64 in
-
Overall Length6-19/32 in
-
Box End Thickness41/64 in
-
Box End Width1-19/32 in
- Full polish wrench meet and exceed stringent aerospace specification AS4984A which require tool to have a thicker nickel chrome coating for greater corrosion resistance
- Twelve point box end is countersunk for easy application to the fastener, helping to improve speed and access
- 15 deg angled offset help keep shank clear of obstruction
- Anti-slip design open end
- Box end incorporate the TorquePlus™ system
- The wrench self align with the fastener
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 483K02 |
-
UNSPSC27111713
-
Package DescriptionEACH
-
WarrantyLimited
