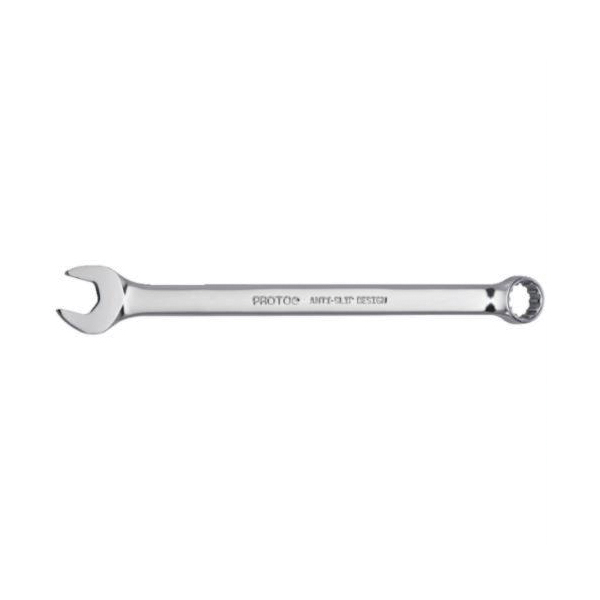

Proto Tools COMBINATION WRENCH J-1232-SPL
Proto® J1232SPL Combination Wrench, Imperial, 1 in, 12 Points, 15 deg Offset, 14-1/16 in OAL, Alloy Steel, Full Polished, ASME B107.100
-
BrandProto®
-
UPC662679988197
-
Manufacturer Part NumberJ1232SPL
-
CountryUSA|Canada
-
Finish/CoatingFull Polished
-
MaterialAlloy Steel
-
Throat Depth1-1/16 in
-
Measurement SystemImperial
-
Head Angle15 deg
-
Wrench Opening1 in
-
Wrench TypeSpline
-
Number of Points12
-
Specifications MetASME B107.100
-
Offset Angle15 deg
-
Open End Thickness25/64 in
-
Open End Width2-3/32 in
-
Overall Length14-1/16 in
-
Box End Thickness37/64 in
-
Box End Width1-29/64 in
- Spline fasteners help tighten high strength bolts to high torque loads
- They help lower the force required to turn standard fasteners by allowing the torque load to be moved away from the corners, helping prevent fastener rounding
- They also turn fasteners with damaged corners
- Spline helps reduce foreign object debris by having a precise fit between the fastening tool and its fastener
- Full polish finish provides corrosion resistance and an easy-to-clean surface
- Anti-slip design (ASD) open end
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 19C583 |
-
UNSPSC27111713
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.100
-
