Proto Tools 6-MM 12-PT COMBINATION GEARWRENCH PRO J-SC-V-M-06-T

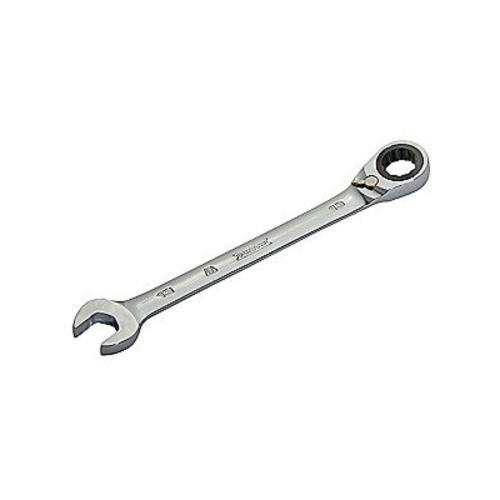

Proto® JSCVM06T Reversible Spline Combination Wrench, 6 mm, 12 Points, 15 deg Offset, 5 in OAL, Forged Steel, Full Polished, ASME Specified
-
BrandProto®
-
UPC662679114626
-
Manufacturer Part NumberJSCVM06T
-
CountryUSA|Canada
-
Finish/CoatingFull Polished
-
MaterialForged Steel
-
Measurement SystemMetric
-
TypeReversible Spline
-
Wrench Opening6 mm
-
Number of Geared Teeth72
-
Wrench TypeRatcheting
-
Number of Points12
-
Specifications MetASME Specified
-
Offset Angle15 deg
-
Open End Thickness1/8 in
-
Open End Width9/16 in
-
Overall Length5 in
-
Box End Thickness1/8 in
-
Box End Width35/64 in
- Metric spline wrenches can be used on metric 4, 6, 12 point, spline and Torx® fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Full polish finish provides corrosion resistance and easy to clean surfaces
- Box end is countersunk for easy application to the fastener
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 22DH48 |
-
UNSPSC27111713
-
Package DescriptionEACH
