Proto Tools 5/8" 12-PT COMBINATION GEARWRENCH PRO J-SC-V-20-T

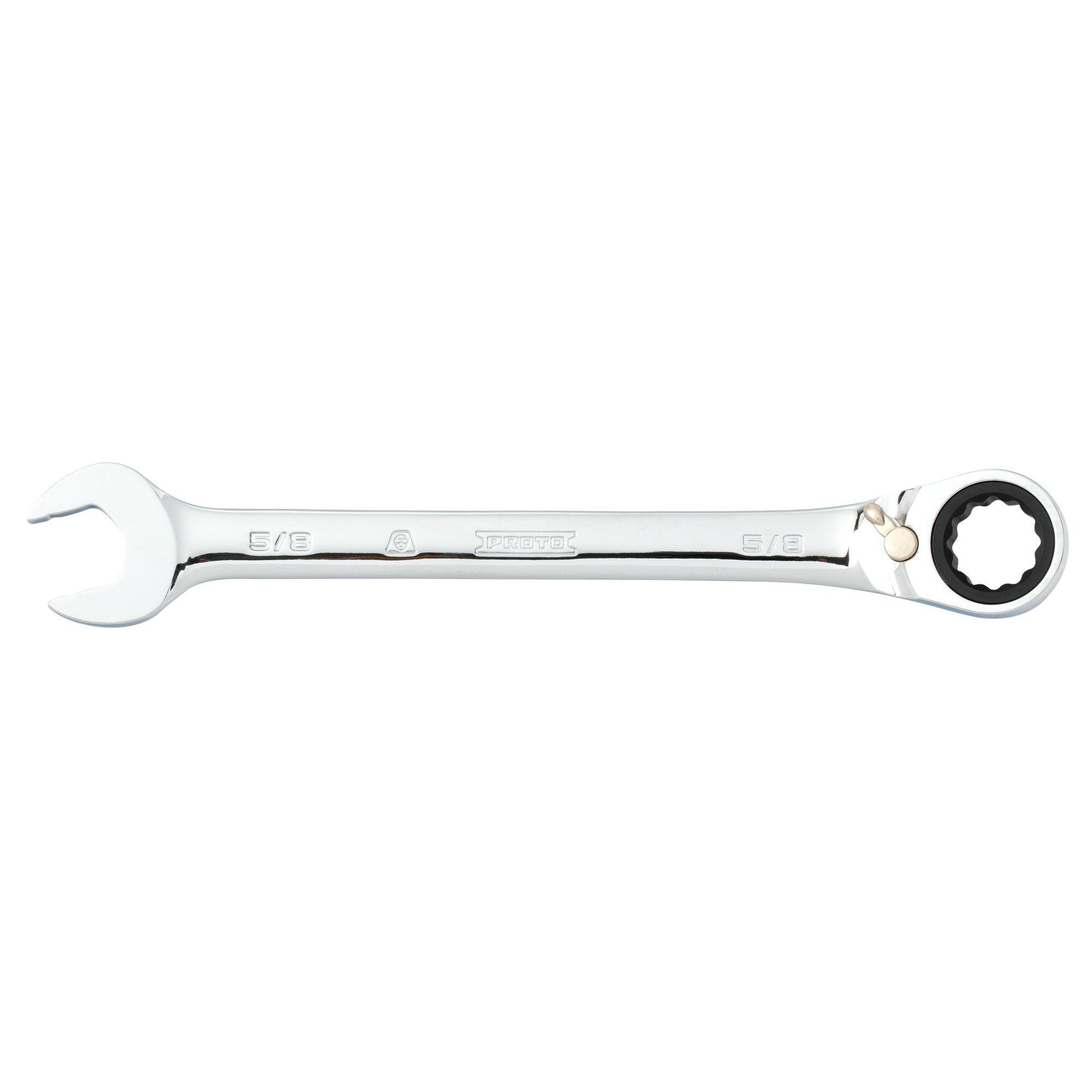

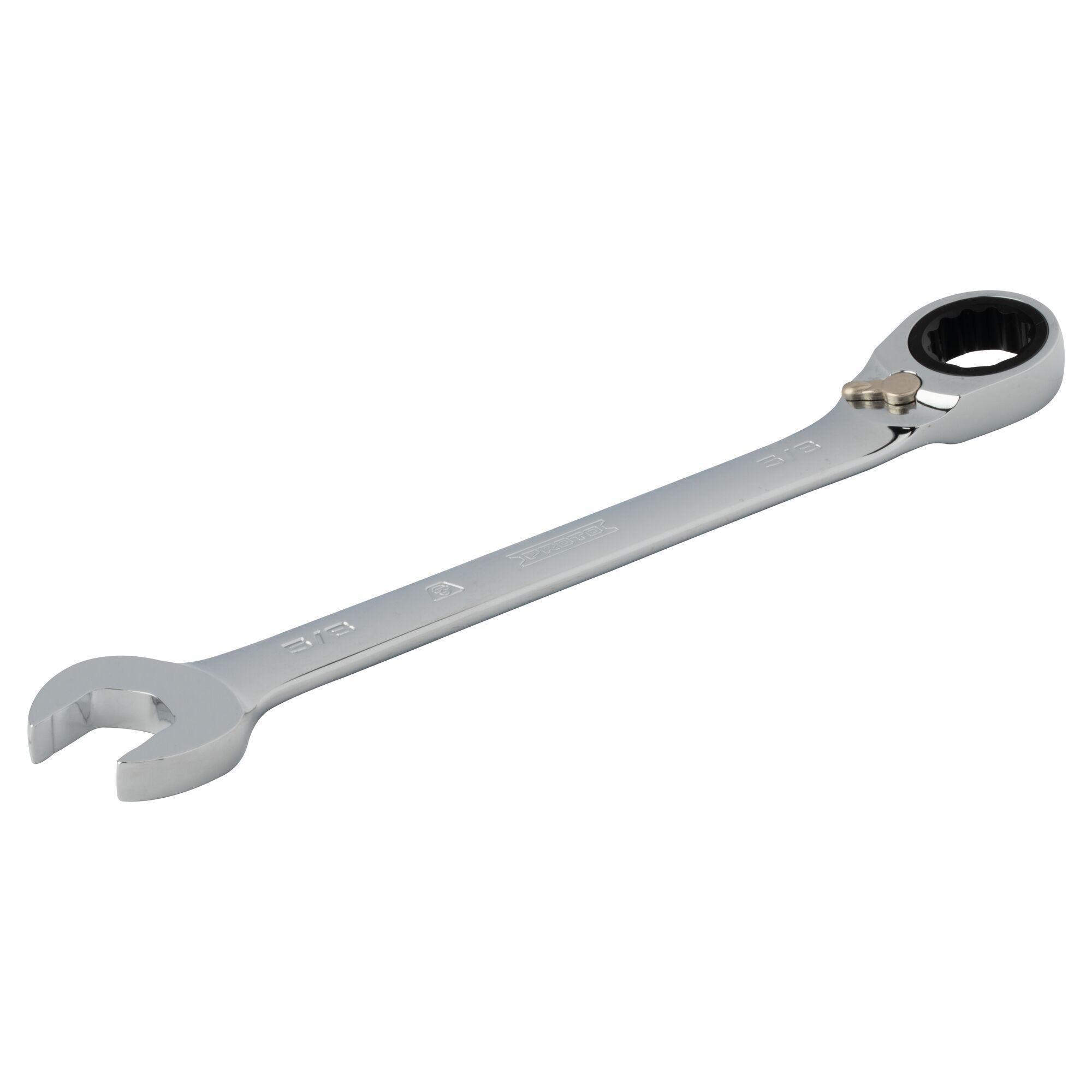

Proto® JSCV20T Reversible Spline Combination Wrench, 5/8 in, 12 Points, 15 deg Offset, 8-3/16 in OAL, Forged Steel, Full Polished, ASME Specified
-
BrandProto®
-
UPC662679114510
-
Manufacturer Part NumberJSCV20T
-
CountryUSA|Canada
-
Finish/CoatingFull Polished
-
MaterialForged Steel
-
Measurement SystemImperial
-
TypeReversible Spline
-
Wrench Opening5/8 in
-
Number of Geared Teeth72
-
Wrench TypeRatcheting
-
Number of Points12
-
Specifications MetASME Specified
-
Offset Angle15 deg
-
Open End Thickness3/16 in
-
Open End Width1-5/16 in
-
Overall Length8-3/16 in
-
Box End Thickness3/16 in
-
Box End Width1-3/16 in

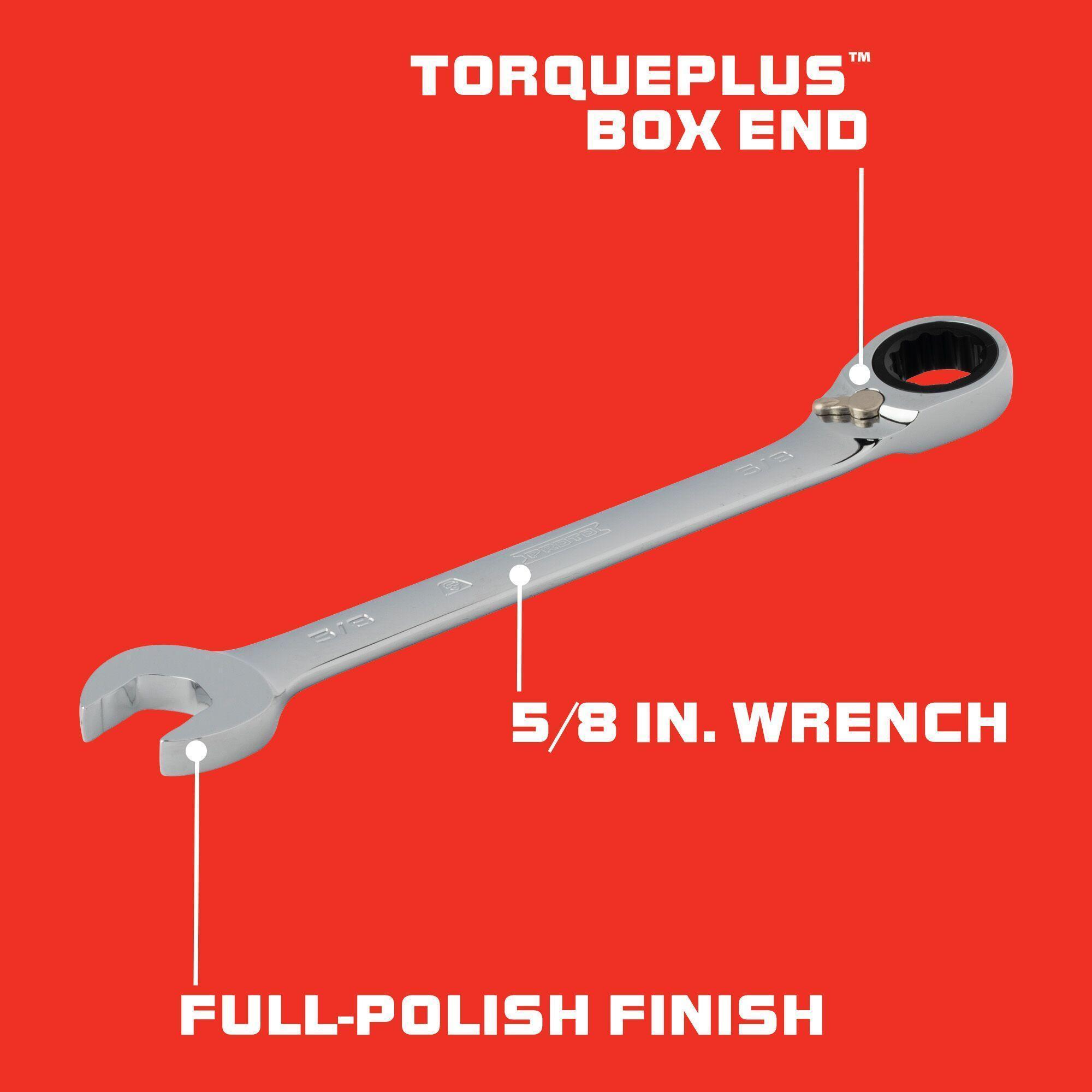

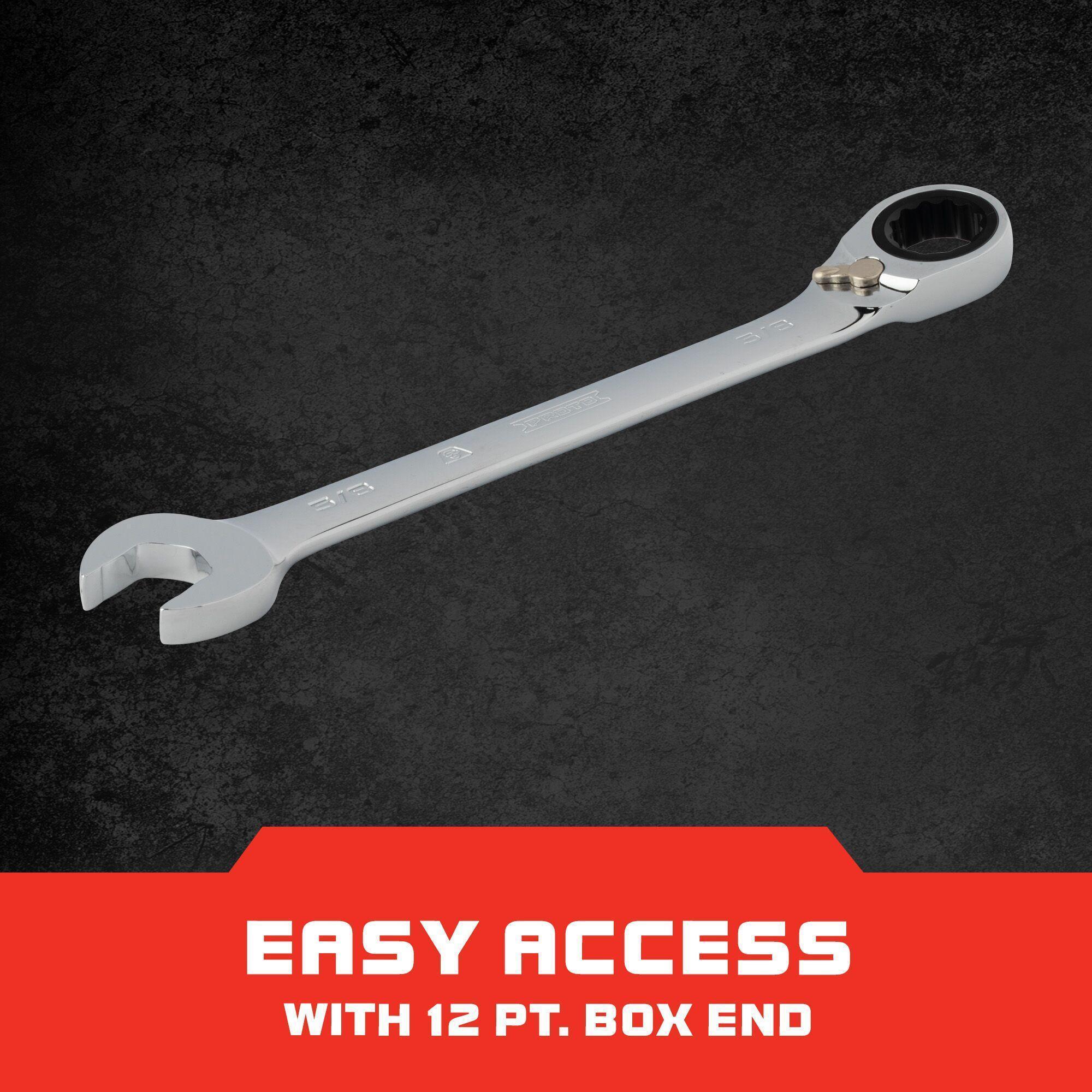

- Box end allows for fine indexing, helping to improve speed and access
- The wrench self aligns with the fastener
- Full polish finish provides corrosion resistance and easy to clean surfaces
- Fractional spline wrenches can be used on fractional 4, 6, 12 point, spline and Torx fasteners
- The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
- 15 deg angled offset box end helps keep shank clear of obstructions
- Anti-slip design (ASD) open end
- Box end is countersunk for easy application to the fastener
- Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
- Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
- The high contact surface area which is away from fastener points enables turning of highly rounded fasteners
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4215830 |
| Berkshire eSupply | KP4215830 |
| Berkshire eSupply | KP4215830 |
-
Alternative Part Number16730473
-
UNSPSC27111713
-
IDEA Index ID16730473
-
Package DescriptionEACH
