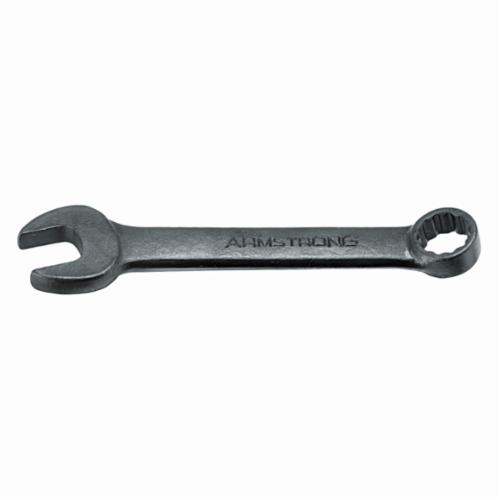

Armstrong® 30-222 Long Length Open End Combination Wrench, 11/16 in, 12 Points, 15 deg Offset, 10-1/4 in OAL, High Alloy Steel, Black Oxide, ASME B107.6-1994
Armstrong® 30-222 Long Length Open End Combination Wrench, 11/16 in, 12 Points, 15 deg Offset, 10-1/4 in OAL, High Alloy Steel, Black Oxide, ASME B107.6-1994
-
BrandArmstrong®
-
UPC781412302226
-
Manufacturer Part Number30-222
-
CountryUSA
-
Finish/CoatingBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeLong Length Open End
-
Handle TypeFlat
-
Head Angle15 deg
-
Wrench Opening11/16 in
-
Number of Points12
-
Specifications MetASME B107.6-1994
-
Offset Angle15 deg
-
Open End Thickness0.31 in
-
Open End Width1.43 in
-
Overall Length10-1/4 in
-
Box End Thickness0.44 in
-
Box End Width1.01 in
- Box ends incorporate a radius corner design that engages the flats of the fastener, not the corners, providing up to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- Box ends are offset a true 15 deg for clearing obstructions and knuckle clearance on flat surfaces
- The shank to box end transition area is also reinforced to provide greater strength
- Open end has a radius design for greater strength, especially when compared to a hex open end
- Large size stamp on both sides of the wrench for ease in identification
- Black oxide finish provides smooth edges with an industrial finish
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 87001574 |
-
UNSPSC27111713
-
Standards/ApprovalsUS Federal Specification GGG-W-636E
-
