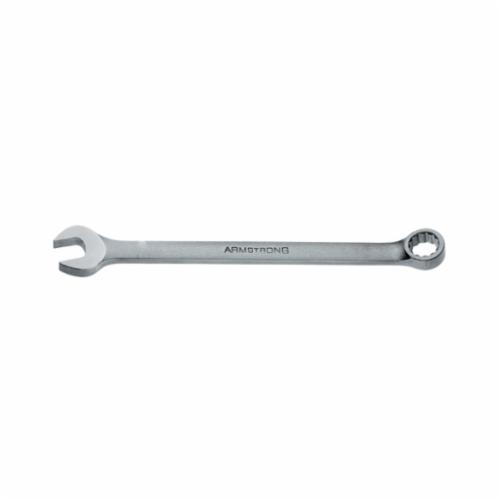

Armstrong® 25-242 Long Length Open End Combination Wrench, 1-5/16 in, 12 Points, 15 deg Offset, 20-1/8 in OAL, High Alloy Steel, Satin Chrome, ASME B107.6-1994
Armstrong® 25-242 Long Length Open End Combination Wrench, 1-5/16 in, 12 Points, 15 deg Offset, 20-1/8 in OAL, High Alloy Steel, Satin Chrome, ASME B107.6-1994
-
BrandArmstrong®
-
UPC781412252422
-
Manufacturer Part Number25-242
-
CountryUSA
-
Finish/CoatingSatin Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeLong Length Open End
-
Wrench Opening1-5/16 in
-
Number of Points12
-
Specifications MetASME B107.6-1994
-
Offset Angle15 deg
-
Open End Thickness1/2 in
-
Open End Width2.703 in
-
Overall Length20-1/8 in
-
Box End Thickness0.844 in
-
Box End Width2 in
- Box ends incorporate a radius corner design that engages the flats of the fastener, not the corners, providing up to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- Box ends are offset a true 15 deg for clearing obstructions and knuckle clearance on flat surfaces
- The shank to box end transition area is also reinforced to provide greater strength
- Open end has a radius design for greater strength, especially when compared to a hex open end
- Large size stamp on both ends of the wrench and both sides of the wrench for ease in identification
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
- Satin chrome finish provides smooth edges with a bright appearance
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 88565361 |
-
UNSPSC27111713
-
Standards/ApprovalsUS Federal Specification GGG-W-636E
