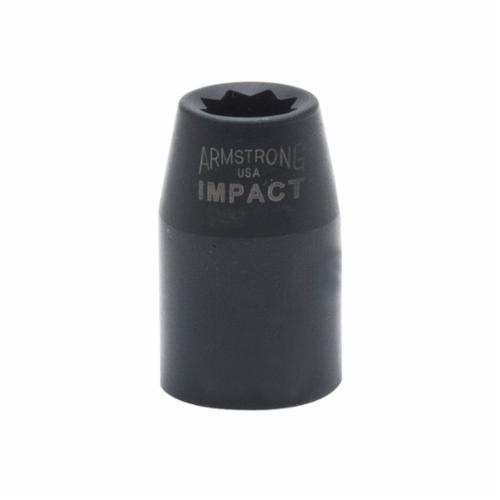

Armstrong® 20-416 Standard Length Socket, 1/2 in Square Drive, 1/2 in, 8 Points
Armstrong® 20-416 Standard Length Socket, 1/2 in Square Drive, 1/2 in, 8 Points
-
BrandArmstrong®
-
UPC781412204162
-
Manufacturer Part Number20-416
-
CountryUSA
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points8
-
Socket End Width0.94 in
-
Socket Size1/2 in
-
Opening Depth0.344 in
-
Drive End Width1 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth0.359 in
-
Overall Length1-1/2 in
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 93606796 |
-
UNSPSC27112828
-
Package Description1/SHELF PK
-
Standards/ApprovalsASME B107.2-2002|US Federal Specification GGG-W-660A
-
