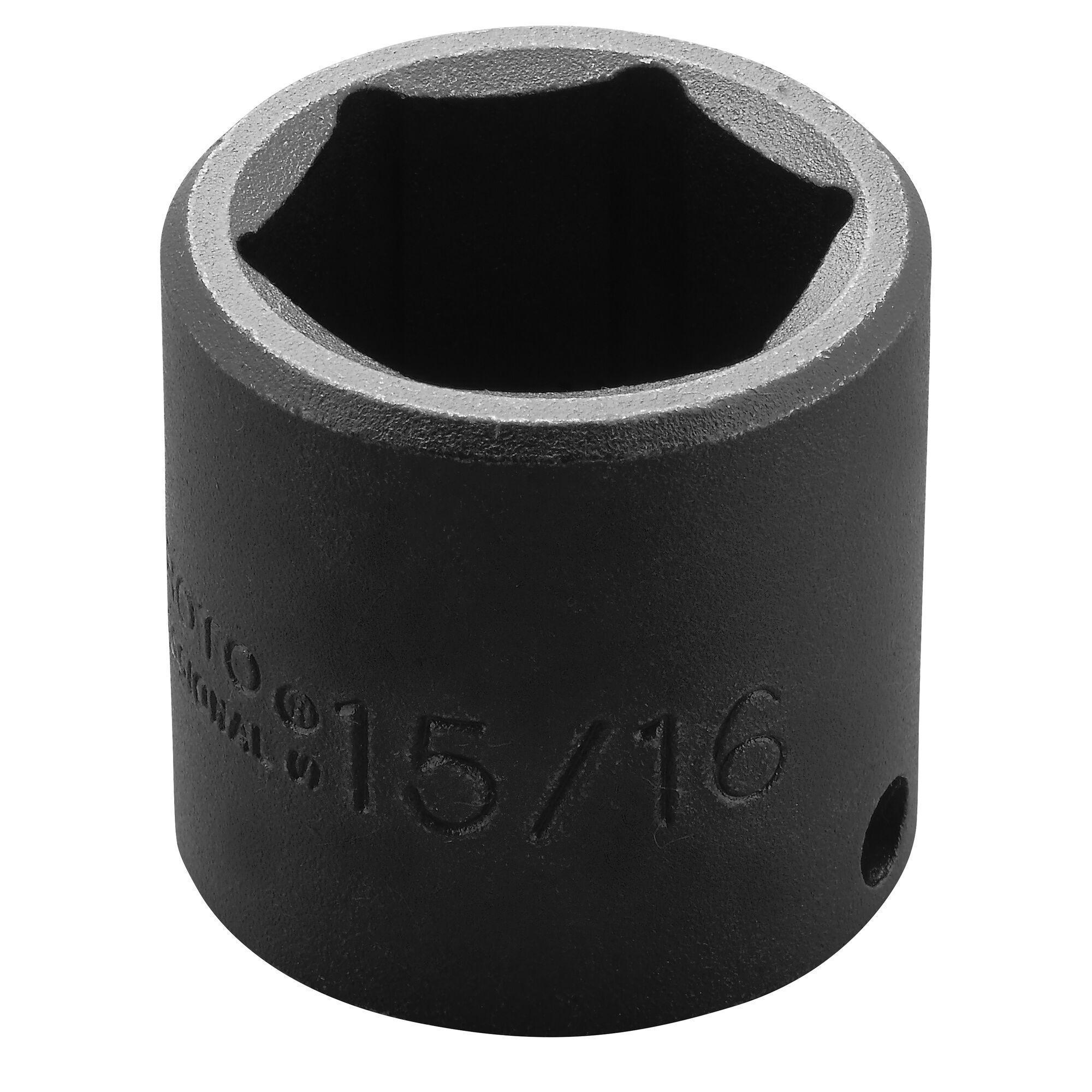

Proto Tools 15/16" 6-PT 3/8"-DR IMPACT SOCKETS PRO J-7230-H
Proto® TorquePlus™ J7230H Standard Length Socket, Imperial, 3/8 in Square Drive, 15/16 in
-
BrandProto®
-
UPC662679331146
-
Manufacturer Part NumberJ7230H
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width1-23/64 in
-
Socket Size15/16 in
-
Opening Depth51/64 in
-
Drive End Width1-23/64 in
-
Drive Size3/8 in
-
Drive TypeSquare
-
Bolt Clearance Depth27/32 in
-
Overall Length1-11/32 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Socket size stamped on tool for easy identification
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4205725 |
| Berkshire eSupply | KP4205725 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.2
-
