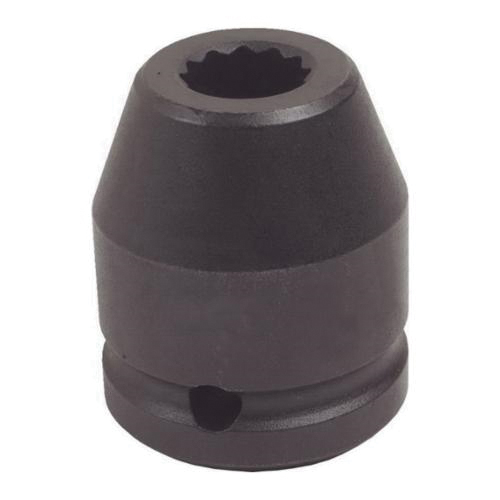

Proto® J07510SS Standard Length Socket, Imperial, 3/4 in Square Drive, 5/8 in
Proto® J07510SS Standard Length Socket, Imperial, 3/4 in Square Drive, 5/8 in
-
BrandProto®
-
UPC662679360153
-
Manufacturer Part NumberJ07510SS
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points4
-
Socket End Width1-1/4 in
-
Socket Size5/8 in
-
Opening Depth25/64 in
-
Drive End Width1-5/8 in
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth15/16 in
-
Overall Length2 in
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- Features two through holes and a groove to accept a Proto® retaining ring or pin and O-ring to help secure the socket to the drive tool anvil
- Stamped size for easy reference
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1ACR3 |
| Grainger | 1ACR3 |
| Grainger | 1ACR3 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012/B107.2
-
