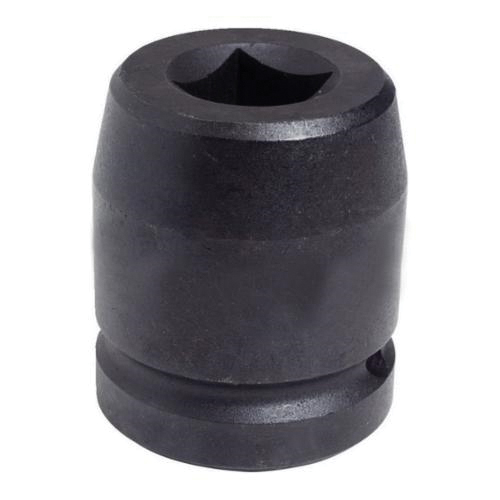

Proto® J10012SS Standard Length Socket, Imperial, 1 in Square Drive, 3/4 in
Proto® J10012SS Standard Length Socket, Imperial, 1 in Square Drive, 3/4 in
-
BrandProto®
-
UPC662679370114
-
Manufacturer Part NumberJ10012SS
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points4
-
Socket End Width1-7/8 in
-
Socket Size3/4 in
-
Opening Depth5/8 in
-
Drive End Width2-1/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-3/8 in
-
Overall Length2-1/2 in
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- Features two through holes and a groove to accept a Proto® retaining ring or pin and O-ring to help secure the socket to the drive tool anvil
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1AFP4 |
| Grainger | 1AFP4 |
| Grainger | 1AFP4 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.2
-
