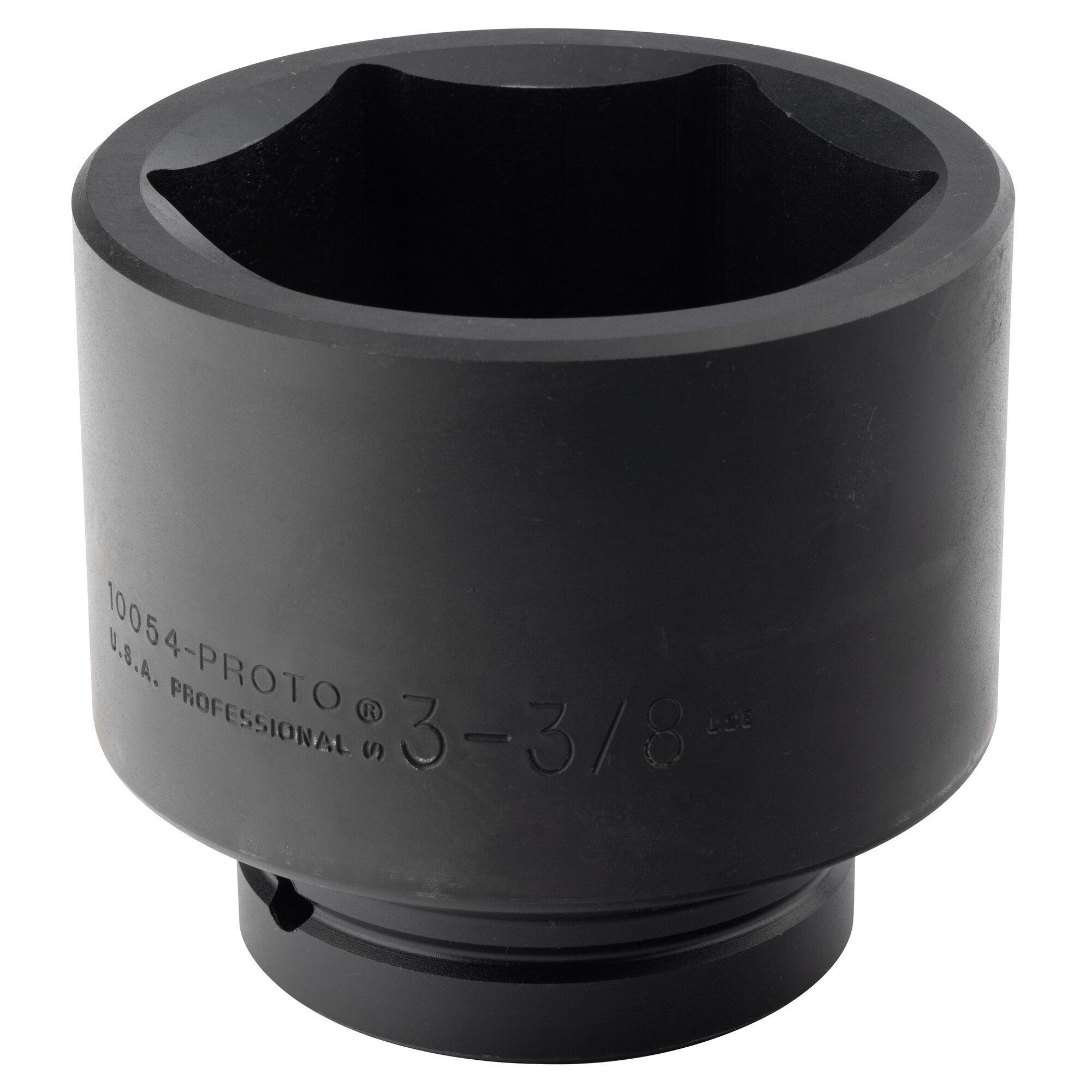

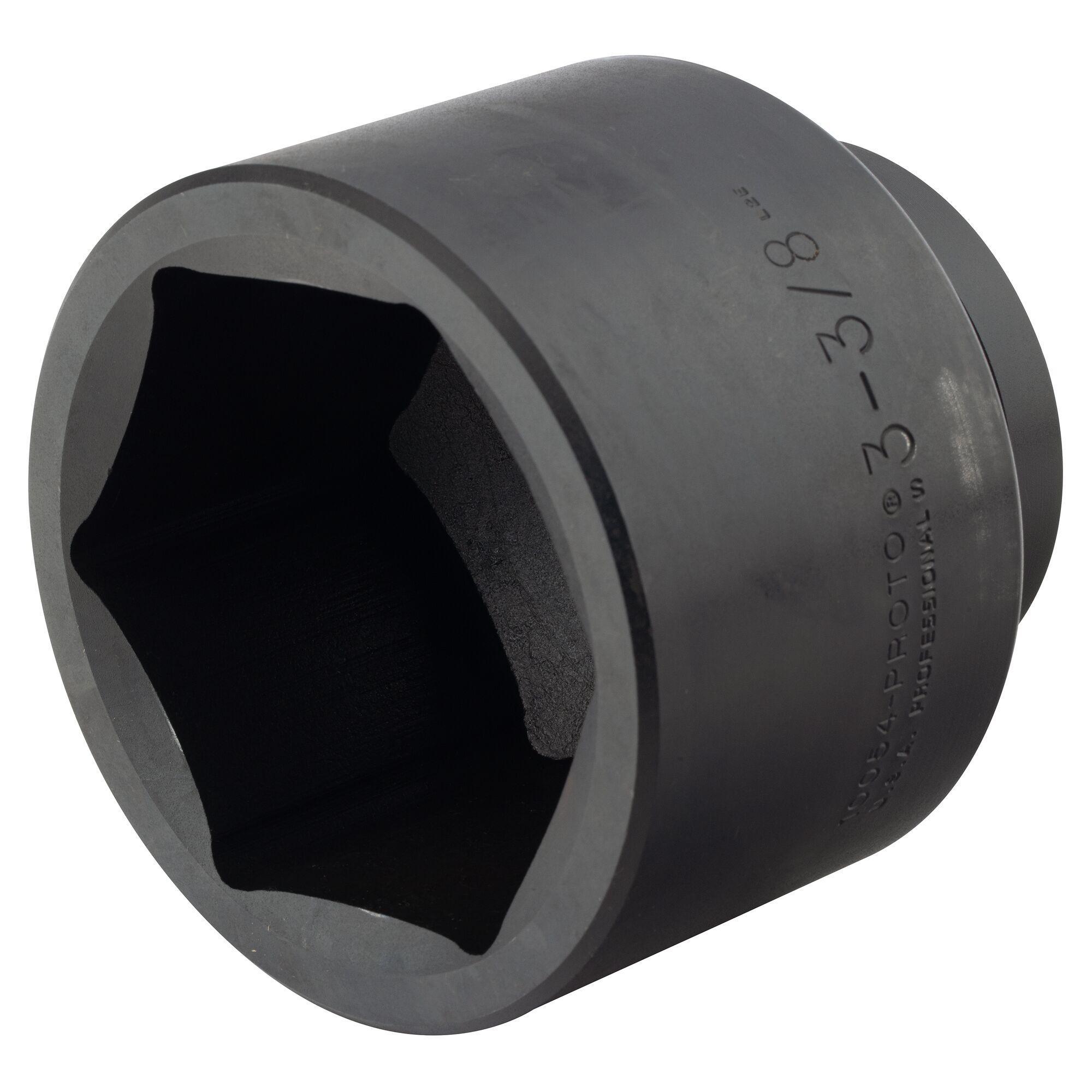

Proto® TorquePlus™ J10054 Standard Length Socket, Imperial, 1 in Square Drive, 3-3/8 in
Proto® TorquePlus™ J10054 Standard Length Socket, Imperial, 1 in Square Drive, 3-3/8 in
-
BrandProto®
-
UPC662679370954
-
Manufacturer Part NumberJ10054
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width4-9/16 in
-
Socket Size3-3/8 in
-
Opening Depth2-1/4 in
-
Drive End Width2-3/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth2-15/32 in
-
Overall Length4-7/16 in

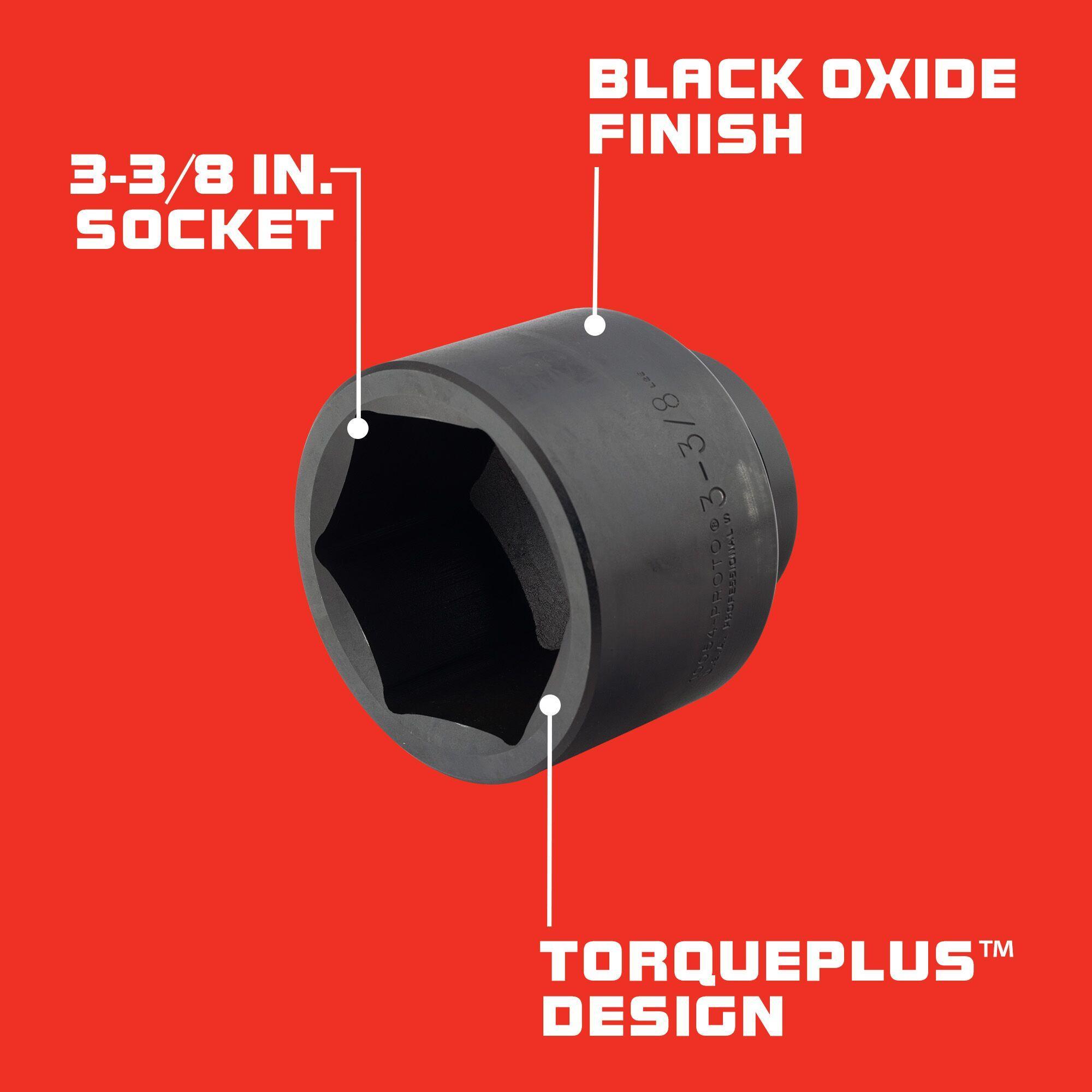

- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage

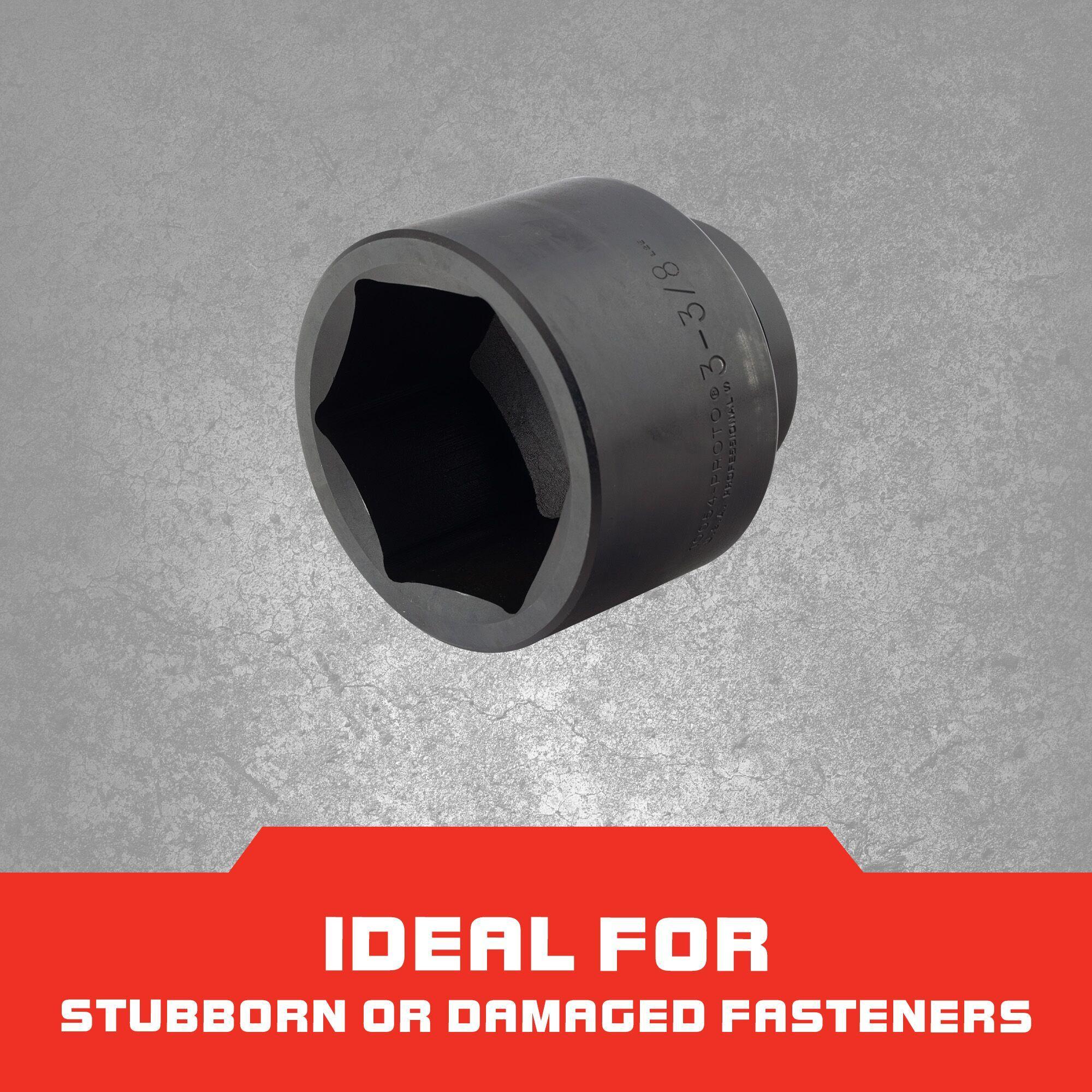

- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1AFK1 |
| Grainger | 1AFK1 |
| Grainger | 1AFK1 |
-
Alternative Part Number16725045
-
UNSPSC27111704
-
IDEA Index ID16725045
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.2
-
