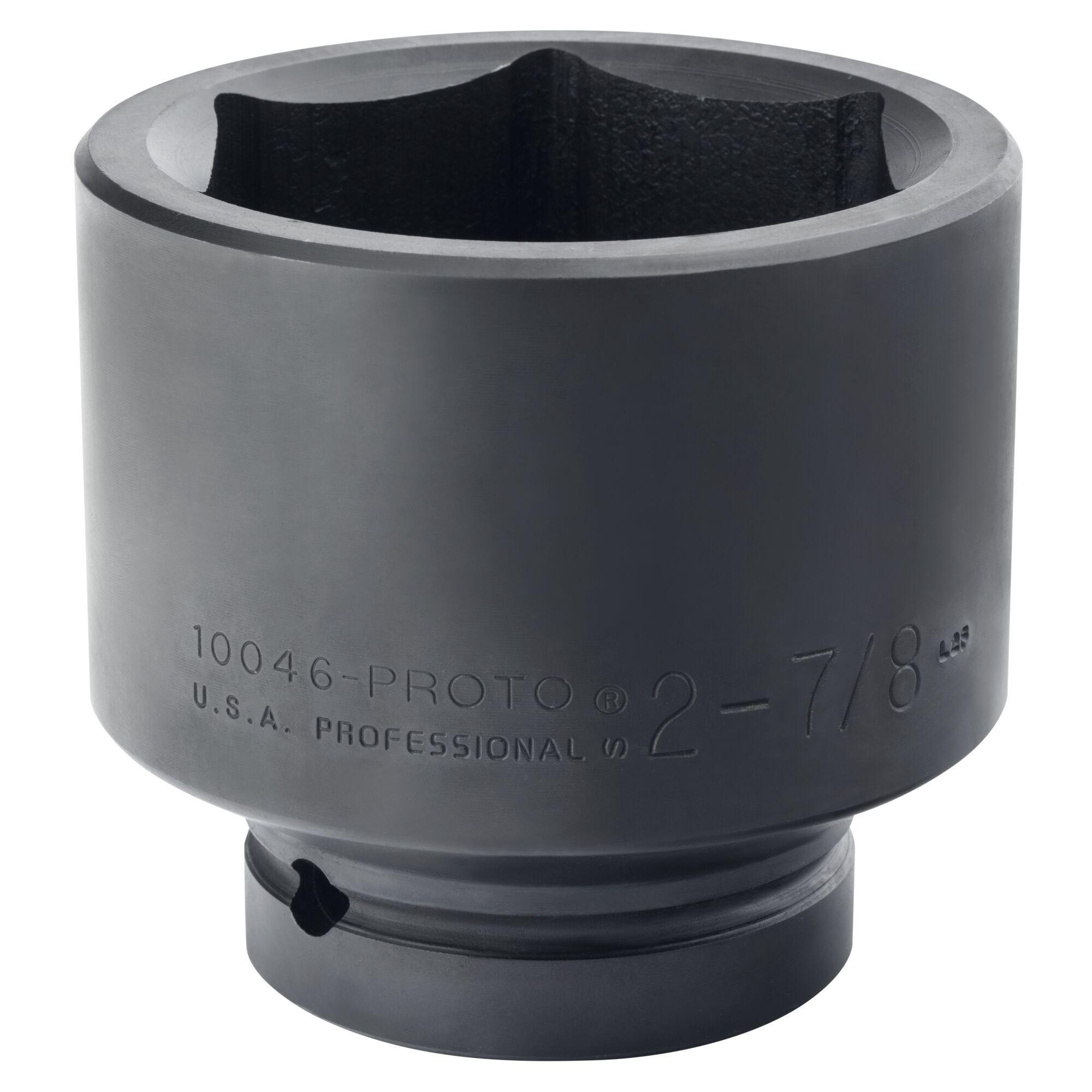

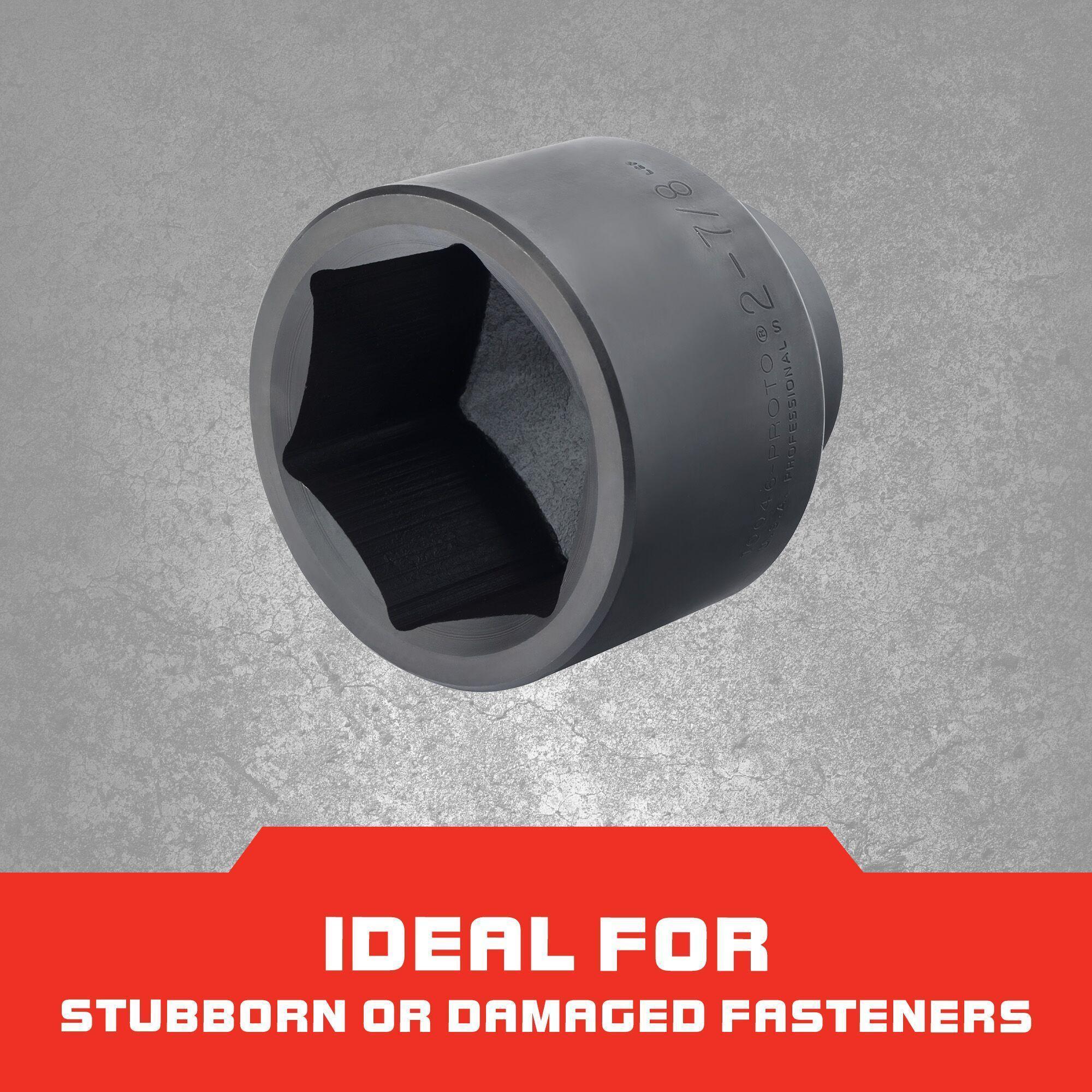

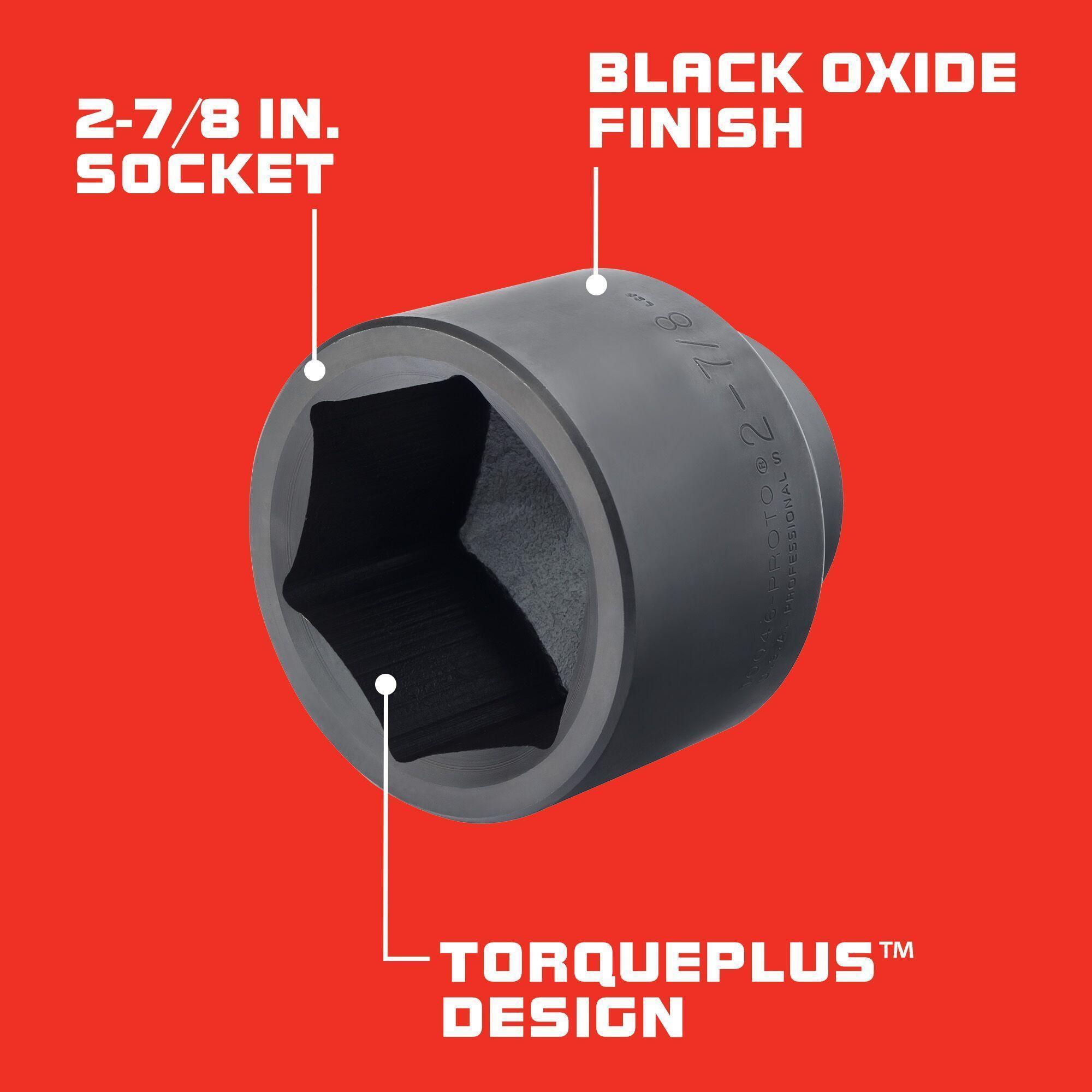

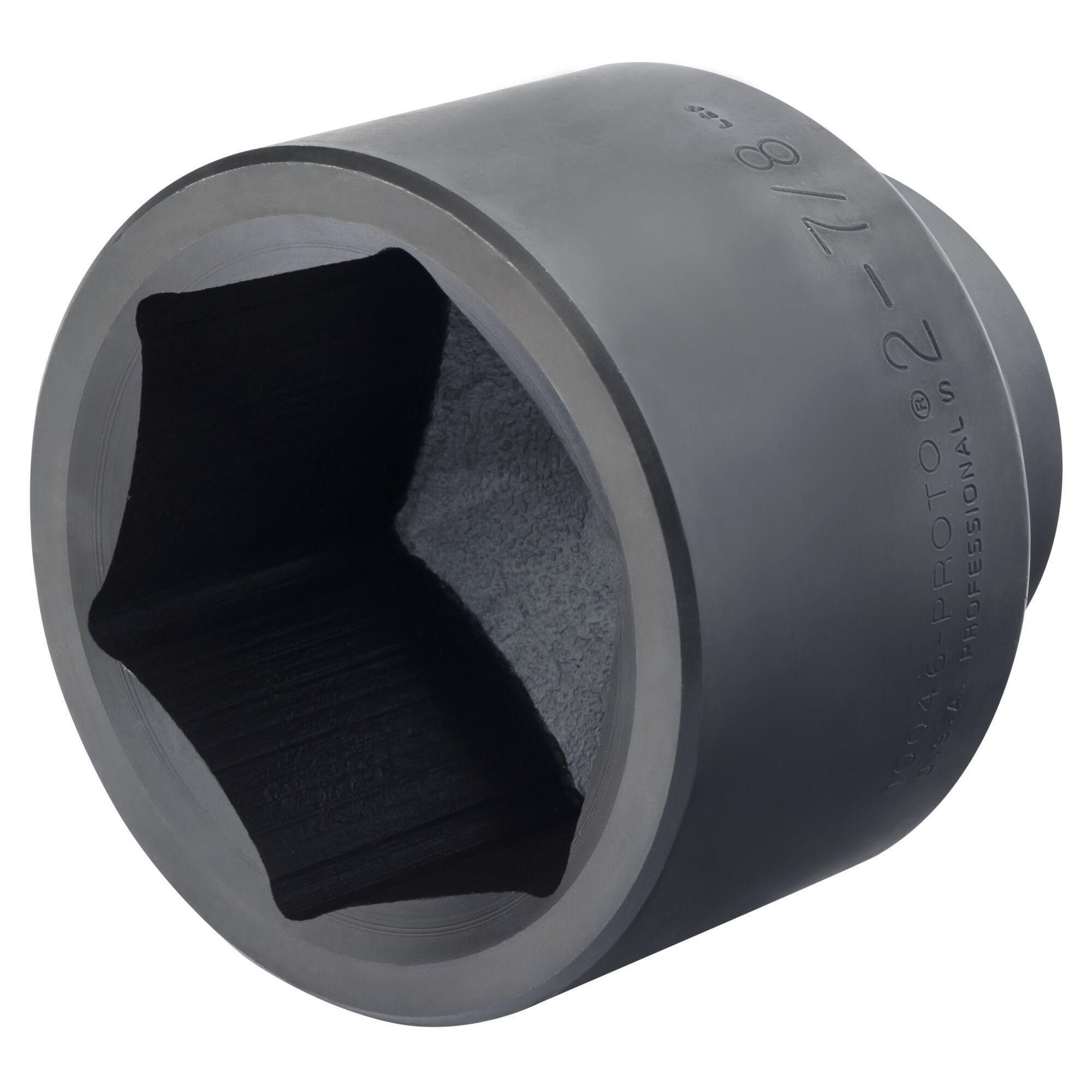

Proto® TorquePlus™ J10046 Standard Length Socket, Imperial, 1 in Square Drive, 2-7/8 in
Proto® TorquePlus™ J10046 Standard Length Socket, Imperial, 1 in Square Drive, 2-7/8 in
-
BrandProto®
-
UPC662679370886
-
Manufacturer Part NumberJ10046
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width4-1/16 in
-
Socket Size2-7/8 in
-
Opening Depth2-5/64 in
-
Drive End Width2-3/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth2-3/4 in
-
Overall Length3-7/8 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Specially heat treated for the correct balance of strength and durability
- Concentric openings
- Large clearance holes
- Tight nut end tolerances
- Made from high alloy steel for greater strength
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1AFH6 |
| Grainger | 1AFH6 |
| Grainger | 1AFH6 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.2|ANSI B107.2
