Proto Tools 1" 4-PT 1"-DRIVE IMPACT SOCKETS PRO J-10016-SS

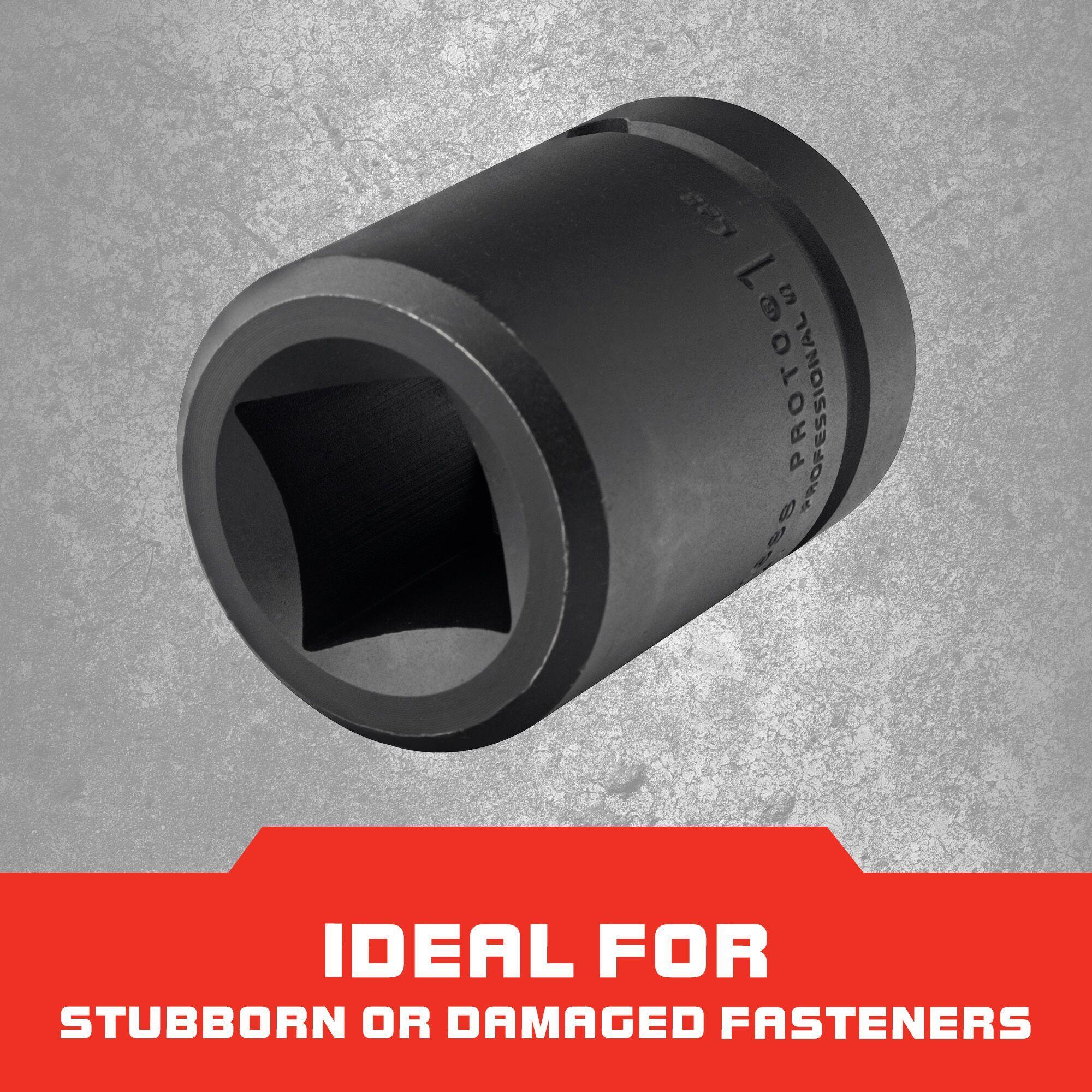

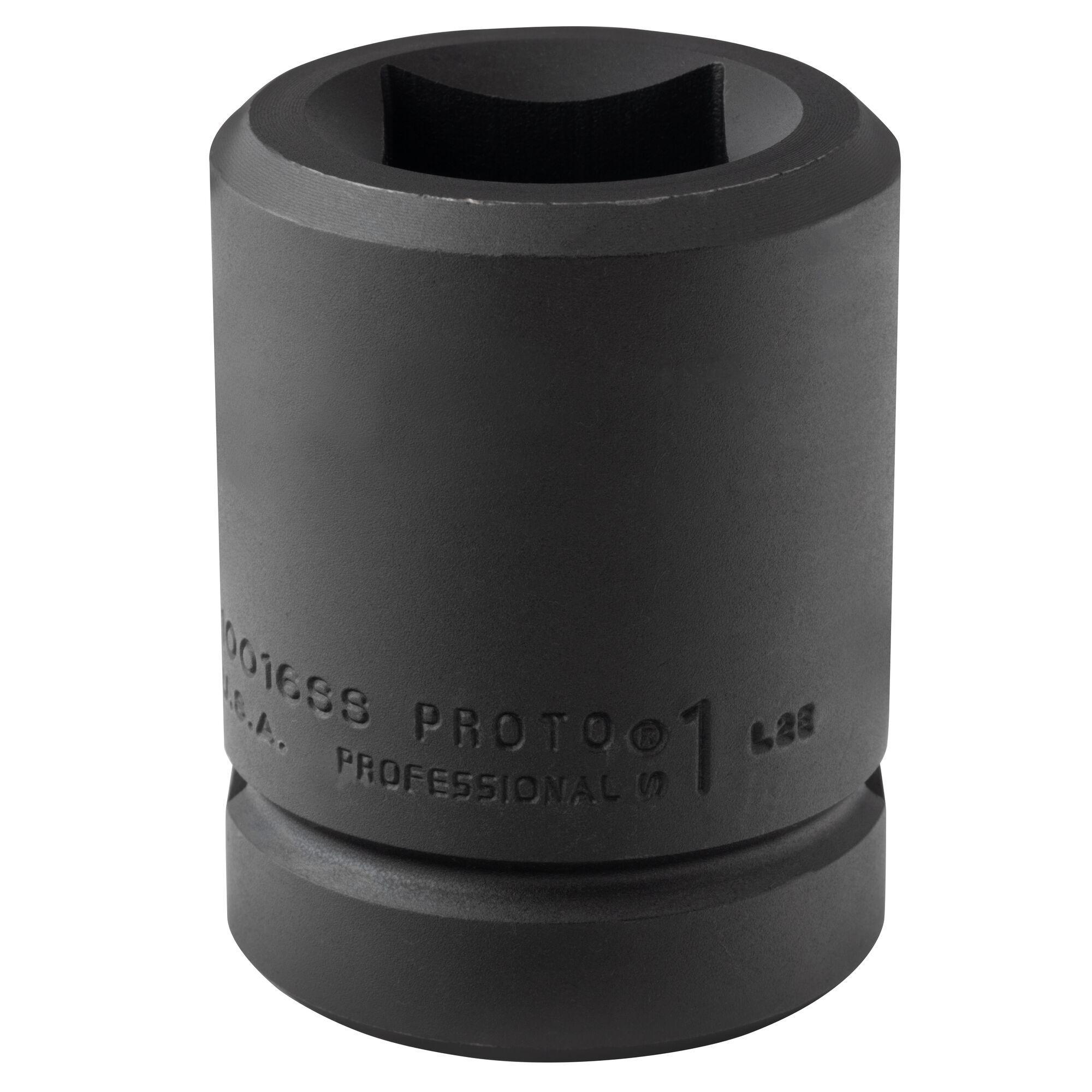

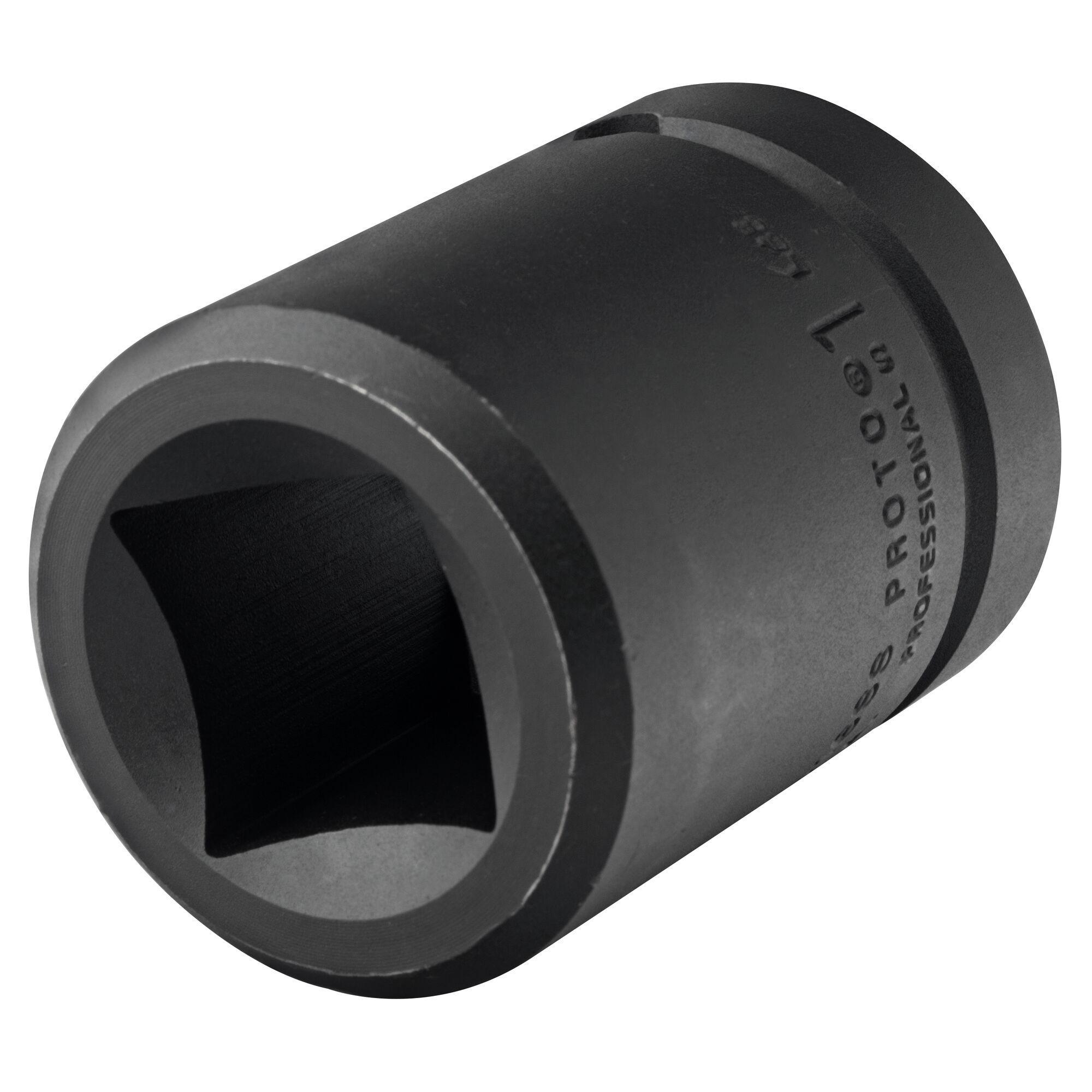

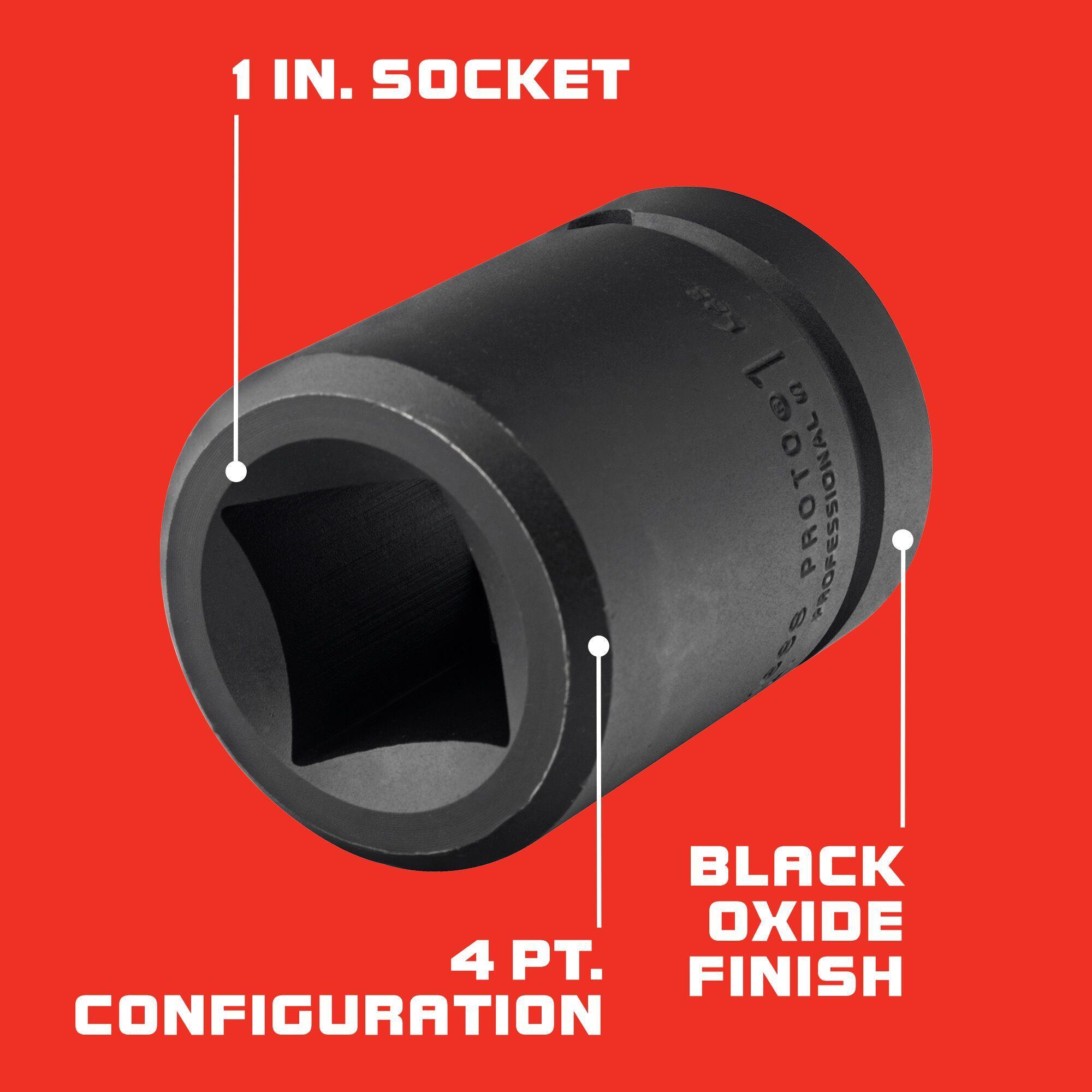

Proto® J10016SS Standard Length Socket, Imperial, 1 in Square Drive, 1 in
-
BrandProto®
-
UPC662679370237
-
Manufacturer Part NumberJ10016SS
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points4
-
Socket End Width2-1/8 in
-
Socket Size1 in
-
Opening Depth11/16 in
-
Drive End Width2-1/8 in
-
Drive Size1 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-3/8 in
-
Overall Length2-1/2 in
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- Features two through holes and a groove to accept a Proto® retaining ring or pin and O-ring to help secure the socket to the drive tool anvil
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1AFP8 |
-
Alternative Part Number16724929
-
UNSPSC27111704
-
IDEA Index ID16724929
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.6|Federal Specification GGG-W-660A
-
