Proto Tools 4-1/2" 6-PT 1-1/2"DR IMPACT SOCKET PRO J-15072
Proto® TorquePlus™ J15072 Standard Length Socket, Imperial, 1-1/2 in Square Drive, 4-1/2 in
-
BrandProto®
-
UPC662679381059
-
Manufacturer Part NumberJ15072
-
CountryUSA|Canada
-
Locking TypeSide Locking Hole
-
FinishBlack Oxide
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedYes
-
Number of Points6
-
Socket End Width6-1/4 in
-
Socket Size4-1/2 in
-
Opening Depth3 in
-
Drive End Width3-1/4 in
-
Drive Size1-1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth3-1/4 in
-
Overall Length6 in

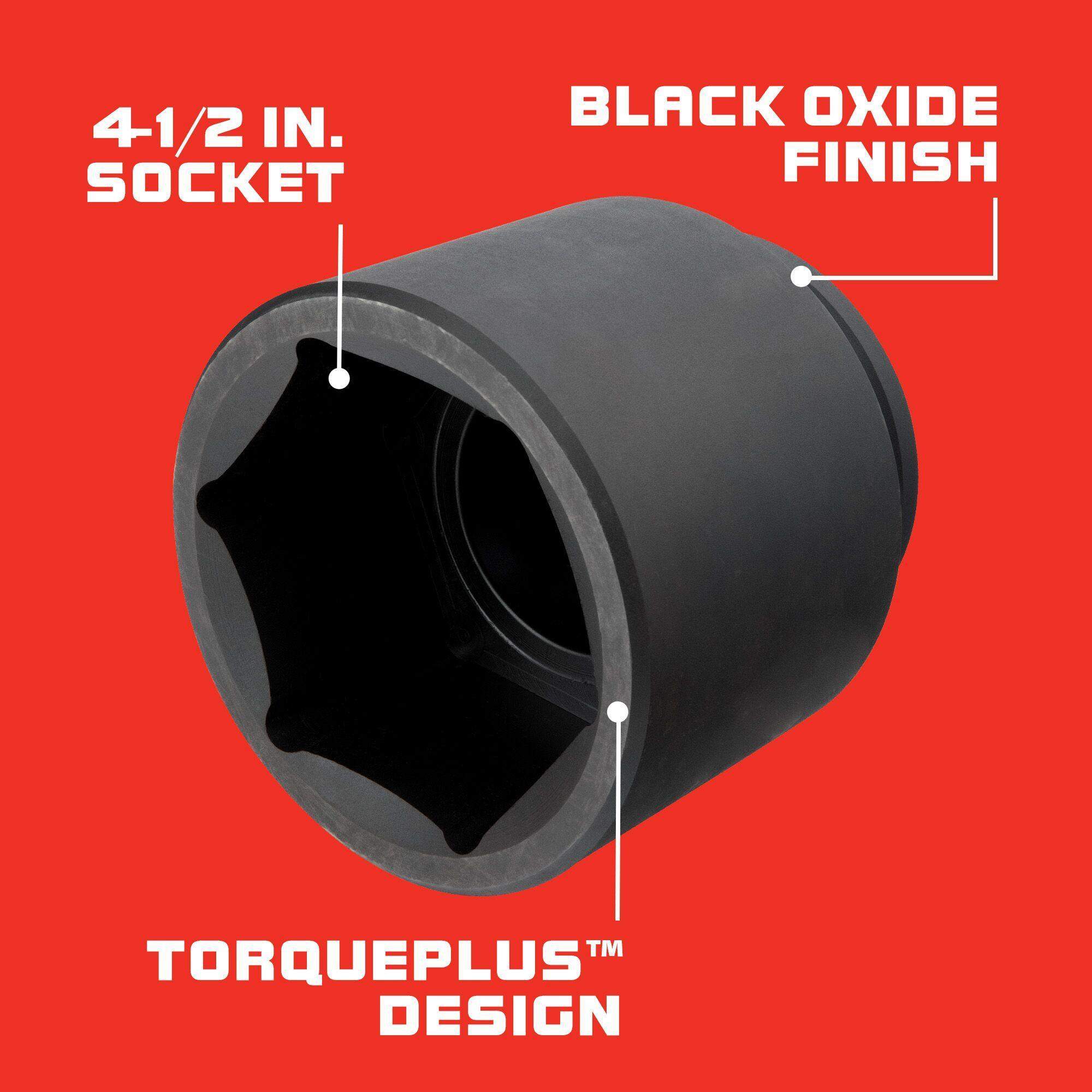

- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Stamped size for easy reference
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1AHK2 |
| Grainger | 1AHK2 |
-
Alternative Part Number16725749
-
UNSPSC27111704
-
IDEA Index ID16725749
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.2
-
