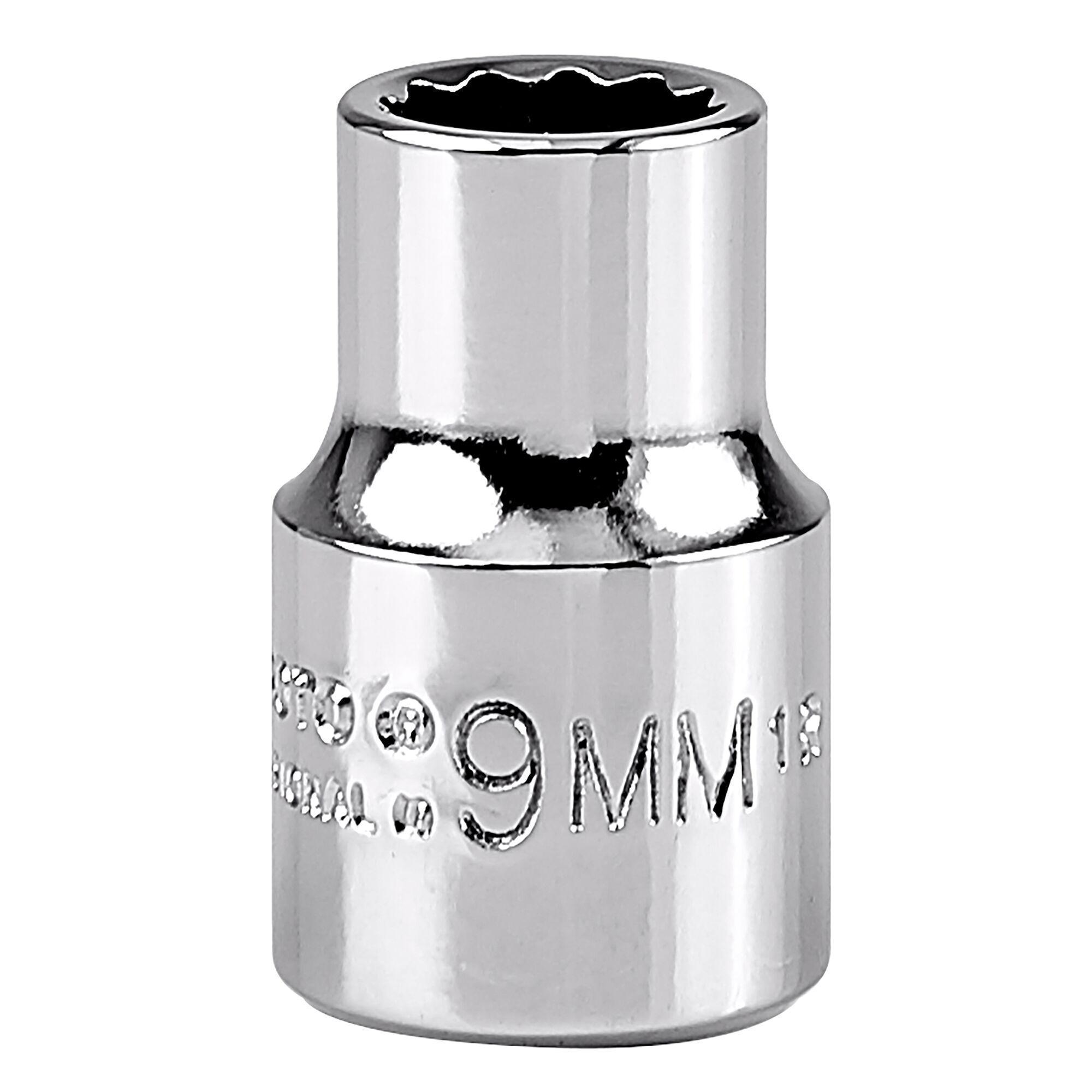

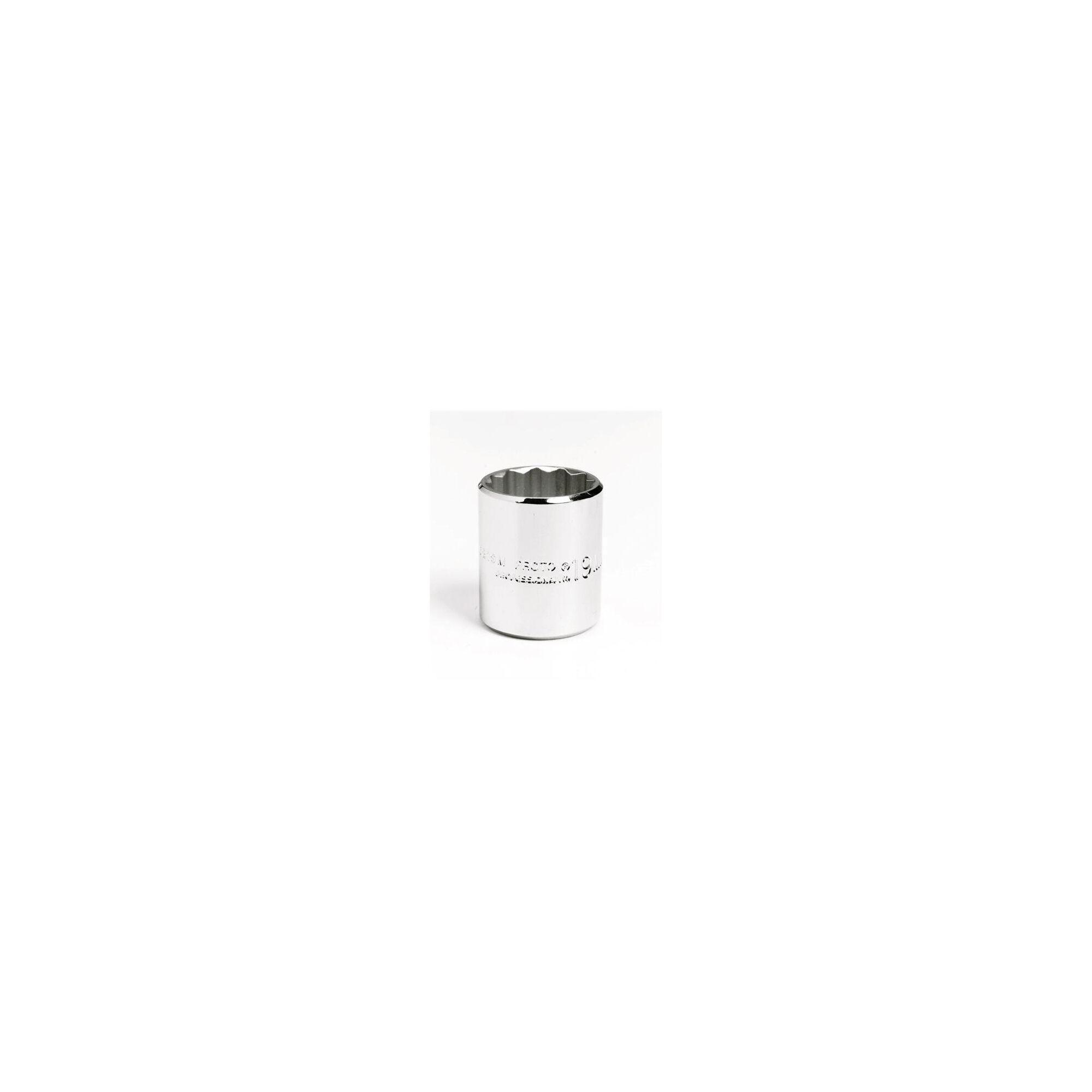

Proto Tools 9-MM 12-PT 3/8"-DRIVE SOCKETS PRO J-5209-M
Proto® TorquePlus™ J5209M Standard Length Socket, Metric, 3/8 in Square Drive, 9 mm
-
BrandProto®
-
UPC662679161255
-
Manufacturer Part NumberJ5209M
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width12.9 mm
-
Socket Size9 mm
-
Opening Depth7 mm
-
Drive End Width17 mm
-
Drive Size3/8 in
-
Drive TypeSquare
-
Bolt Clearance Depth17.8 mm
-
Overall Length27.8 mm
- Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4202690 |
| Berkshire eSupply | KP4202690 |
-
Alternative Part Number16727572
-
UNSPSC27111704
-
IDEA Index ID16727572
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.5M|AS954E S3.8.1
-
