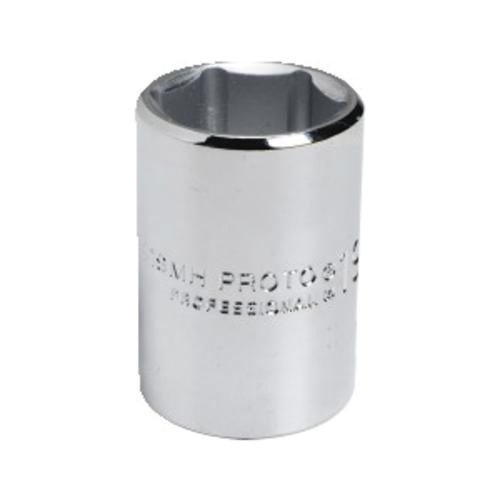

Proto Tools 20-MM 6-PT 1/2"-DR SOCKET PRO J-5420-M-H
Proto® TorquePlus™ J5420MH Standard Length Socket, Metric, 1/2 in Square Drive, 20 mm
-
BrandProto®
-
UPC662679182236
-
Manufacturer Part NumberJ5420MH
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points6
-
Socket End Width27.6 mm
-
Socket Size20 mm
-
Opening Depth17.5 mm
-
Drive End Width27.6 mm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth22 mm
-
Overall Length38.1 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4204135 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.5M
-
