Proto Tools 15-MM 12-PT 1/2"-DRIVE SOCKETS PRO J-5415-M

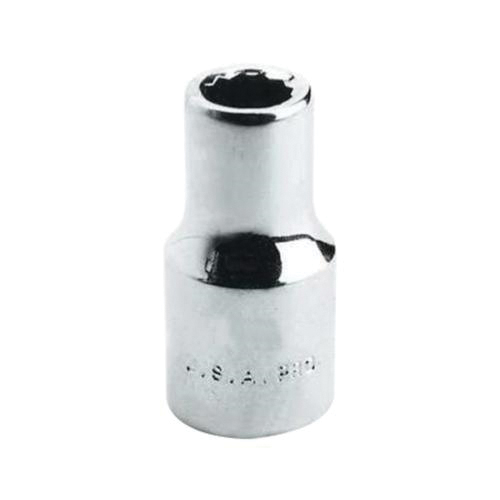

Proto® TorquePlus™ J5415M Standard Length Socket, Metric, 1/2 in Square Drive, 15 mm
-
BrandProto®
-
UPC662679180508
-
Manufacturer Part NumberJ5415M
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width21.8 mm
-
Socket Size15 mm
-
Opening Depth14.5 mm
-
Drive End Width21.8 mm
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth21.1 mm
-
Overall Length36.4 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ design allows more torque to be put on the fastener while reducing fastener rounding and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4203660 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.5|ASME B107.110-2012|ASME B107.5M|AS954E S3.8.1
