Proto Tools 7/16" 3/8"-DRIVE 12-PT SOCKETS PRO J-5214

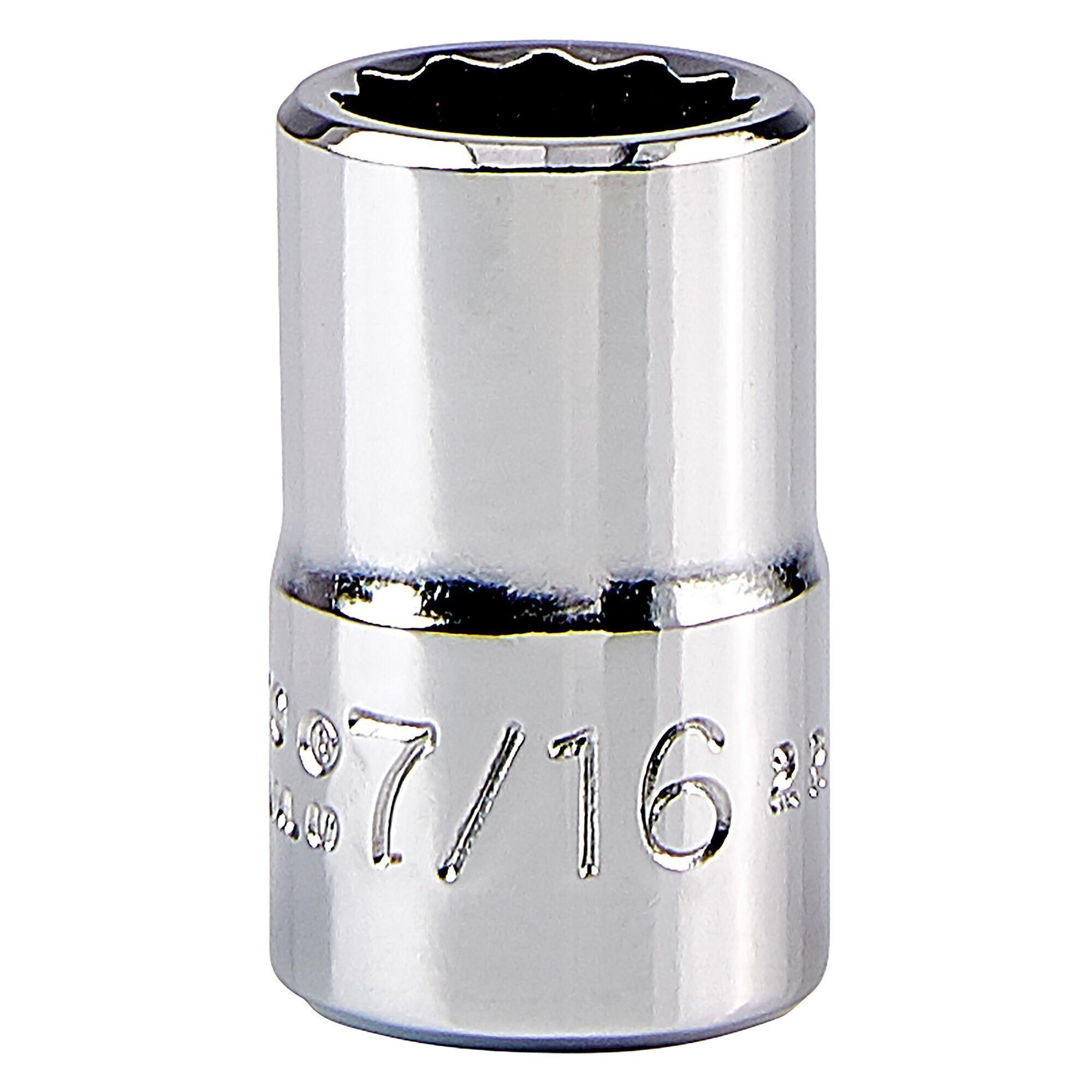

Proto® TorquePlus™ J5214 Standard Length Socket, Imperial, 3/8 in Square Drive, 7/16 in
-
BrandProto®
-
UPC662679161415
-
Manufacturer Part NumberJ5214
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width41/64 in
-
Socket Size7/16 in
-
Opening Depth23/64 in
-
Drive End Width43/64 in
-
Drive Size3/8 in
-
Drive TypeSquare
-
Bolt Clearance Depth21/32 in
-
Overall Length1-3/32 in
- Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus design allows more torque to be put on the fastener while reducing fastener
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | KP4202770 |
| Berkshire eSupply | KP4202770 |
-
Alternative Part Number16727642
-
UNSPSC27111704
-
IDEA Index ID16727642
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.1|ASME B107.110-2012|AS954E S3.8.1|Federal Specification GGG-W-641E
