Proto Tools 2-3/8" 12-PT 3/4"-DRIVE SOCKETS PRO J-5576

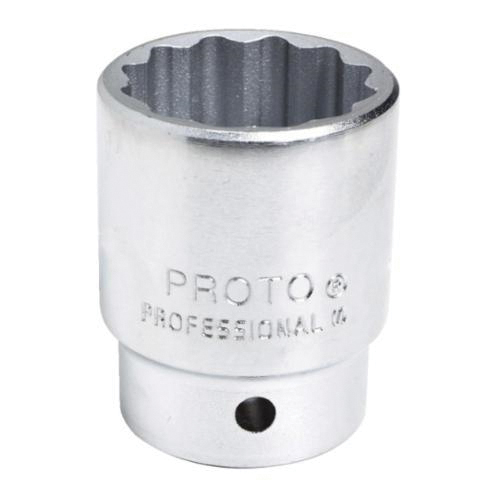

Proto® TorquePlus™ J5576 Standard Length Socket, Imperial, 3/4 in Square Drive, 2-3/8 in
-
BrandProto®
-
UPC662679200596
-
Manufacturer Part NumberJ5576
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishSatin
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width3-17/64 in
-
Socket Size2-3/8 in
-
Opening Depth2-1/8 in
-
Drive End Width2-29/64 in
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth2-3/16 in
-
Overall Length3-43/64 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Ball detent design
- Side locking hole
- TorquePlus™ design allows more torque to be put on the fastener while reducing fastener
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 429T40 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.1|ASME B107.110-2012|Federal Specification GGG-W-641E
