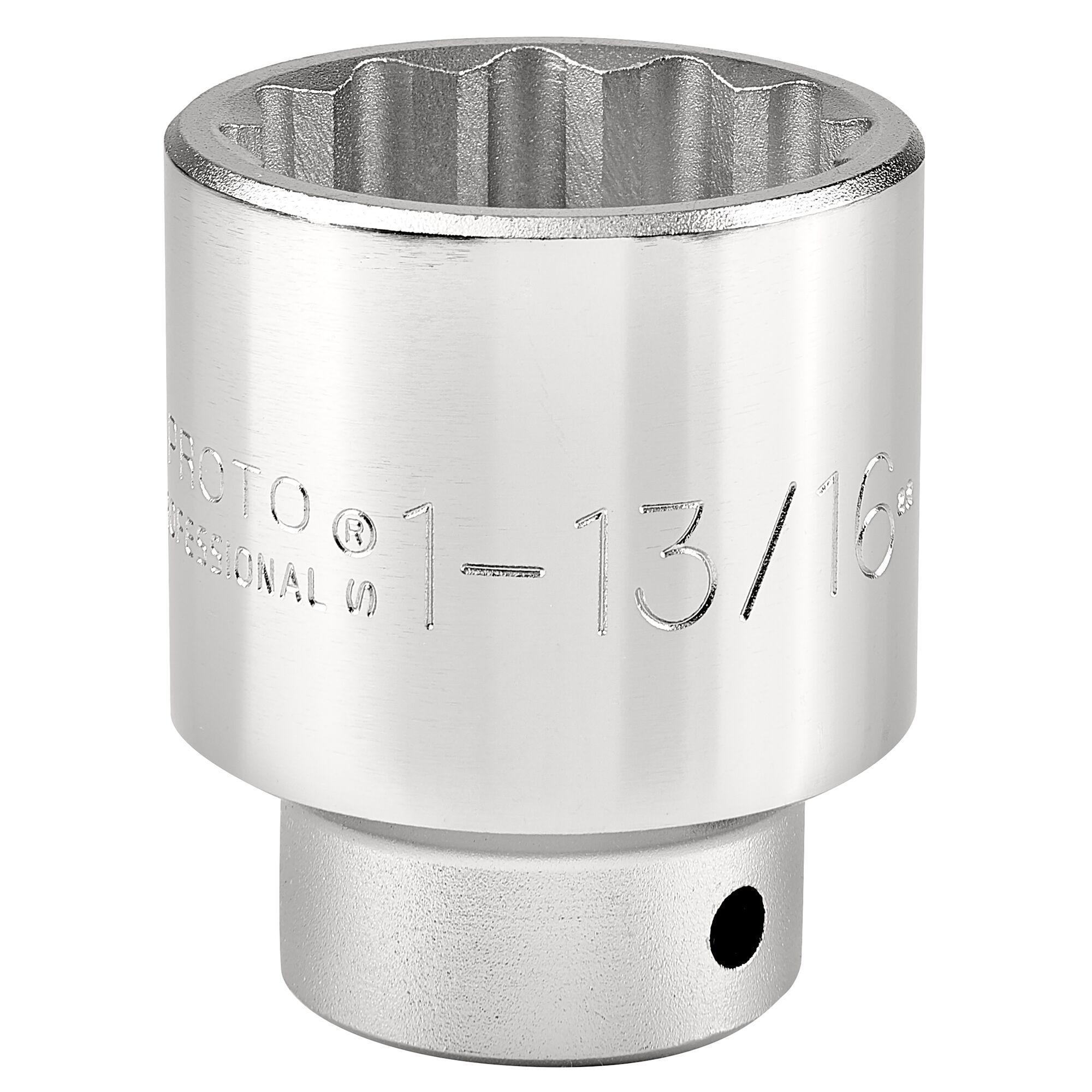

Proto Tools 1-13/16" 12-PT 3/4"-DR SOCKET PRO J-5558
Proto® TorquePlus™ J5558 Standard Length Socket, Imperial, 3/4 in Square Drive, 1-13/16 in
-
BrandProto®
-
UPC662679200503
-
Manufacturer Part NumberJ5558
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishSatin
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points12
-
Socket End Width2-9/16 in
-
Socket Size1-13/16 in
-
Opening Depth1-15/32 in
-
Drive End Width1-3/4 in
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-15/16 in
-
Overall Length2-29/32 in
- Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- Ball detent design
- TorquePlus design allows more torque to be put on the fastener while reducing fastener
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 429T32 |
-
Alternative Part Number16728672
-
UNSPSC27111704
-
IDEA Index ID16728672
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B107.1|ASME B107.110-2012|Federal Specification GGG-W-641E
