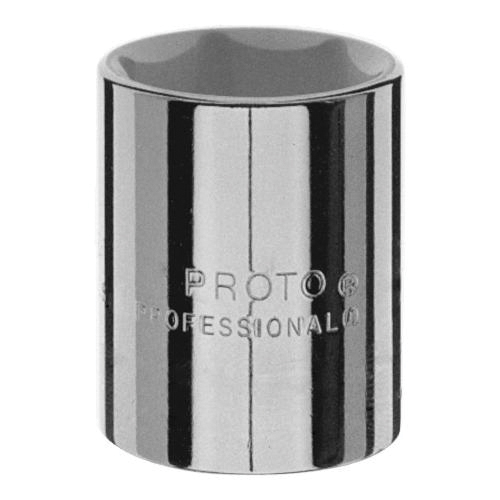

Proto Tools 1-7/16" 6-PT 1/2"-DRIVE SOCKETS PRO J-5446-H
Proto® TorquePlus™ J5446H Standard Length Socket, Imperial, 1/2 in Square Drive, 1-7/16 in
-
BrandProto®
-
UPC662679182465
-
Manufacturer Part NumberJ5446H
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Impact RatedNo
-
Number of Points6
-
Socket End Width1-59/64 in
-
Socket Size1-7/16 in
-
Opening Depth27/32 in
-
Drive End Width1-21/32 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth1-11/64 in
-
Overall Length2-1/8 in
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4204245 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012|ASME B107.1
-
