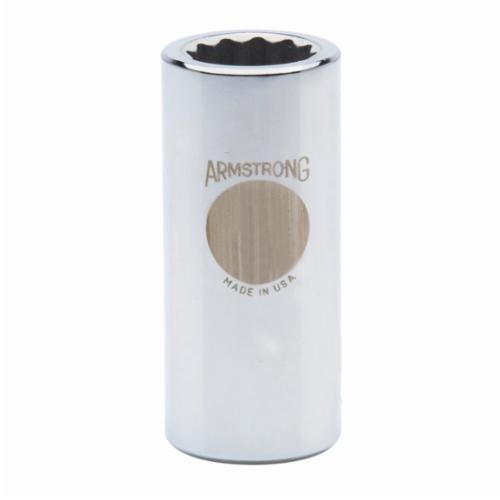

Armstrong® 13-330 Deep Length Socket, 3/4 in Square Drive, 15/16 in, 12 Points
Armstrong® 13-330 Deep Length Socket, 3/4 in Square Drive, 15/16 in, 12 Points
-
BrandArmstrong®
-
UPC781412133301
-
Manufacturer Part Number13-330
-
CountryUSA
-
Locking TypeBall
-
FinishPolished Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeDeep Length
-
Number of Points12
-
Socket End Width1.39 in
-
Socket Size15/16 in
-
Opening Depth1 in
-
Drive End Width1.39 in
-
Drive Size3/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth0.84 in
-
Overall Length3-3/8 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 93604775 |
-
UNSPSC27111704
-
Standards/ApprovalsASME B107.1-2002|US Federal Specification GGG-W-641 E
-
