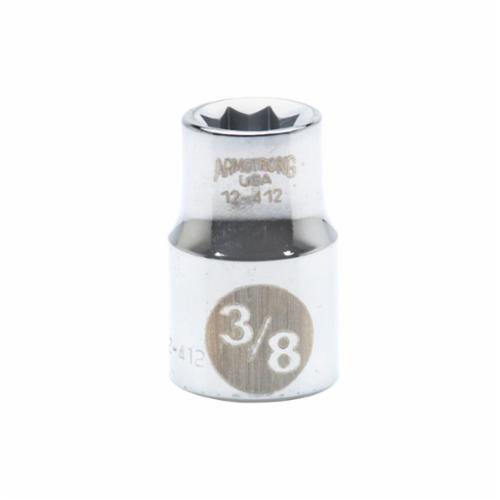

Armstrong® 12-412 Standard Length Socket, 1/2 in Square Drive, 3/8 in, 8 Points
Armstrong® 12-412 Standard Length Socket, 1/2 in Square Drive, 3/8 in, 8 Points
-
BrandArmstrong®
-
UPC781412124125
-
Manufacturer Part Number12-412
-
CountryUSA
-
Locking TypeBall
-
FinishPolished Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Number of Points8
-
Socket End Width0.678 in
-
Socket Size3/8 in
-
Opening Depth0.406 in
-
Drive End Width0.866 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Bolt Clearance Depth0.297 in
-
Overall Length1.33 in
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Unique socket retention method, cold form ball recess, provides consistent secure retention of the socket to the drive tool eliminating the possibility of either a loose fit or tight fit
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 93604262 |
-
UNSPSC27111704
-
Standards/ApprovalsASME B107.1-2002|US Federal Specification GGG-W-641 E
