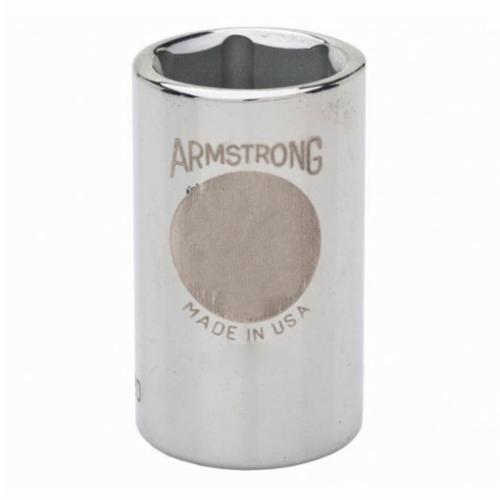

Armstrong® 12-032 Standard Length Socket, 1/2 in Square Drive, 1 in, 6 Points
Armstrong® 12-032 Standard Length Socket, 1/2 in Square Drive, 1 in, 6 Points
-
BrandArmstrong®
-
UPC781412120325
-
Manufacturer Part Number12-032
-
CountryUSA
-
Locking TypeBall
-
FinishPolished Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Number of Points6
-
Socket End Width1.307 in
-
Socket Size1 in
-
Opening Depth0.846 in
-
Drive End Width1.307 in
-
Drive Size1/2 in
-
Drive TypeSquare
-
Overall Length1.614 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Unique socket retention method, cold form ball recess, provides consistent secure retention of the socket to the drive tool eliminating the possibility of either a loose fit or tight fit
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
-
UNSPSC27111704
-
Standards/ApprovalsASME B107.1-2002|US Federal Specification GGG-W-641 E
