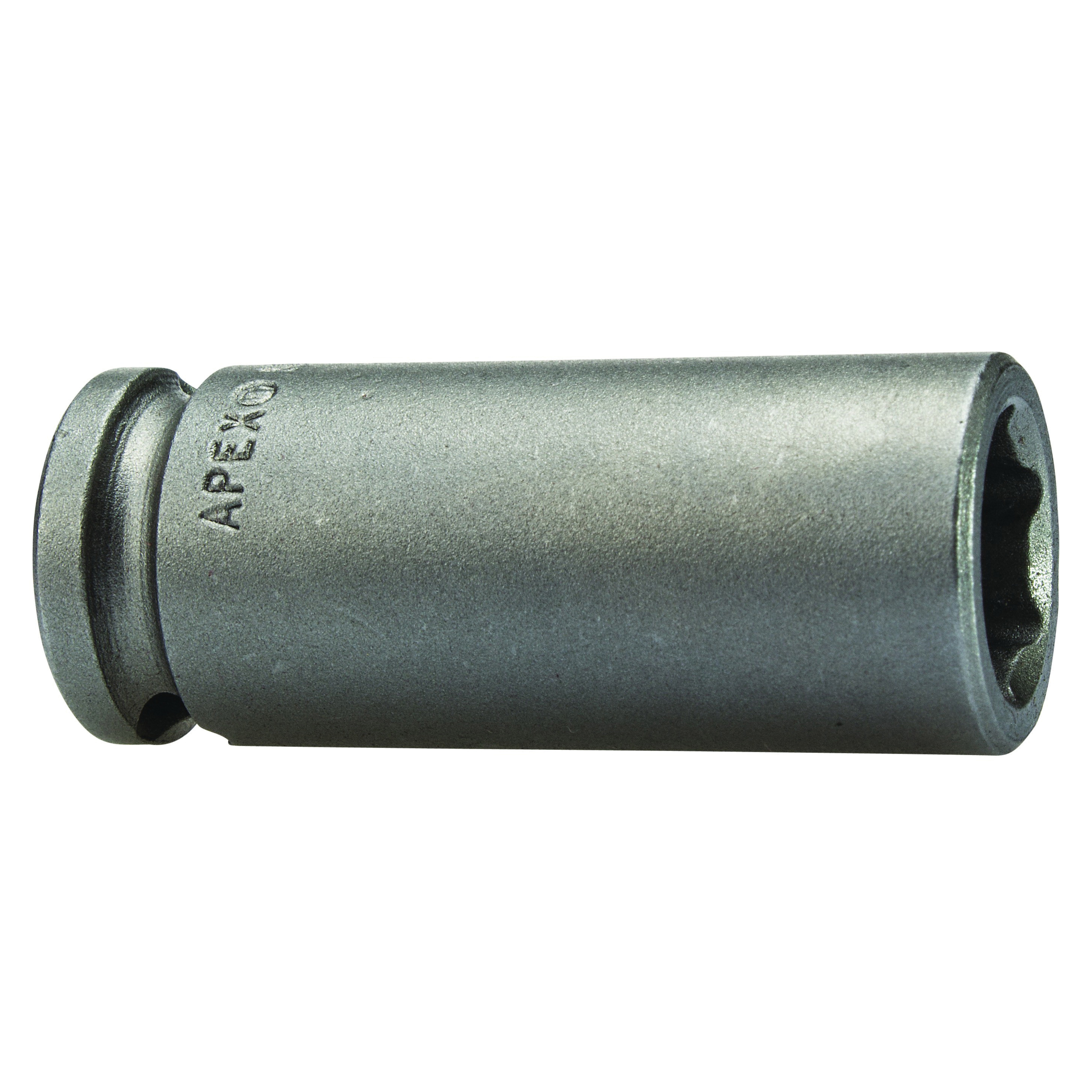

Apex® MB-10MM23 Long Length Magnetic Socket, 3/8 in Square Drive, 10 mm Hex Socket, 6 Points
Apex® MB-10MM23 Long Length Magnetic Socket, 3/8 in Square Drive, 10 mm Hex Socket, 6 Points
-
BrandApex®
-
UPC697099070948
-
Manufacturer Part NumberMB-10MM23
-
CountryUSA
-
MaterialHigh Carbon Alloy Steel
-
Measurement SystemMetric
-
TypeLong Length Magnetic
-
Impact RatedYes
-
Number of Points6
-
Socket End Width16.8 mm
-
Socket Size10 mm
-
Socket TypeHex
-
Opening Depth6.4 mm
-
Drive End Width19.1 mm
-
Drive Size3/8 in
-
Drive TypeSquare
-
Overall Length2 in
- High-Carbon Alloy Steel and Proprietary Heat Treat Process Yields Greater Strength and Longer Life
- Cutting-edge Machining Process Allows Apex, Resulting in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
- Better and more consistent fit to fasteners leads to better torque transfer
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 165GL4 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.17, B107.112|DIN 475
-
