Proto Tools 9-MM 6-PT 1/4"-DRIVE DEEP SOCKETS PRO J-4709-L-M

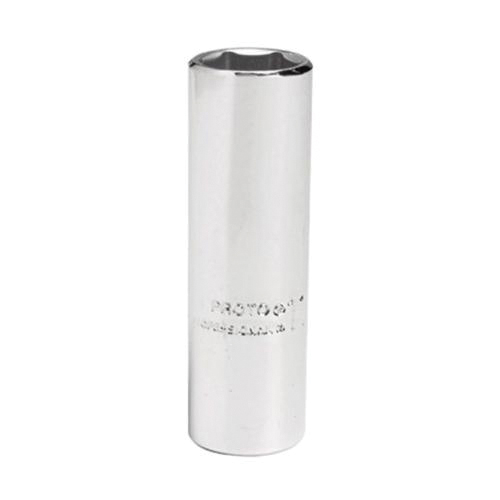

Proto® TorquePlus™ J4709LM Deep Length Socket, Metric, 1/4 in Square Drive, 9 mm
-
BrandProto®
-
UPC662679140304
-
Manufacturer Part NumberJ4709LM
-
CountryUSA|Canada
-
Locking TypeBall
-
FinishFull Polished
-
MaterialAlloy Steel
-
Measurement SystemMetric
-
TypeDeep Length
-
Impact RatedNo
-
Number of Points6
-
Socket End Width12.7 mm
-
Socket Size9 mm
-
Opening Depth15.5 mm
-
Drive End Width12.7 mm
-
Drive Size1/4 in
-
Drive TypeSquare
-
Bolt Clearance Depth29.2 mm
-
Overall Length50.5 mm
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | KP4201725 |
-
UNSPSC27111704
-
Package DescriptionEACH
-
Standards/ApprovalsASME B107.110-2012
-
