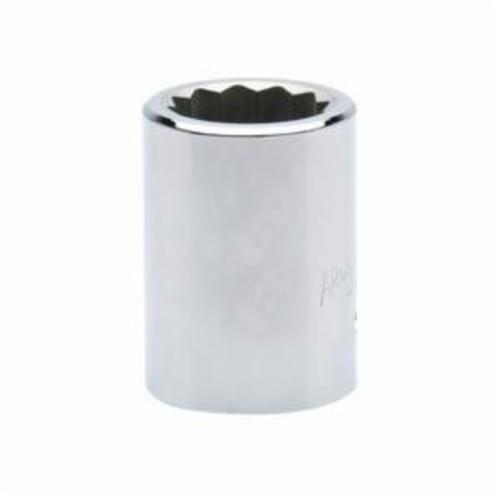

Armstrong® 14-136D Standard Length Socket, 1 in, 1-1/8 in, 12 Points
Armstrong® 14-136D Standard Length Socket, 1 in, 1-1/8 in, 12 Points
-
BrandArmstrong®
-
UPC781412141368
-
Manufacturer Part Number14-136D
-
CountryUSA
-
Locking TypeBall
-
FinishPolished Chrome
-
MaterialHigh Alloy Steel
-
Measurement SystemImperial
-
TypeStandard Length
-
Number of Points12
-
Socket End Width1.693 in
-
Socket Size1-1/8 in
-
Opening Depth1.094 in
-
Drive End Width1.693 in
-
Drive Size1 in
-
Overall Length2.265 in
- Radius corner design engages the flats of the fastener, not the corners, providing up-to 15 to 20% more torque while reducing fastener rounding, enhancing the turning of worn fasteners
- EYE-D™ markings optimize size visibility, also providing SAE/metric differentiation
- Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
- Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
-
UNSPSC27111704
-
Standards/ApprovalsASME B107.1-2002|US Federal Specification GGG-W-641 E
-
Warranty1 Year
