Proto Tools 3/4"-DRIVE SOCKET RETAINING RINGS PRO J-RR-07523

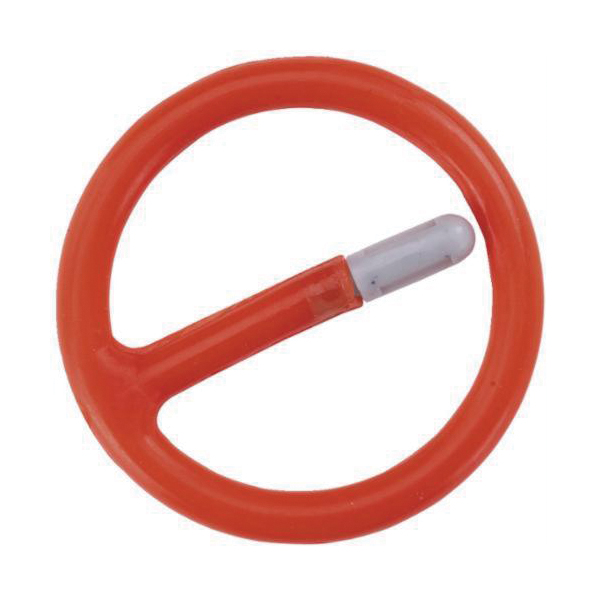

Proto® JRR07523 Crush Gauge Retaining Ring, 3/4 in Drive, For Use With Impact Socket, Resin/Steel, Red, Plastic Coated
-
BrandProto®
-
UPC662679978013
-
Manufacturer Part NumberJRR07523
-
CountryUSA|Canada
-
FinishPlastic Coated
-
MaterialResin/Steel
-
ColorRed
-
TypeCrush Gauge
-
Dimensions3/16 in H x 1-5/8 in W
-
Drive Size3/4 in
-
Overall Length1-5/8 in
-
Suitable For Use WithImpact Socket
- Retaining rings are used to help secure sockets onto drive tools
- They are not intended to bear any load
- The rotational forces are between the drive tool and the socket
- Designed with a resin crush gauge to help identify when to replace worn sockets
- The resin crush gauge on the pin helps indicate when a socket is excessively worn and should be replaced
- Drive tool and socket should line up when in use and should not pinch the crush gauge
- Cracked sockets and or worn drive tools cause each other to turn excessively in relation to each other
- This action pinches the small fin or the crush gauge on these retaining rings
- If the crush gauge is pinched, it is an indication that the socket and or the drive tool need to be replaced
- 1-piece construction, no loose parts
- Pin is made of resin which allows the material to compress without breaking
- Part numbers are embossed on the rings near the point at which the pin and ring meet
- 1-7/16 in groove
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 04568150 |
-
UNSPSC27112832
-
WarrantyLimited Lifetime
