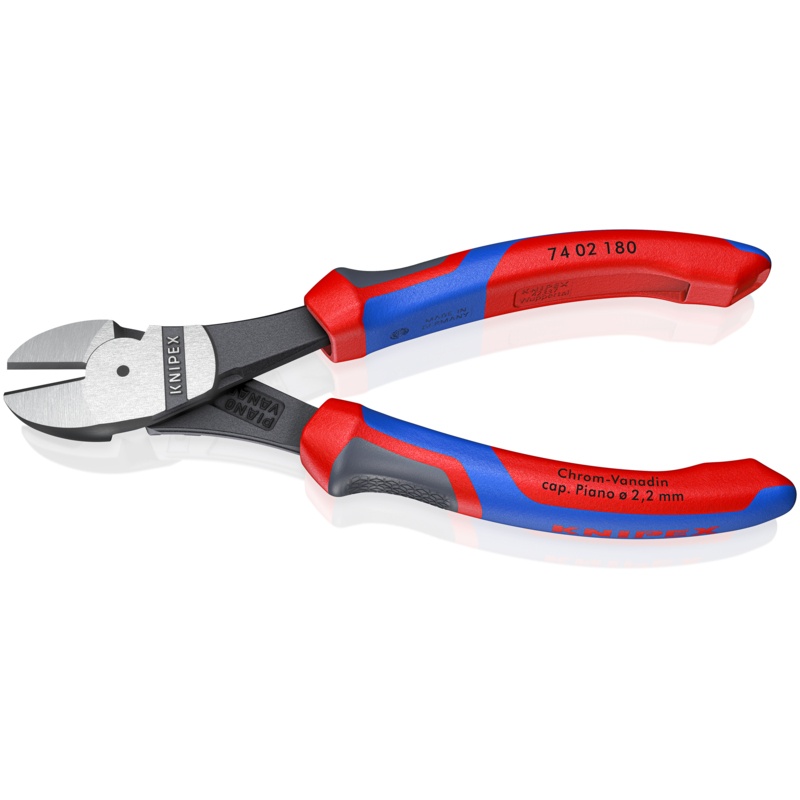

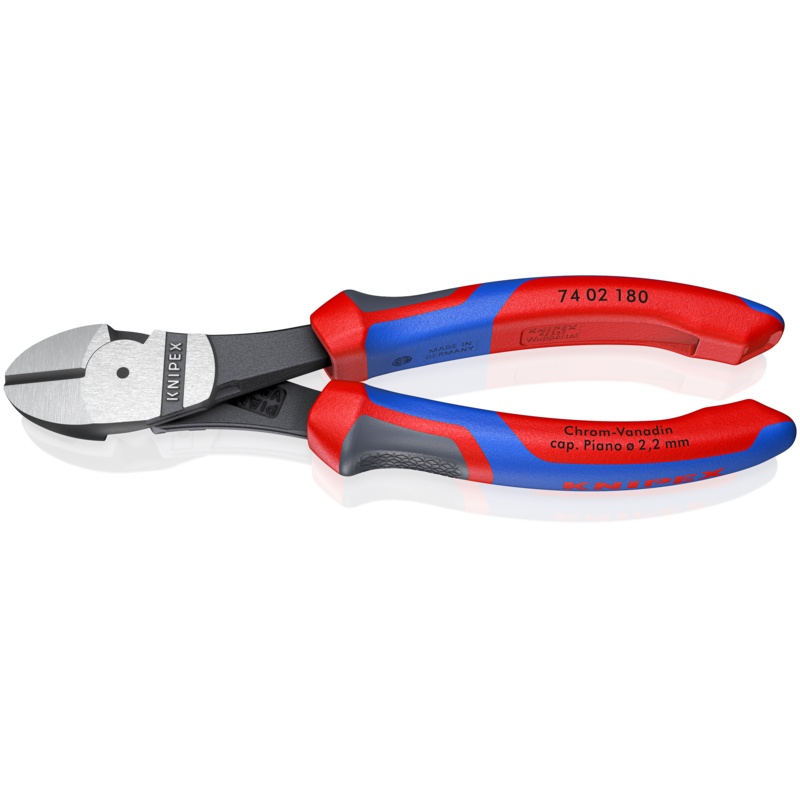

Knipex® 74 02 180 74 02 High Leverage Cutting Plier, 2.2 mm Dia Piano, 2.7 mm Dia Hard, 3.8 mm Dia Medium Hard Nominal, 180 mm OAL, Bevel/Diagonal Cut, DIN ISO 5749
-
BrandKnipex®
-
UPC843221001957
-
Manufacturer Part Number74 02 180
-
CountryUSA|Canada
-
FinishAtramentized
-
ColorRed/Blue
-
TypeHigh Leverage
-
Handle MaterialChrome Vanadium Steel
-
Handle TypeMulti-Component Grip
-
Nominal Capacity2.2 mm Dia Piano, 2.7 mm Dia Hard, 3.8 mm Dia Medium Hard
-
Series74 02
-
Cut TypeBevel/Diagonal
-
Specifications MetDIN ISO 5749
-
Jaw MaterialVanadium Steel
-
Overall Length180 mm
- 20% less effort required compared to conventional diagonal cutters of the same length
- Forged-on axle for heavy duty work
- For very tough, continuous use
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges induction hardened approx. 64 HRC cut several types of wire including piano wire
- Chrome vanadium heavy duty steel, forged, multi-stage oil hardened
- Forged-in axle joint
-
UNSPSC27112114
-
Specification Sheet
-
Owners/User Manual
