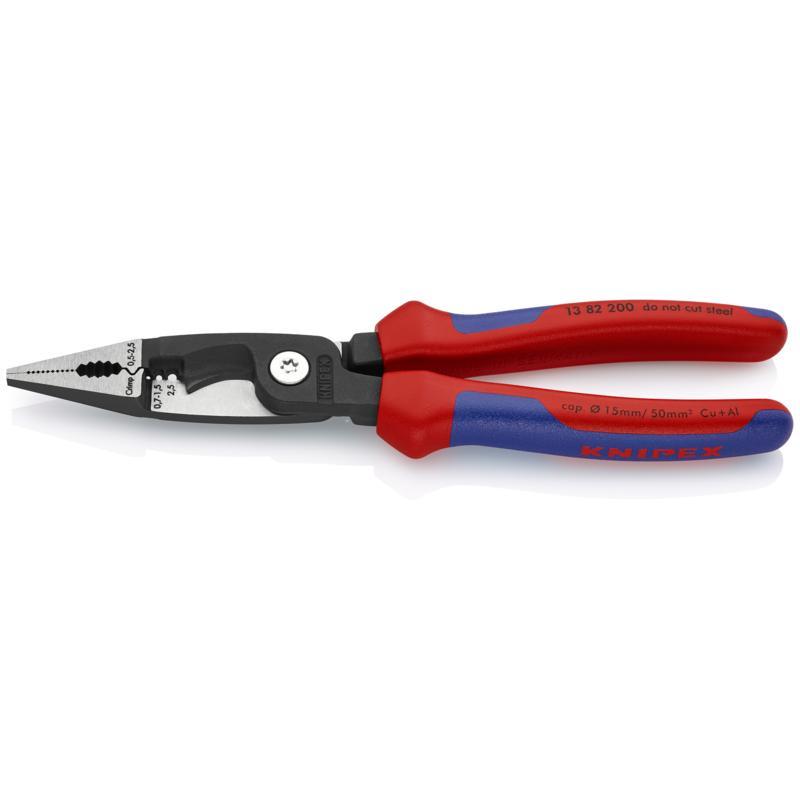

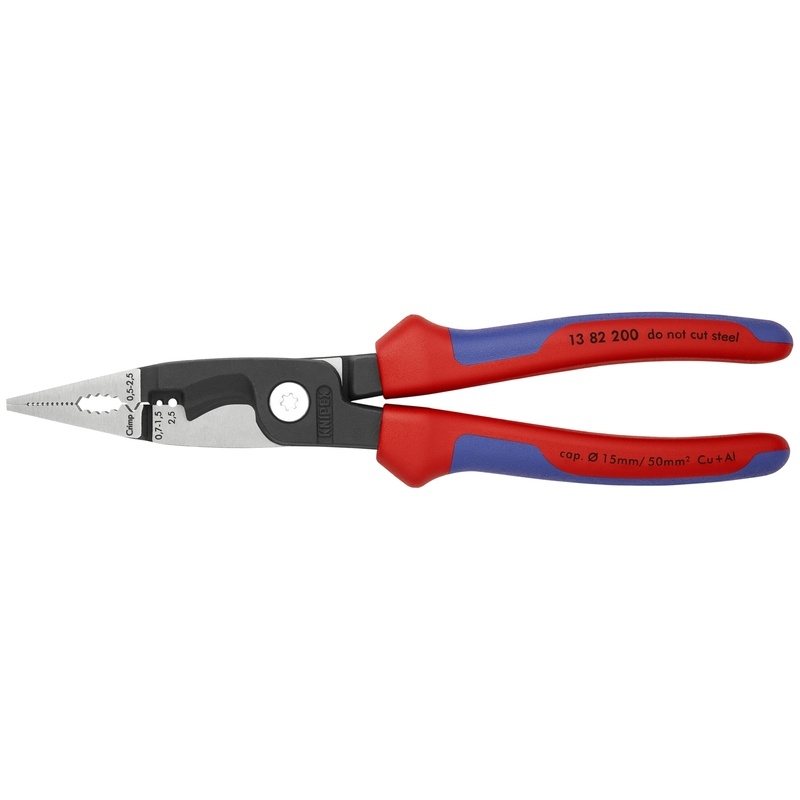

Knipex® 13 82 200 SB Electrical Installation Plier, Steel Jaw, Polished Jaw Surface, 200 mm OAL
Knipex® 13 82 200 SB Electrical Installation Plier, Steel Jaw, Polished Jaw Surface, 200 mm OAL
-
BrandKnipex®
-
UPC843221019518
-
Manufacturer Part Number13 82 200 SB
-
CountryUSA|Canada
-
FinishAtramentized
-
ColorBlack
-
Handle MaterialTool Steel
-
Handle TypeMulti-Component Grip
-
Series13 82
-
Jaw MaterialSteel
-
Jaw SurfacePolished
-
Overall Length200 mm

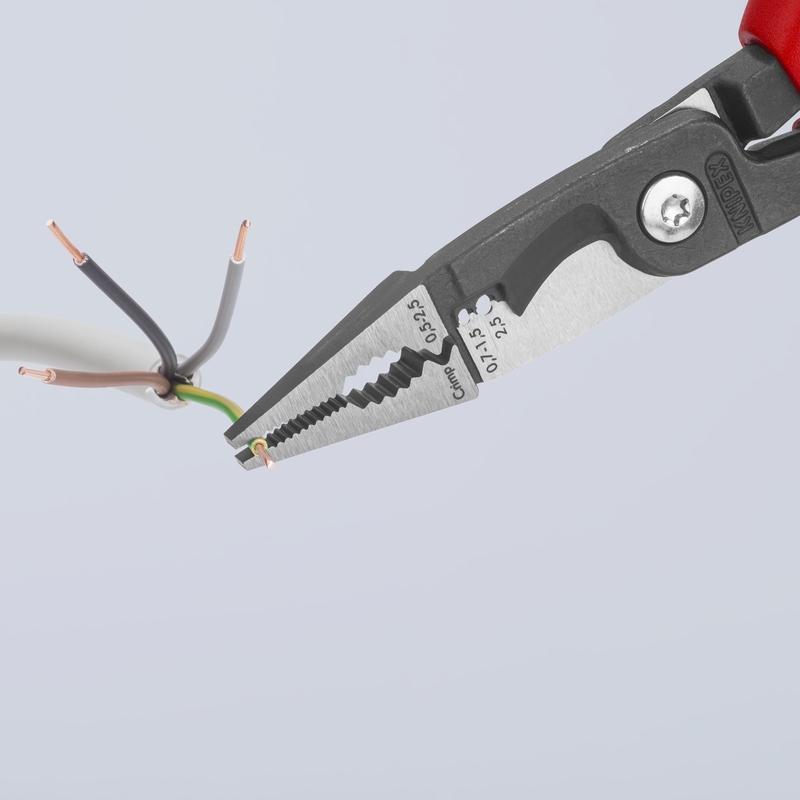

- 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

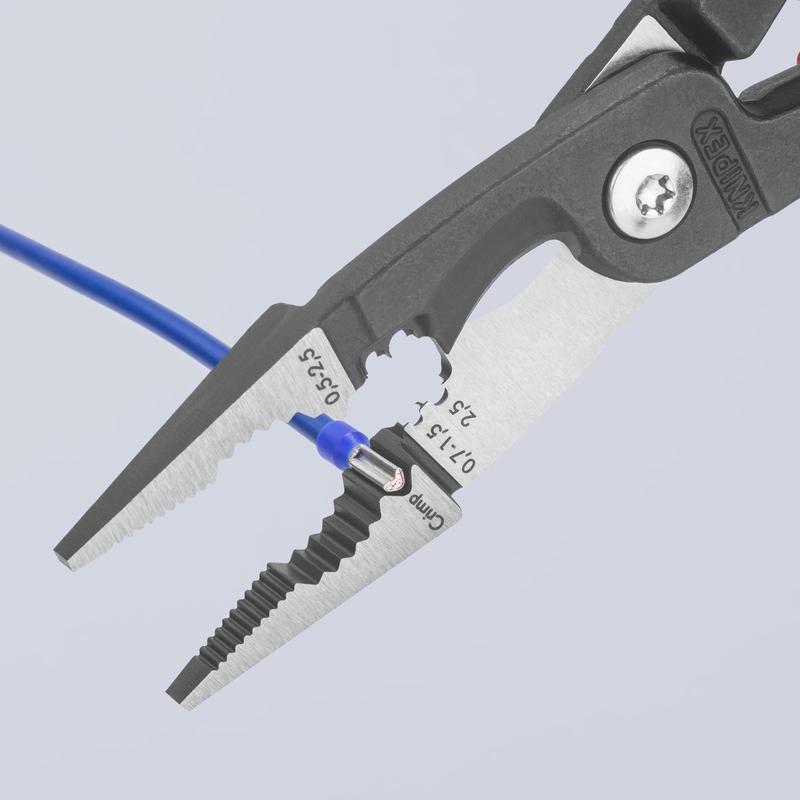

- Crimp die for end sleeves (ferrules) 0.5 to 2.5 sq-mm
- Clear cut outside edge on the jaw for working on flush mounted junction boxes and deburring feed-through holes

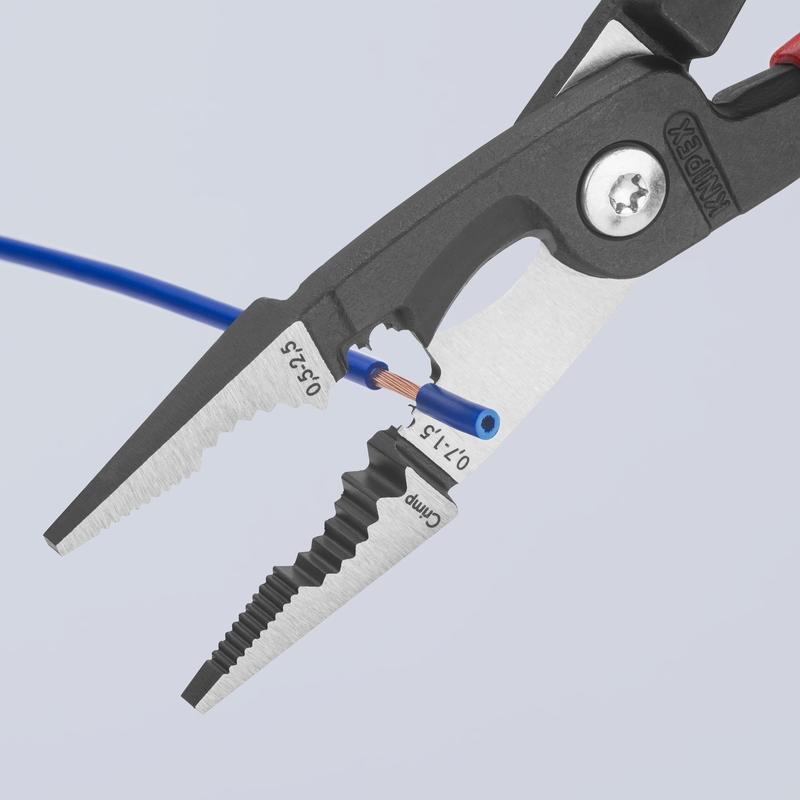

- Stripping holes for 0.75 to 1.5 sq-mm and 2.5 sq-mm

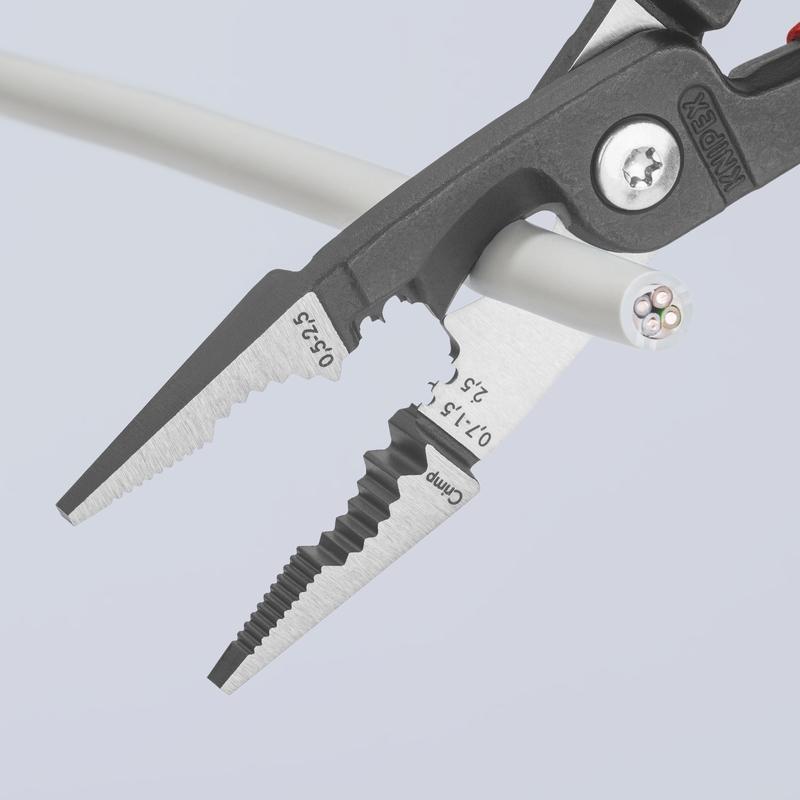

- Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 19/32 in diameter (5 x 2.5 sq-mm/Dia 5 mm)
- Slim head dimensions for easier access
- Bolted joint - precise, zero-backlash operation of pliers
- High-grade special tool steel, forged, multi-stage oil hardened
| Competitor Name | Cross-Reference Number |
|---|---|
| Amazon | B00NOPNRGC |
| Fastenal | 2161069 |
-
UNSPSC27112139
-
Alternative Part Number10847395
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
