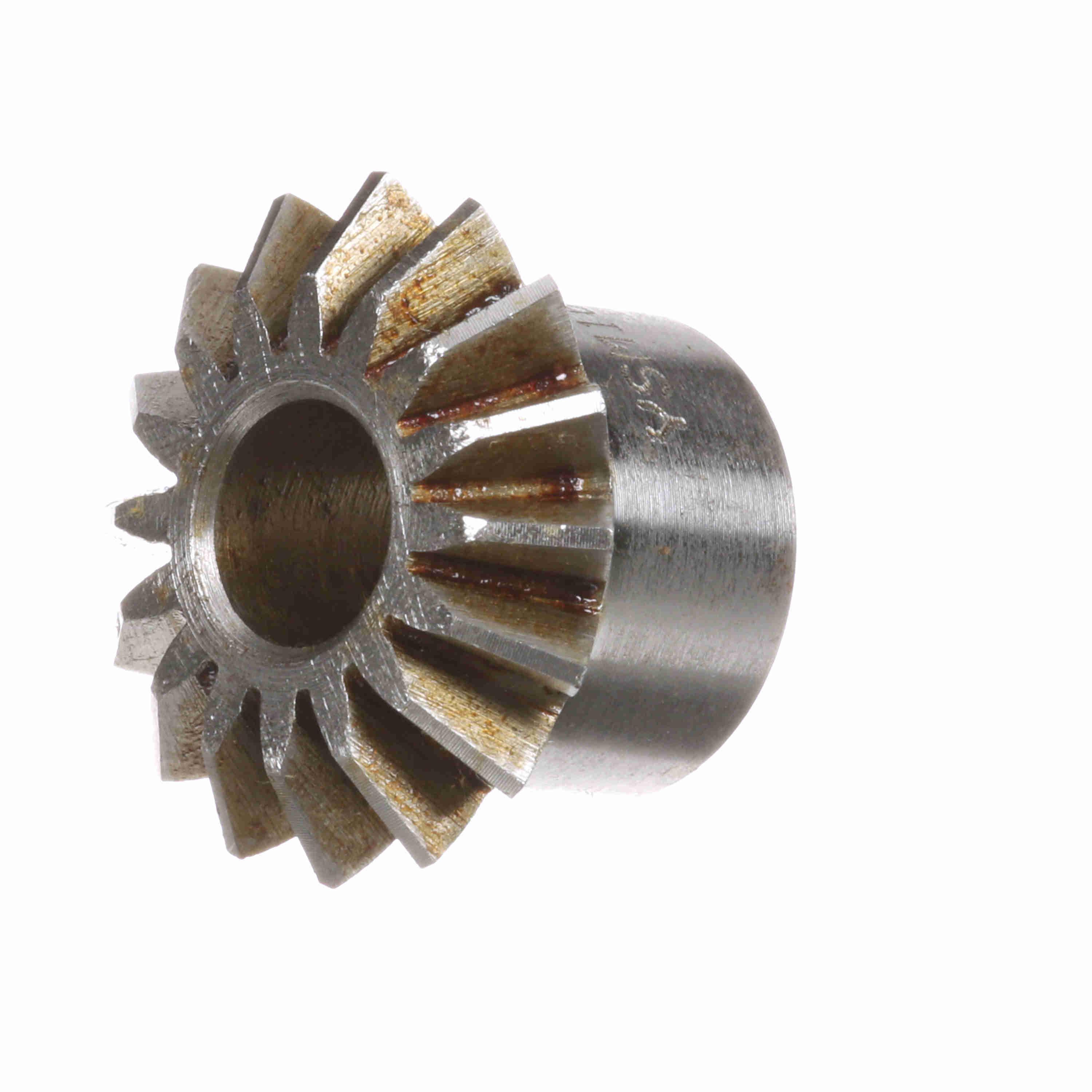

Browning® 1229087 Minimum Plain Bore Straight Tooth Miter Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 16 Teeth, 1 in Dia Pitch, 0.22 in W Face, 3/8 in Dia Bore, Unhardened Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289146680
-
Manufacturer Part Number1229087
-
CountryUSA
-
Face Width0.22 in
-
Pitch Diameter1 in
-
MaterialUnhardened Steel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Straight Tooth
-
Hub Diameter3/4 in
-
Hub Projection7/16 in
-
Diametral Pitch16
-
Number of Teeth16
-
Outside Diameter1.09 in
-
Bore Diameter3/8 in
-
Overall Length3/4 in
- Browning Gears are rated in accordance with AGMA standards
-
Alternative Part NumberYSM16B16
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
